Indoor Unit Wiring Diagrams

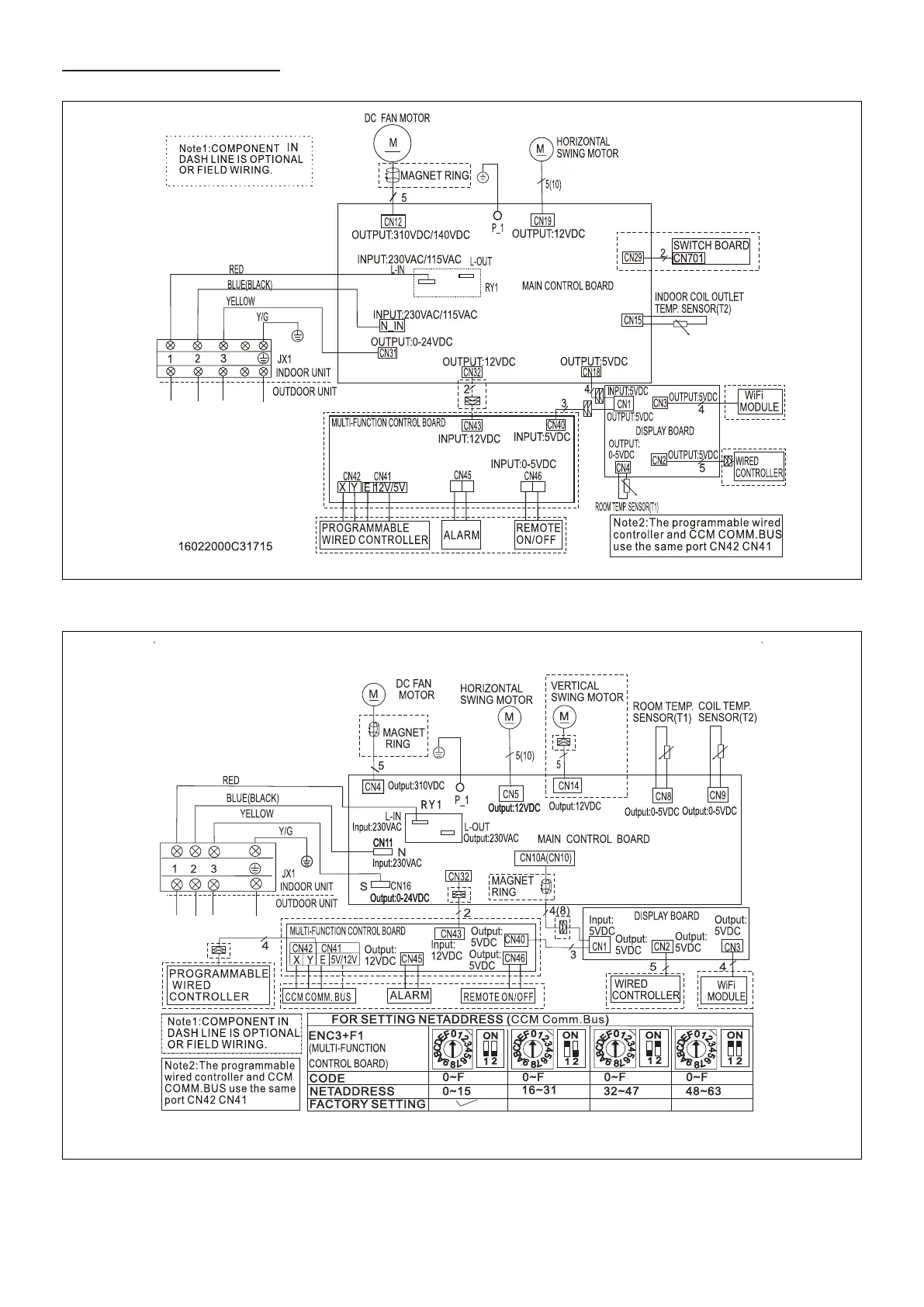

Figure 30. MWCB 09K,12K and 18K Indoor Unit Wiring Diagram (115 and 208/230VAC)
16022000C27182
Figure 31. MWCB 24K - 208/230VAC Indoor Unit Wiring Diagram
