Outdoor Unit Wiring Diagrams

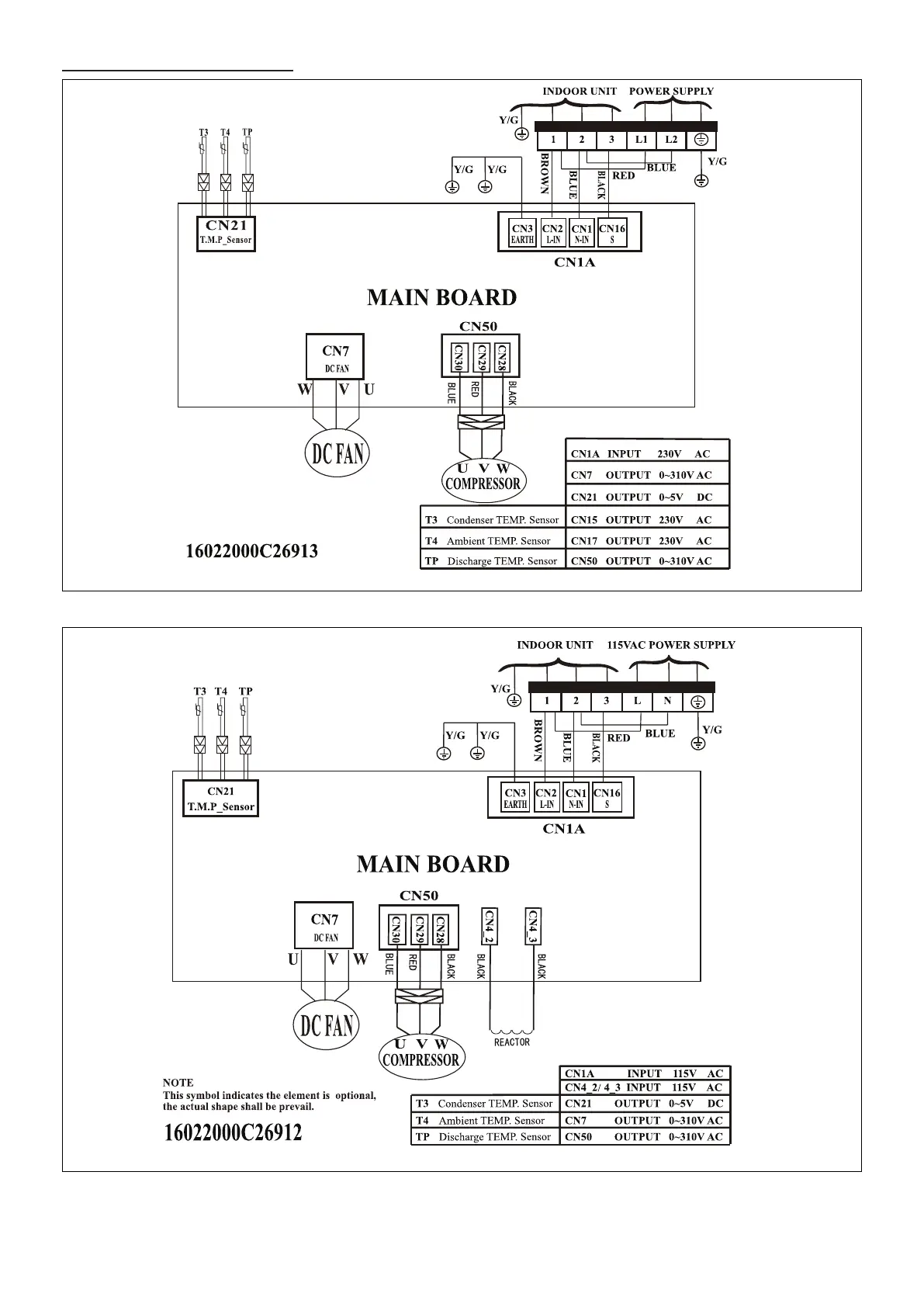

Figure 32. MCB 09, 12K and 18K - 208/230VAC Outdoor Unit Wiring Diagram
Figure 33. MCB 12K - 115VAC Outdoor Unit Wiring Diagram
