Lennox SIGNATURE SLP99UH110XV60C User Manual

Page 12

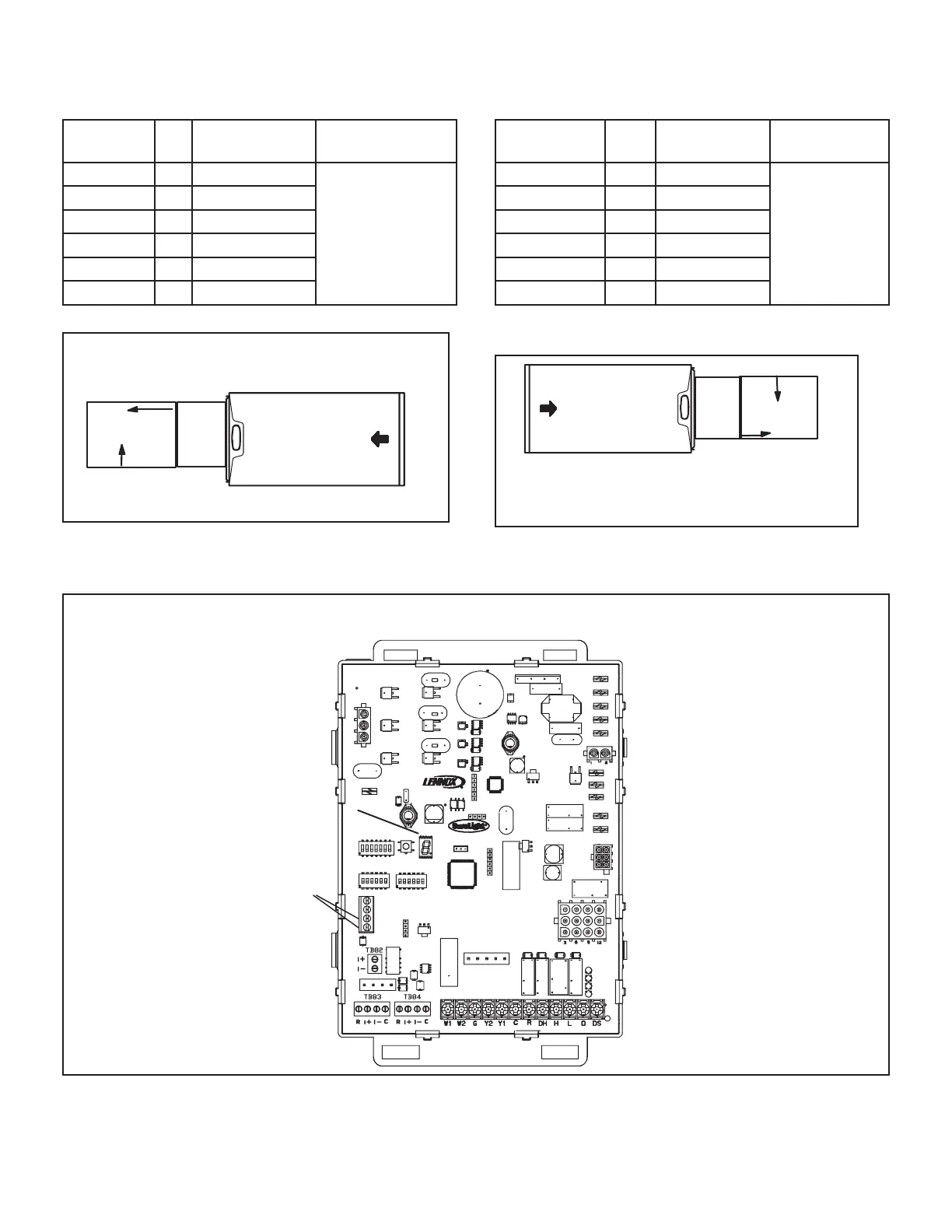

TABLE 3
Discharge Air Temperature Sensor
Location Horizontal Left
SLP99UH
Model
“a” “b”
Mounting
Surface
070XV36B 5” Center
Plenum Duct
090XV36C 3” 4” from bottom
090XV48C 2” 7” from bottom
090XV60C 4” 3” from bottom
110XV60C 3” 8” from bottom
135XV60D 2” 7” from bottom
a
b
Coil
Plenum
Discharge Air Temperature Sensor Location
Horizontal Left
AIR FLOW
Horizontal Left
FIGURE 16
TABLE 4
Discharge Air Temperature Sensor
Location Horizontal Right
SLP99UH
Model
“a” “b”
Mounting
Surface
070XV36B 5” Center
Plenum Duct
090XV36C 2” 8” from bottom
090XV48C 3” Center
090XV60C 3” 7” from top
110XV60C 3” Center
135XV60D 2” 7” from top
Coil
Plenum
b
a
Horizontal Right
AIR FLOW
Discharge Air Temperature Sensor Location
FIGURE 17
Discharge Air Temperature Sensor Field Wiring
+
DISCHARGE AIR
TEMPERATURE
SENSOR
TERMINALS
W915
W951
W914
EAC
HUM
7 SEGEMENT LED
FIGURE 18
