Lennox SLP98DF090XV48C

Page 35

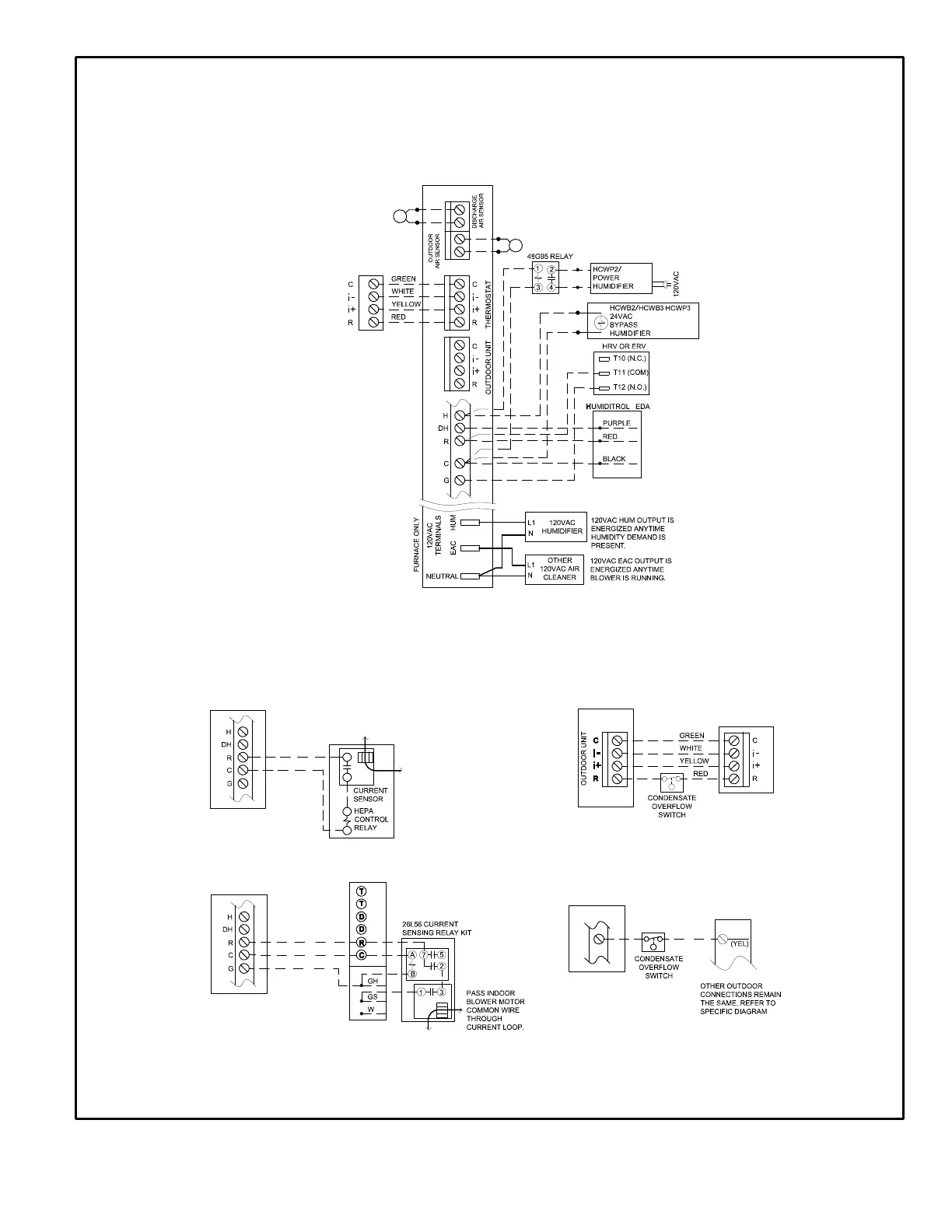

FIGURE 21
Optional Accessories for use with any icomfort Touch System
NOTE: 24V UV LIGHT
APPLICATIONS
Furnace transformer will not have ad
equate va to power 24v UV light ap
plications. An additional transformer
for UV light applications is required.
icomfort Toucht
THERMOSTAT
DISCHARGE AIR SENSOR
NOTE: icomfortt THERMOSTAT SENSES HUMIDITY & CONTROLS
24V “H” OUTPUT (& 120V “H” OUTPUT) TO CYCLE HUMIDIFIER
BASED ON DEMAND. NO OTHER CONTROL OR HUMIDISTAT
REQUIRED.
OPTIONAL OUTDOOR AIR SENSOR FOR USE WITH HU
MIDIFIER (IF NOT ALREADY IN THE SYSTEM FOR OTHER
FUNCTIONS. BUILT INTO ALL icomfortt OUTDOOR UNITS).
icomfortt-
ENABLED
SLP98DFV
FURNACE
HEPA BYPASS FILTER
X2680 HEPA
INTERLOCK KIT
PASS INDOOR BLOWER
MOTOR COMMON WIRE
THROUGH CURRENT LOOP.
SEE HEPA INTERLOCK KIT
FOR INSTALLATION DE
TAILS
LVCS VENTILATION
CONTROL SYSTEM
SEE LVCS VENTILATION
INSTRUCTIONS FOR
DAMPER & SENSOR WIRING
icomfortt- ENABLED
OUTDOOR AIR
CONDITIONING OR
HEAT PUMP UNIT
NON-COMMUNICATING
1 OR 2 STAGE AC OR HP UNIT
icomfortt-
ENABLED
SLP98DFV
FURNACE
icomfortt-
ENABLED
SLP98DFV
FURNACE
icomfortt-
ENABLED
SLP98DFV
FURNACE
icomfortt-
ENABLED
SLP98DFV
FURNACE
(C)
(C)
(disables out
door unit only)
