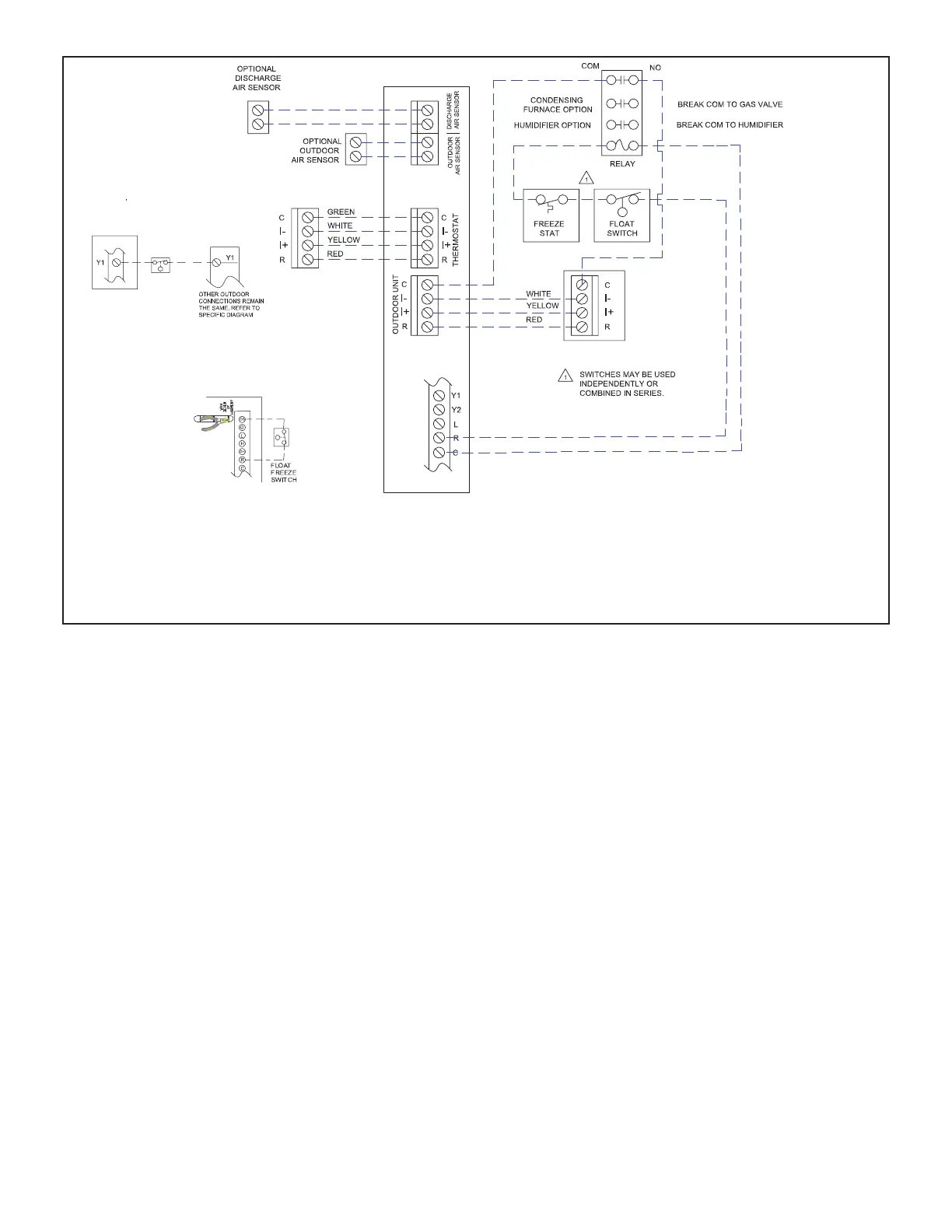

CUT*
R-DS
W914
DS
R
LENNOX
COMMUNICATING
OUTDOOR UNIT
LENNOX COMMUNICATING
INDOOR UNIT
LENNOX COMMUNICATING
THERMOSTAT OR DAMPER
CONTROL MODULE
CONVENTIONAL TERMINALS
FLOAT
SWITCH
LENNO
X COMMUNICATING
INDOOR UNIT
CONVENTIONAL
OUTDOOR UNIT
(1 OR 2 STAGE)
LENNOX COMMUNICATING FURNACE
EL296V, SL280V, SL280VN, SL297V, SLP99V
cutting DS to R will not cause
communication interuption
or error code
FIGURE 22
