Lennox SLP99UHV Series

Page 19

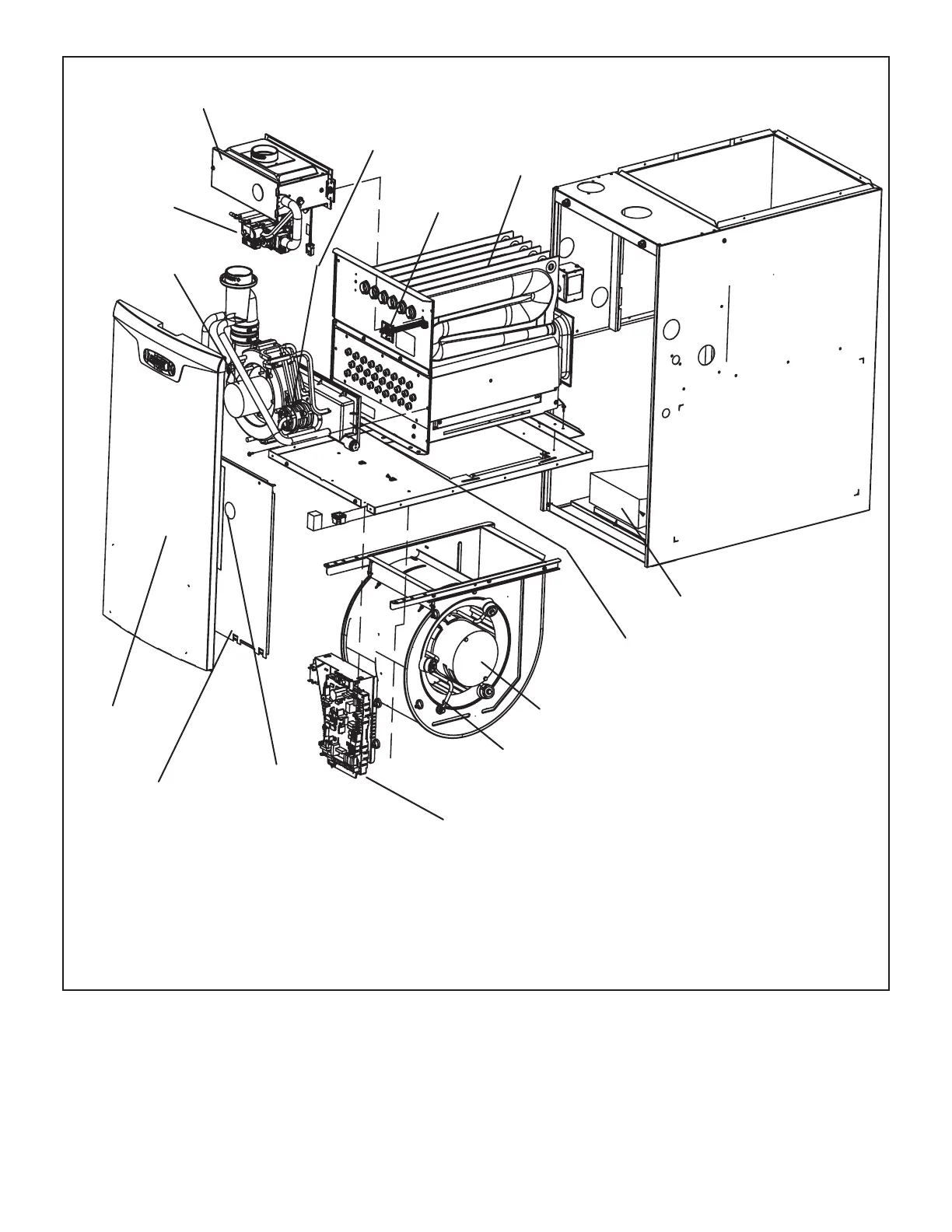

BURNER BOX ASSEMBLY
VARIABLE
CAPACITY
GAS VALVE
HEAT EXCHANGER
A
CCESS PANEL
CONTROL BOX
(includes variable capacity integrated control
transformer, circuit breaker and door switch)
VARIABLE SPEED BLOWER MOTOR
BAG ASSEMBLIES
(shipping location)
COLD END HEADER
BOX
PRESSURE SWITCHES
VARIABLE SPEED
COMBUSTION AIR
INDUCER
INNER BLOWER
ACCESS PANEL
SIGHT GLASS
PRIMARY LIMIT
SHIPPING BLOCK
(-135 UNITS ONLY)
FIGURE 1
