TP SERIES

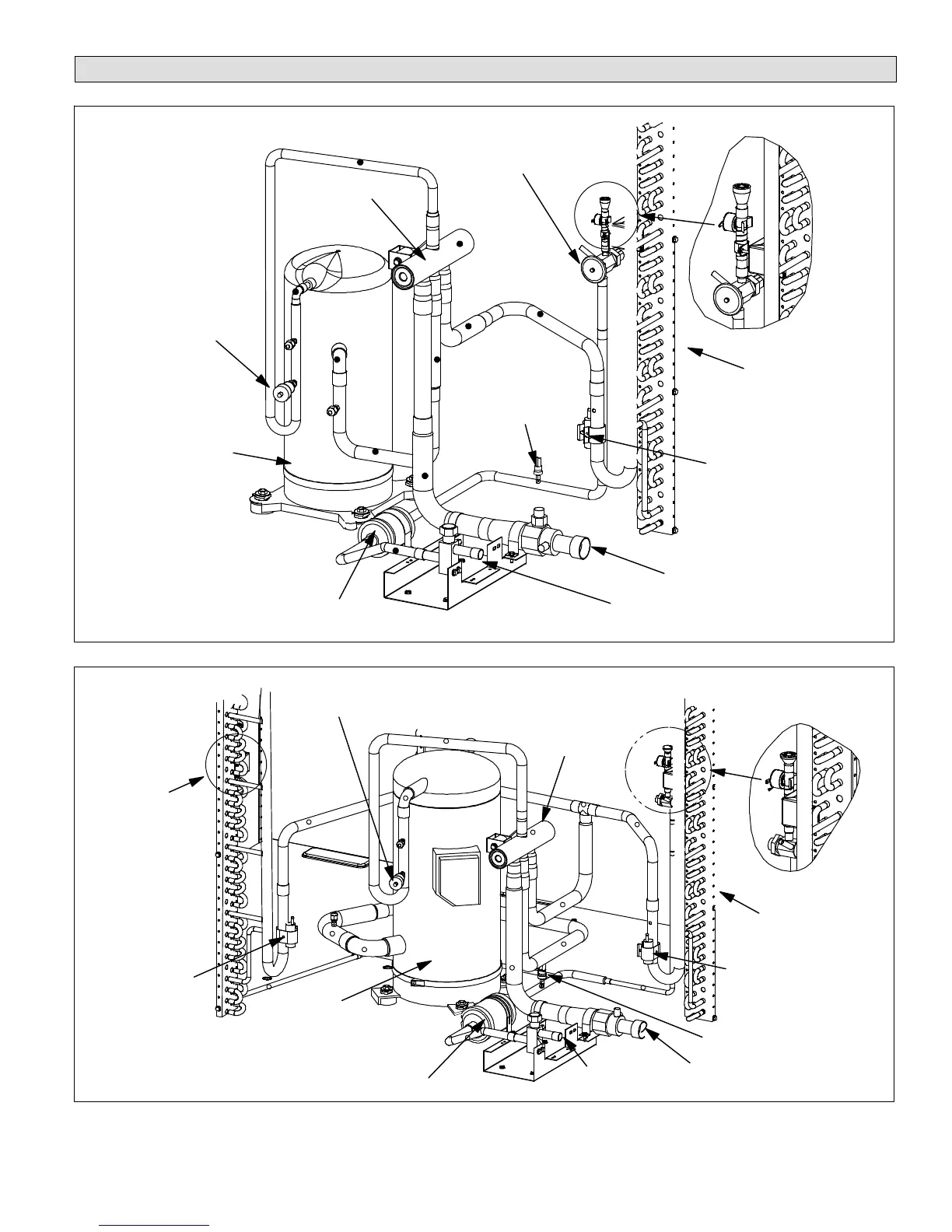

Unit Plumbing Parts Arrangement
TPA090S4S
SUCTION LINE SERVICE
VALVE
LIQUID LINE SERVICE
VALVE
COMPRESSOR
REVERSING
VALVE
LIQUID LINE BI-FLOW DRIER
COIL
HIGH PRESSURE
SWITCH (S4)
LOSS-OF-CHARGE
SWITCH (S24)
CTXV SENSING BULB
CHECK EXPANSIVE VALVE
(CTXV)
DEFROST SWITCH
LOCATION (S6)
TPA120S4S
LIQUID LINE BI-FLOW DRIER
LOSS OF CHARGE SWITCH
(S24)
COMPRESSOR
HIGH PRESSURE
SWITCH (S4)
SUCTION LINE SERVICE
VALVE
LIQUID LINE SERVICE
VALVE
COIL
REVERSING
VALVE
CTXV SENSING BULB
CTXV SENSING BULB
DEFROST SWITCH
LOCATION (S6)
DEFROST SWITCH
LOCATION (S9)
