TP − 3 to 5 Ton High−Efficiency, R−410A Heat Pump / Page 7
LOW AMBIENT CONTROL Option (Down to 0°F)
Order one each: Speed Control Kit, Weatherproof Kit, Outdoor Fan Motor and Capacitor
Model No. TPA036H4
TPA042H4 TPA048H4 TPA060H4
Speed Control Kit X5867 S S S S
Weatherproof Kit 56N41 S S S S
Motor
1/2 HP − 230V 69H75 S S S S
460V 69H76 S S S S
Capacitor with mounting bracket 53H06 S S S S
OUTDOOR SOUND DATA
1
Unit
Model No
Octave Band Sound Power Levels dBA, re 10
−12
Watts
Center Frequency − HZ
1
Sound
Ratin
g
M
o
d
e
l
N
o.
125
250 500 1000 2000 4000 8000
Rating
Number (dB)
TPA036H4 78.5 77.5 77.5 74.5 69.5 63.5 61.5 79
TPA042H4 76.5 78 78.5 73.5 69.5 63.5 58.5 79
TPA048H4 75.5 78 78.5 75 70 63.5 58.5 80
TPA060H4 75 77.5 77.5 75.5 70 65 65 80
NOTE − the octave sound power data does not include tonal correction.
1
Tested according to ARI Standard 270-95 test conditions.

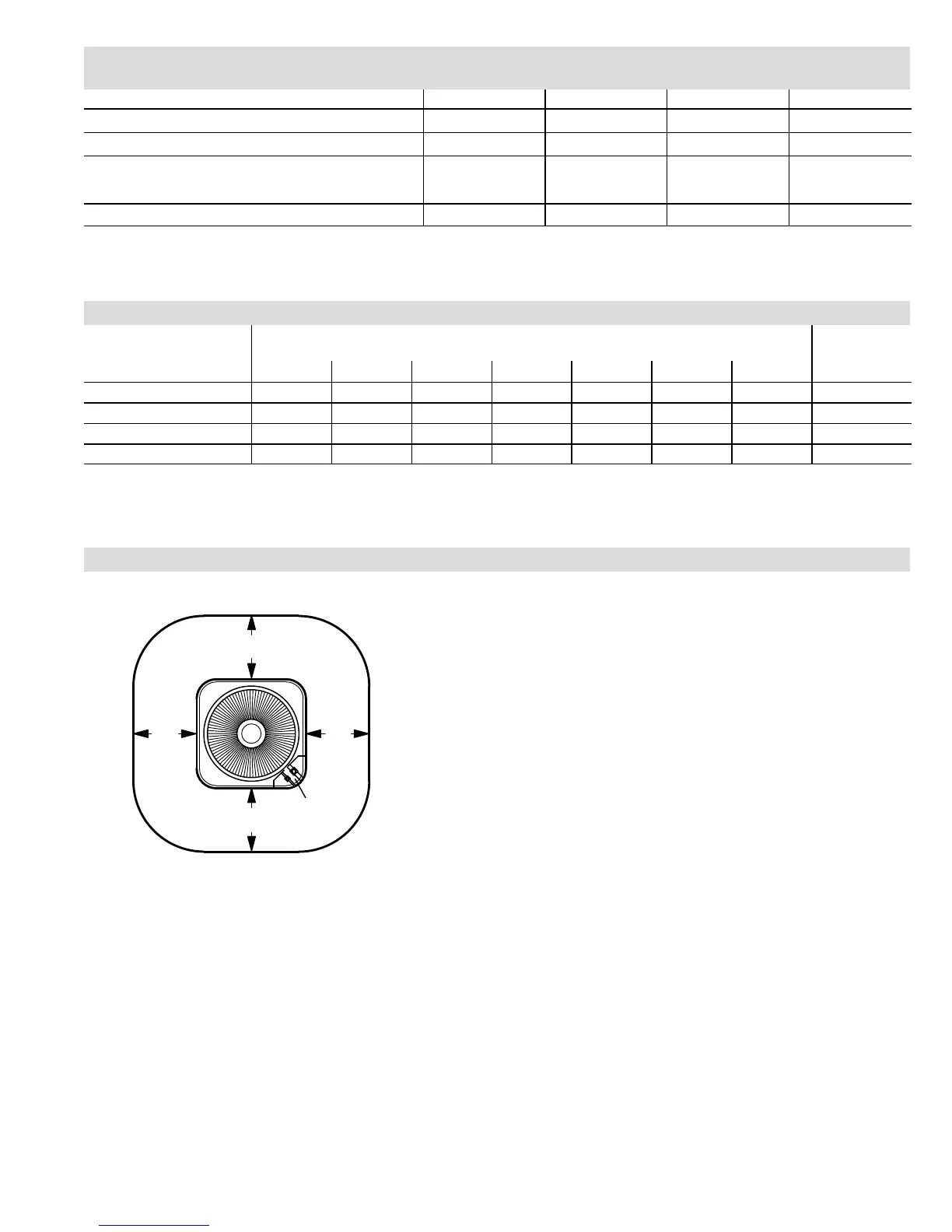

INSTALLATION CLEARANCES − INCHES (MM)
NOTES:
Service clearance of 30 in. (762 mm) must be maintained on one of
the sides adjacent to the control box.
Clearance to one of the other three sides must be 36 in. (914 mm)
Clearance to one of the remaining two sides may be 12 in. (305 mm)
and the final side may be 6 in. (152 mm).
A clearance of 24 in. (610 mm) must be maintained between two units.
48 in. (1219 mm) clearance required on top of unit.
See
NOTES
See NOTES
See NOTES
See
NOTES
CONTROL
BOX
