Lennox TPA036H4 User Manual

TP − 3 to 5 Ton High−Efficiency, R−410A Heat Pump / Page 8

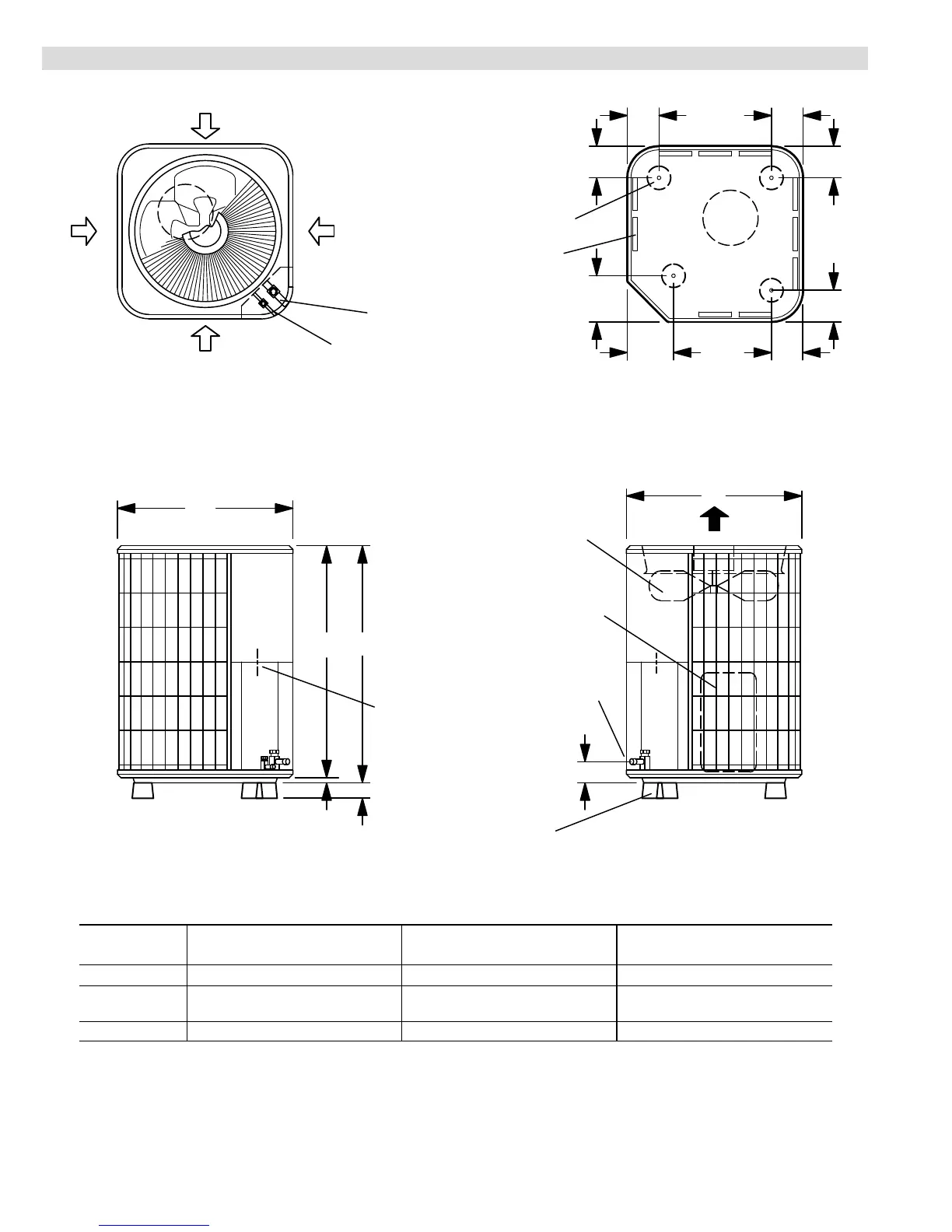

DIMENSIONS − INCHES (MM)
6-3/8
(162)
4-3/8
(111)
SIDE VIEW
VAPOR &
LIQUID LINE
CONNECTIONS
INLET
AIR
INLET
AIR
DISCHARGE AIR
SIDE VIEW
TOP VIEW
OUTDOOR
COIL FAN
COMPRESSOR
INLET AIR
INLET AIR
SUCTION LINE
CONNECTION
2-3/4 (70)
A
ELECTRICAL
INLETS
LIQUID LINE
CONNECTION
TOP VIEW BASE SECTION
4-3/8
(111)
COMPRESSOR
COIL DRAIN OUTLETS
(Around perimeter of base)
OPTIONAL UNIT
STAND-OFF KIT (4)
(Field Installed)
BC
A
OPTIONAL UNIT
STAND-OFF KIT (4)
(Field Installed)
2 (51)
3/4
(19)
4-3/8
(111)
4-3/8
(111)
4-3/8
(111)
4-3/8
(111)
6-3/8
(162)
Model No
A B C
M
o
d
e
l
N
o.
in.
mm in. mm in. mm
TPA036H4
32−1/4 819 29-1/4 743 28-1/2 724
TPA042H4
TPA048H4
32-1/4 819 37 940 36−1/4 921
TPA060H4 32−1/4 819 43-1/4 1099 42-1/2 1080
