TP − 3 to 5 Ton R−22 Heat Pump Outdoor Units / Page 2

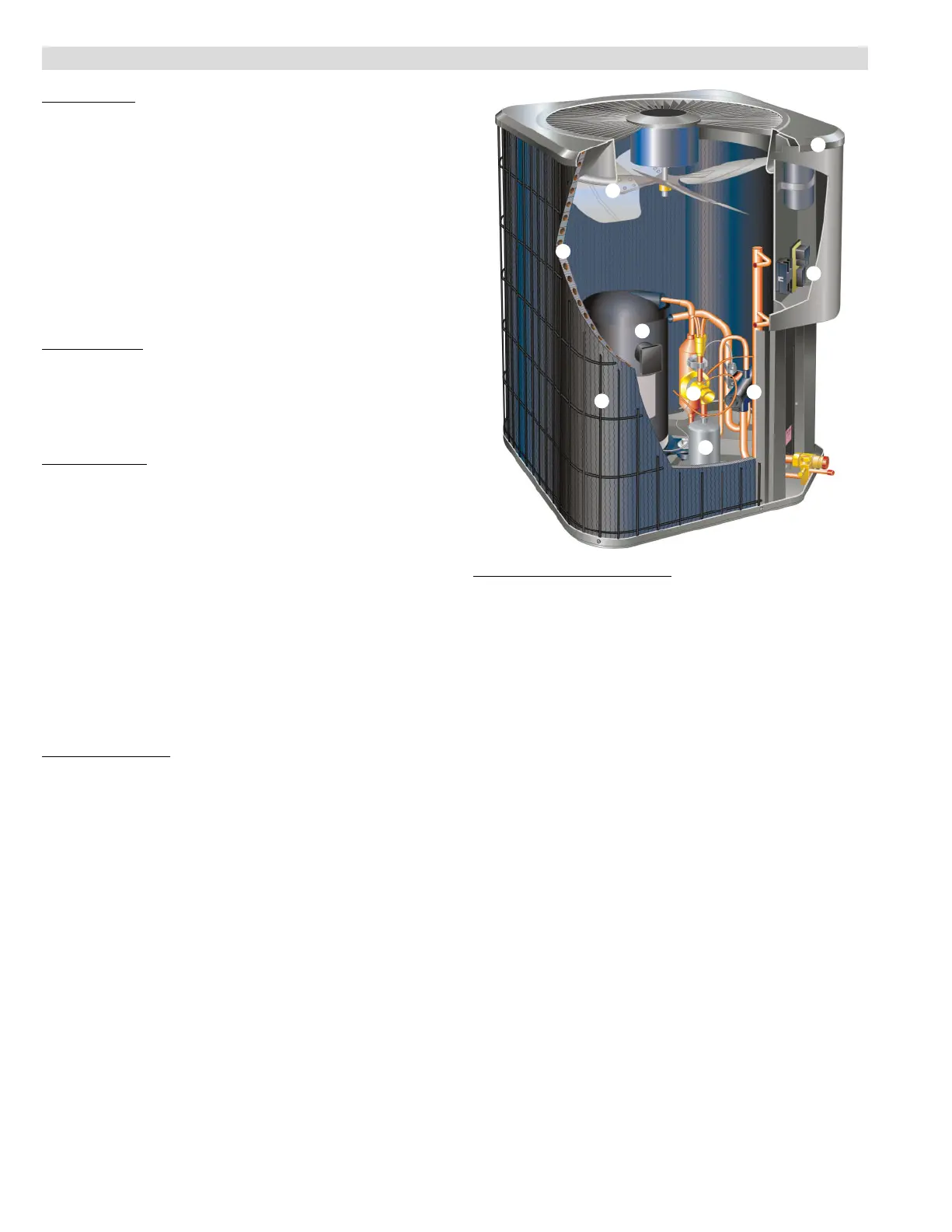

FEATURES
CONTENTS
ARI Rating Tables Pages 10 − 12. . . . . . . . . . . . . . . . . . . . .
Dimensions Page 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Data Page 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Features Page 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indoor Coil / Air Handler Substitutions Page 9. . . . . . . . . .
Installation Clearances Page 7. . . . . . . . . . . . . . . . . . . . . . .
Model Number Identification Page 1. . . . . . . . . . . . . . . . . .
Optional Accessories Page 6. . . . . . . . . . . . . . . . . . . . . . . .
Outdoor Sound Data Page 7. . . . . . . . . . . . . . . . . . . . . . . . .
Specifications Page 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty
Compressor − limited warranty for five years.
All other covered components − one year.
Refer to Lennox Equipment Limited Warranty certificate
included with unit for specific details.
Approvals
Certified in Accordance with the USE certification
program, which is based on ARI Standard 210/240−2005.
Sound rated in Lennox reverberant sound test room in
Accordance with test conditions included in ARI Standard
270-95.
Tested in the Lennox Research Laboratory environmental
test room.
Rated According to U.S. Department of Energy (DOE)
test procedures.
Units and components within bonded for grounding to
meet safety standards for servicing required by UL, NEC
and CEC.
Units are UL and ULC listed.
ISO 9001 Registered Manufacturing Quality System.
Applications
SEER up to 13.0.
Heating COP up to 3.68.
HSPF (Region IV) up to 7.70.
3 through 5 tons.
Three−phase power supply.
Vertical air discharge allows concealment behind shrubs
at grade level or out of sight on a roof.
Designed for applications with remotely located indoor air
handler units.
See Air Handlers tab section for unit data.
Units shipped completely factory assembled, piped and
wired. Each unit is test operated at the factory insuring
proper operation.
Installer must set outdoor unit, connect refrigerant lines
and make electrical connections to complete job.
For expanded ratings, see www.lennoxdavenet.com.
B
C
D
E
F
G
H
I
J
K
REFRIGERANT SYSTEM
Outdoor Coil Fan
Direct drive fan moves large air volumes uniformly
through entire outdoor coil for high refrigerant cooling and
heating capacity.
Vertical air discharge minimizes operating sounds and
eliminates damage to lawn and shrubs.
Fan motor has sleeve bearings and is inherently
protected.
Motor totally enclosed for maximum protection from
weather, dust and corrosion.
Rain shield on motor provides additional protection from
moisture.
Louvered steel top fan guard furnished as standard.
Fan service access accomplished by removal of top
panel.
Copper Tube/Enhanced Fin Coil
Lennox designed and fabricated coil.
Ripple-edged aluminum fins.
Copper tube construction.
Lanced fins provide maximum exposure of fin surface to
air stream resulting in excellent heat transfer.
Fin collars grip tubing for maximum contact area.
Flared shoulder tubing connections/silver soldering
construction.
Coil is factory tested under high pressure to ensure
leakproof construction.
Entire coil is accessible for cleaning.
PVC coated steel wire coil guard furnished as standard.
B
C
D
