5
Unit Dimensions - inches (mm)
14-3/4 (375 mm)
13-1/2 (343 mm)
12-1/2 (318 mm)
17-7/8 (454 mm)
9-7/8 (251 mm)
5/16 (8 mm)
1-3/4 (44 mm)
6 (152 mm)
4-5/8 (117 mm)
1-3/8
(35 mm)
5-3/8 (135 mm)
2-3/8
2-3/8
2-5/8 2-5/8 2-5/8 2-5/8 2-5/8
(60 mm) (66 mm)(66 mm)(66 mm)(66 mm)(66 mm) (60 mm)
Line Voltage Inlet
Φ7/8 (22 mm)
Low Voltage Inlet
Φ1-1/8 (29 mm)
FRONT VIEW
BOTTOM VIEW
SIDE VIEW
AHU Control Box Front
AHU Control Box Back
Liquid line connection to outdoor unit
field-provided swage connection
1/4(6.45mm)(V8AHUK02-3P)
Φ3/8 (10 mm) (V8AHUK03-3P and V8AHUK04-3P)
Liquid line connection to indoor unit
field-provided swage connection
AHU Control Box Top
Use 4 ST3.9X25 or other appropriate fixing method
to secure the AHU control box.
AHU Control Box Front
NOTE - A maximum of (4) 12-AWG cabling can be used per 7/8" electrical inlet port. A maximum of (18) communication cables can be used
per 1 1/8" electrical port.
NOTE - High Voltage Cabling and Low Voltage Communication Cabling shall not pass/occupy the same electrical port.
All VRF/Furnace Communication cabling must be 18 Gauge shielded/stranded.
1/4(6.45mm)(V8AHUK02-3P)
Φ3/8 (10 mm) (V8AHUK03-3P and V8AHUK04-3P)

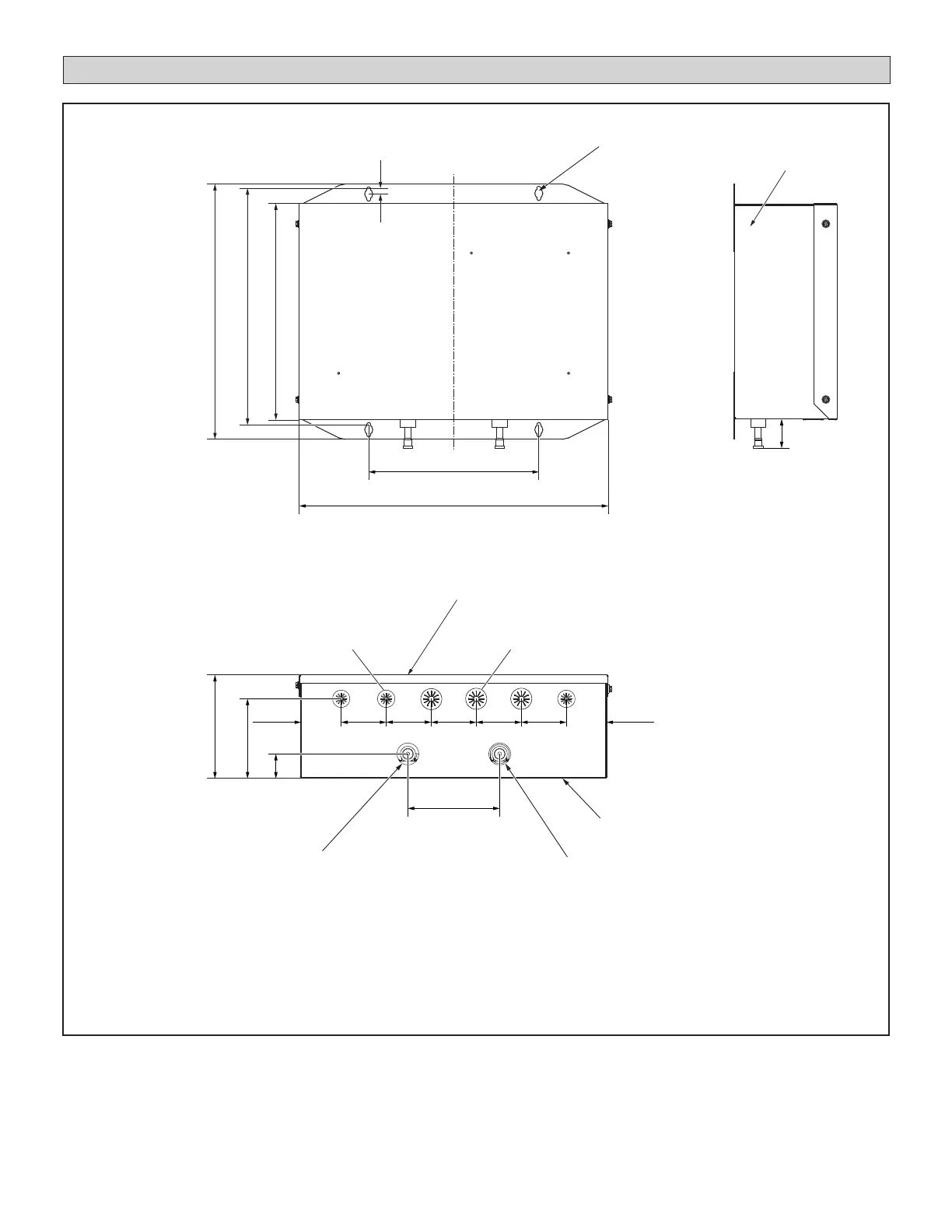

Figure 3. AHU Control Kit Dimensions
