XP16

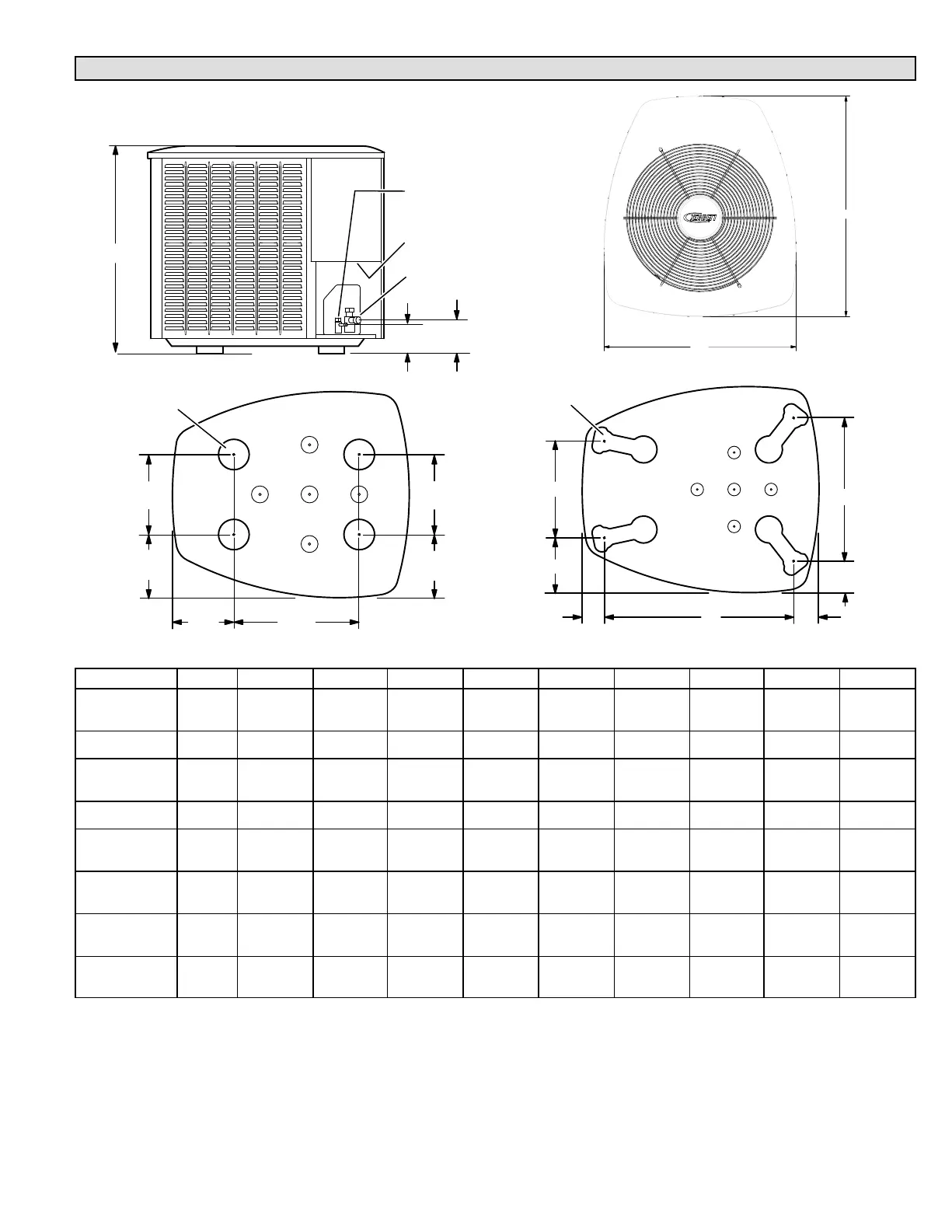

Unit Dimensions − Inches (mm)
ELECTRICAL INLETS
SIDE VIEW
SUCTION LINE
CONNECTION
LIQUID LINE
CONNECTION
4−1/2"
(108)
4−3/4"
(121)
TOP VIEW
A
B
C
UNIT SUPPORT
FEET
8−1/2
(216)
XP16−024 BASE SECTION
8−3/4
(222)
5−1/2
(140)
9−1/2
(241)
8−1/4
(210)
13−1/2
(343)
D
G
K
J
E
F
UNIT SUPPORT FEET
XP16−036 to −060 BASE WITH LEGS
H
Model Number A B C D E F G H J K
XP16−024−01,
−02, −03, −04
31 (889) 27 (686) 28 (711) − − − − − − −
XP16−024−05 35 (889) 27 (686) 28 (711) − − − − − − −
XP16−036−01,
−02, −03, −04
35 (889) 30−1/2 (775) 35 (889) 13−7/8 (352) 7−3/4 (197) 3−1/4 (83) 27−1/8 (689) 3−5/8 (92) 4−1/2 (114) 20−5/8 (524)
XP16−036−05 39 (991) 30−1/2 (775) 35 (889) 13−7/8 (352) 7−3/4 (197) 3−1/4 (83) 27−1/8 (689) 3−5/8 (92) 4−1/2 (114) 20−5/8 (524)
XP16−048−01,
−02, −03, −04
45 (1143) 30−1/2 (775) 35 (889)) 16−7/8 (429) 8−3/4 (222) 3−1/8 (79) 30−3/4 (781) 4−5/8 (117) 3−3/4 (95) 26−7/8 (683)
XP16−048−05 35 (889) 35−1/2 (902)
39−1/2
(1003)
16−7/8 (429) 8−3/4 (222) 3−1/8 (79) 30−3/4 (781) 4−5/8 (117) 3−3/4 (95) 26−7/8 (683)
XP16−060−01,
−02, −03, −04
39 (991) 35−1/2 (902)
39−1/2
(1003)
16−7/8 (429) 8−3/4 (222) 3−1/8 (79) 30−3/4 (781) 4−5/8 (117) 3−3/4 (95) 26−7/8 (683)
XP16−060−05 45 (1143 35−1/2 (902)
39−1/2
(1003)
16−7/8 (429) 8−3/4 (222) 3−1/8 (79) 30−3/4 (781) 4−5/8 (117) 3−3/4 (95) 26−7/8 (683)
