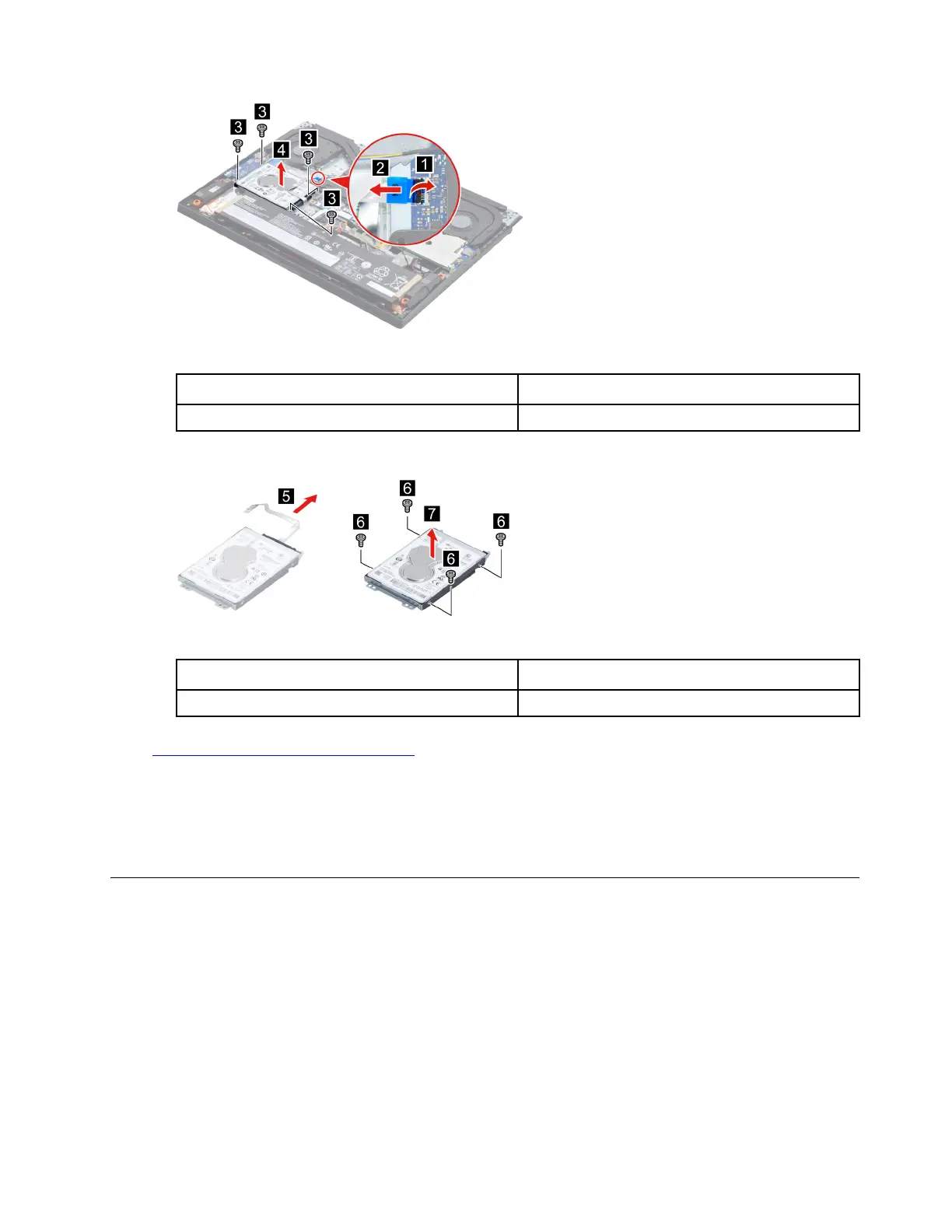

Figure 10. Remove the HDD module
Screw specifications
Number of screws
M2 x L3 4
Step 3. Remove the HDD cable. Then remove four screws and separate the HDD from the HDD bracket.
Figure 11. Separate the HDD cable, HDD and the HDD bracket
Screw specifications
Number of screws
M2 x L3 4
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
HDD
HDD cable
HDD bracket
Remove the memory module
Make sure the following FRU (or CRU) has been removed.
“Remove the lower case” on page 28
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.
Step 2. Remove the memory shielding.
Chapter 4. Removing a FRU or CRU 33
