Lenovo Legion 5 17IMH05H User Manual

Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
I/O board
Remove the Kensington lock bracket
Make sure the following FRU (or CRU) has been removed.
“Remove the lower case” on page 28
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.
Step 2. Remove two screws and then remove the Kensington lock bracket.

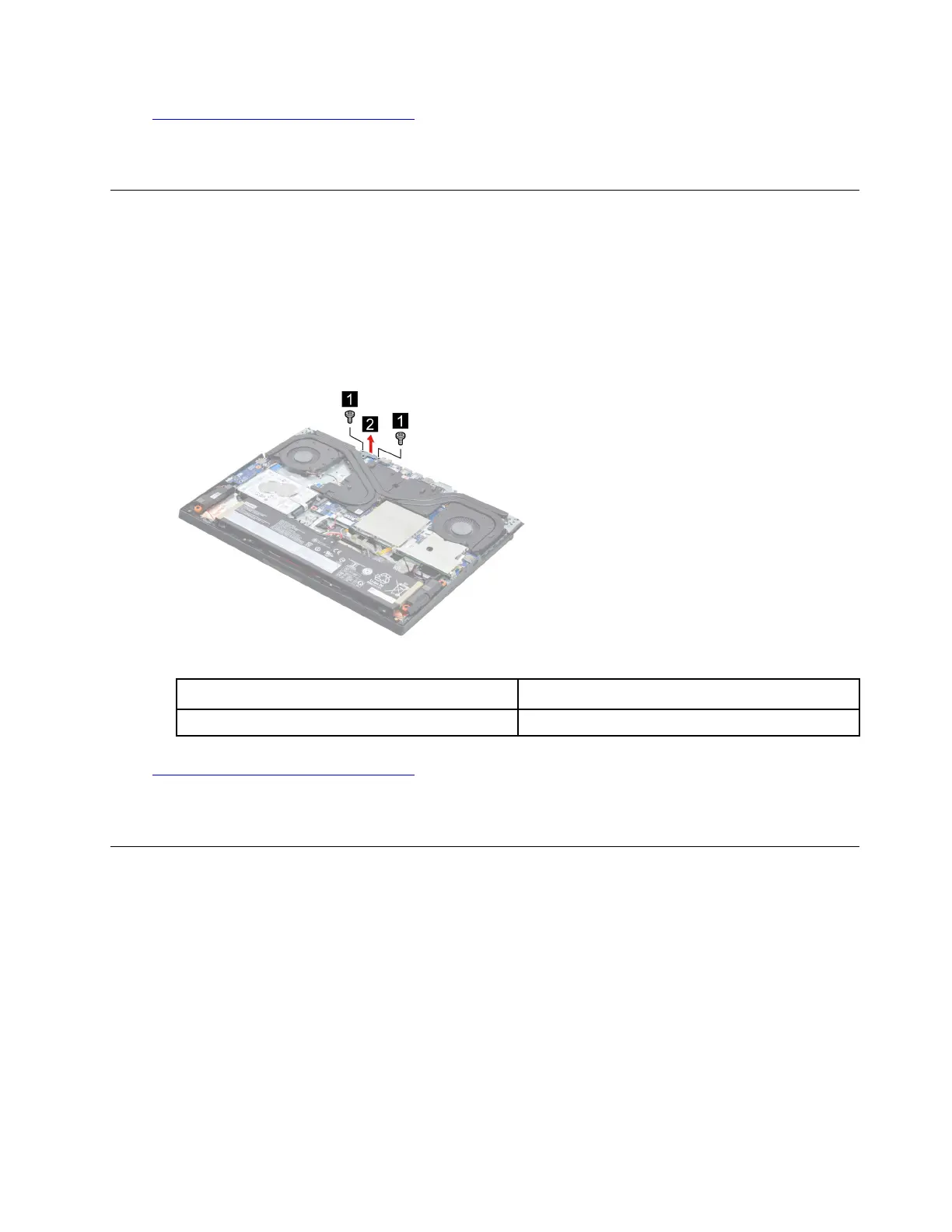

Figure 18. Remove the Kensington lock bracket
Screw specifications
Number of screws
M2 x L7 2
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Kensington lock bracket
Remove the DC-in bracket
Make sure the following FRU (or CRU) has been removed.
“Remove the lower case” on page 28
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.
Step 2. Remove two screws and then remove the DC-in bracket.
Chapter 4. Removing a FRU or CRU 37
