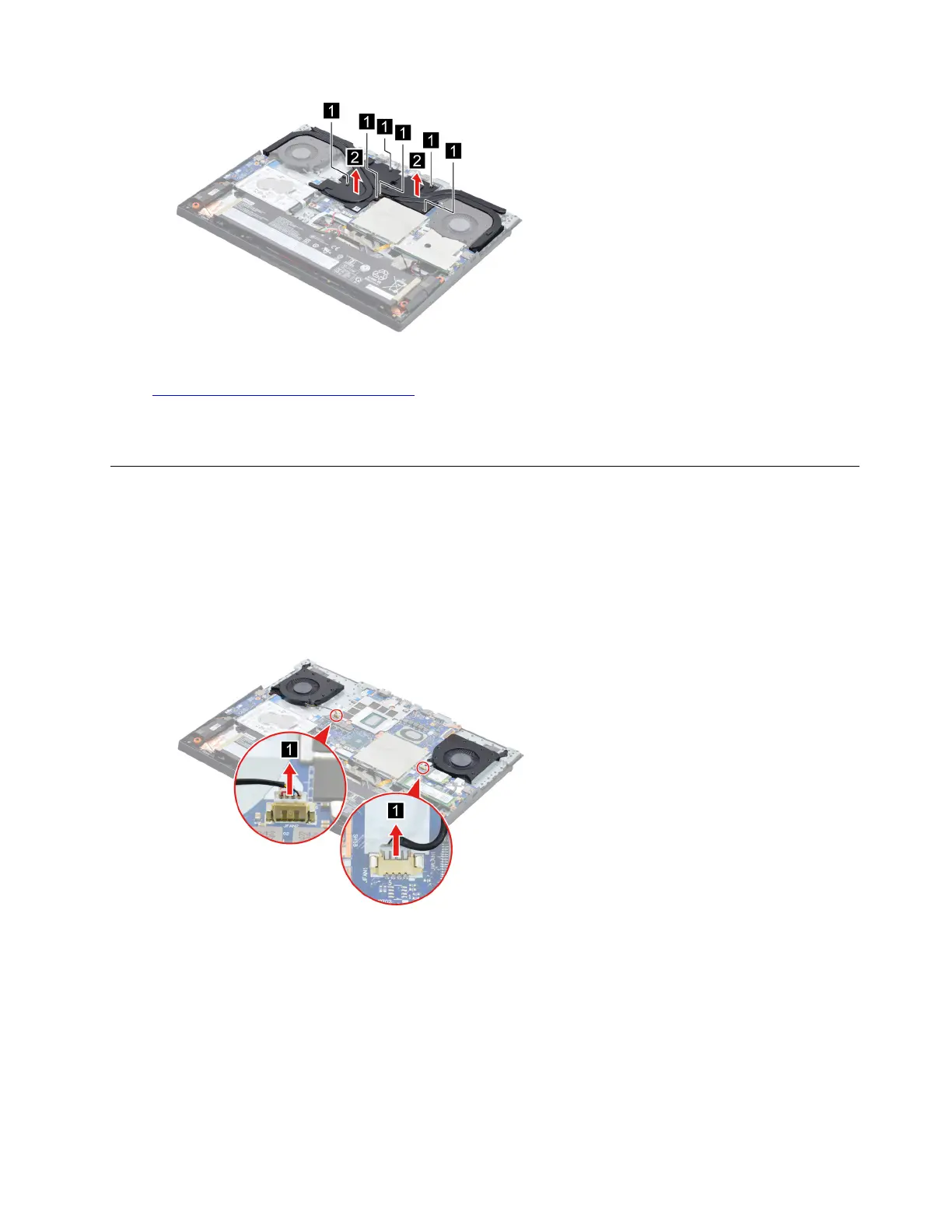

Figure 14. Loosen six screws and remove the heat sink
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Heat sink
Remove the fan
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 28
“Remove the solid-state drive (SSD) plate” on page 30
“Remove the heat sink” on page 34
Step 1. Disconnect the fan cables from the system board.
Figure 15. Disconnect the fan cables from the system board
Step 2. Remove five screws and then remove the fan.
Chapter 4. Removing a FRU or CRU 35
