9.Slidethenewsolid-statedriveintothesolid-statedrivebracketasshownuntilthefourholesinthe
drivearealignedwiththecorrespondingholesinthebracket.Then,installthefourscrewstosecurethe
newsolid-statedrivetothebracket.

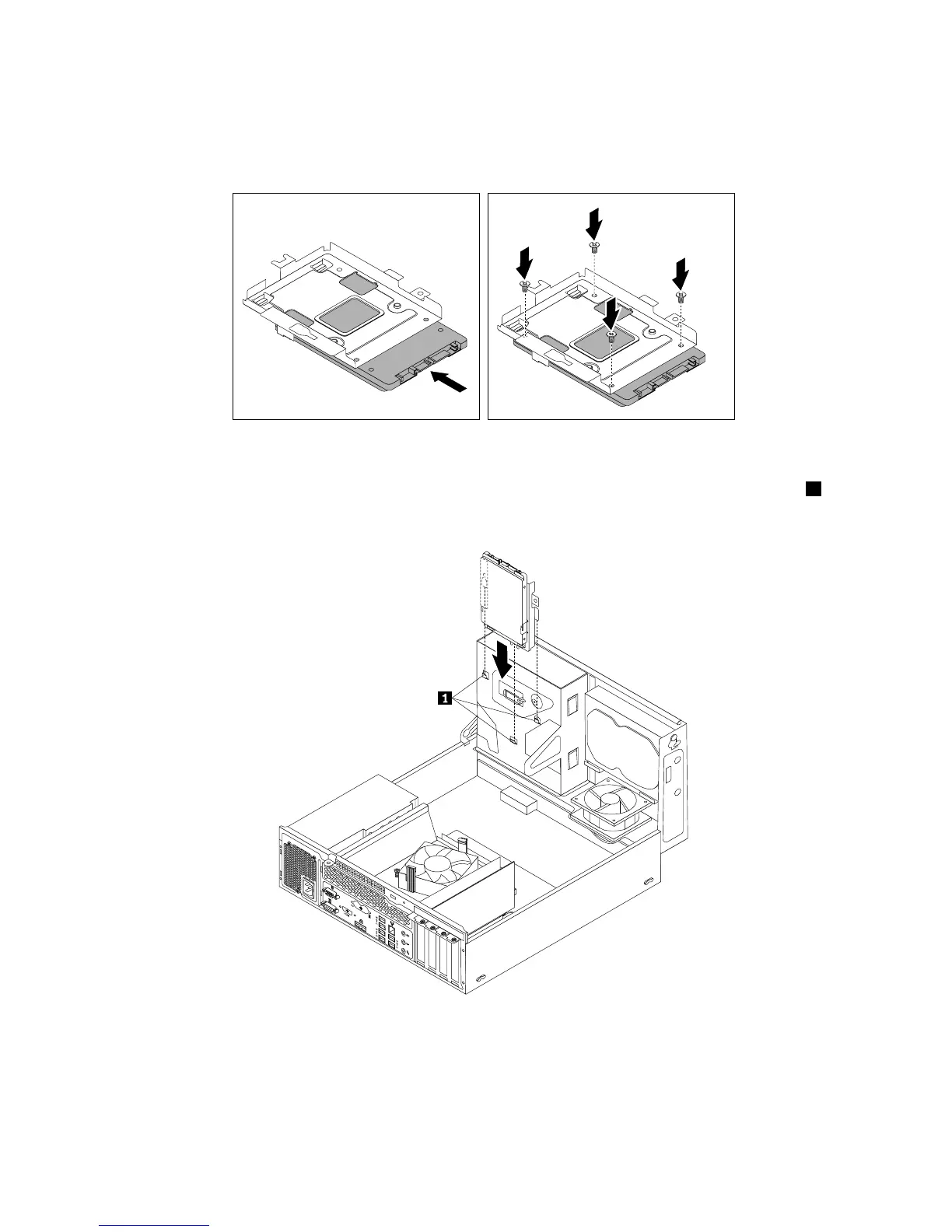

Figure29.Installingthesolid-statedriveintothebracket
10.Carefullyslidethesolid-statedrivebracketdownwarduntilitissecuredbythethreeretainingclips1on
thebottomoftheopticaldrivebay.
Figure30.Installingthesolid-statedrivebracket
54ThinkCentreE93UserGuide
