Lenovo ThinkPad E590 - Page 62

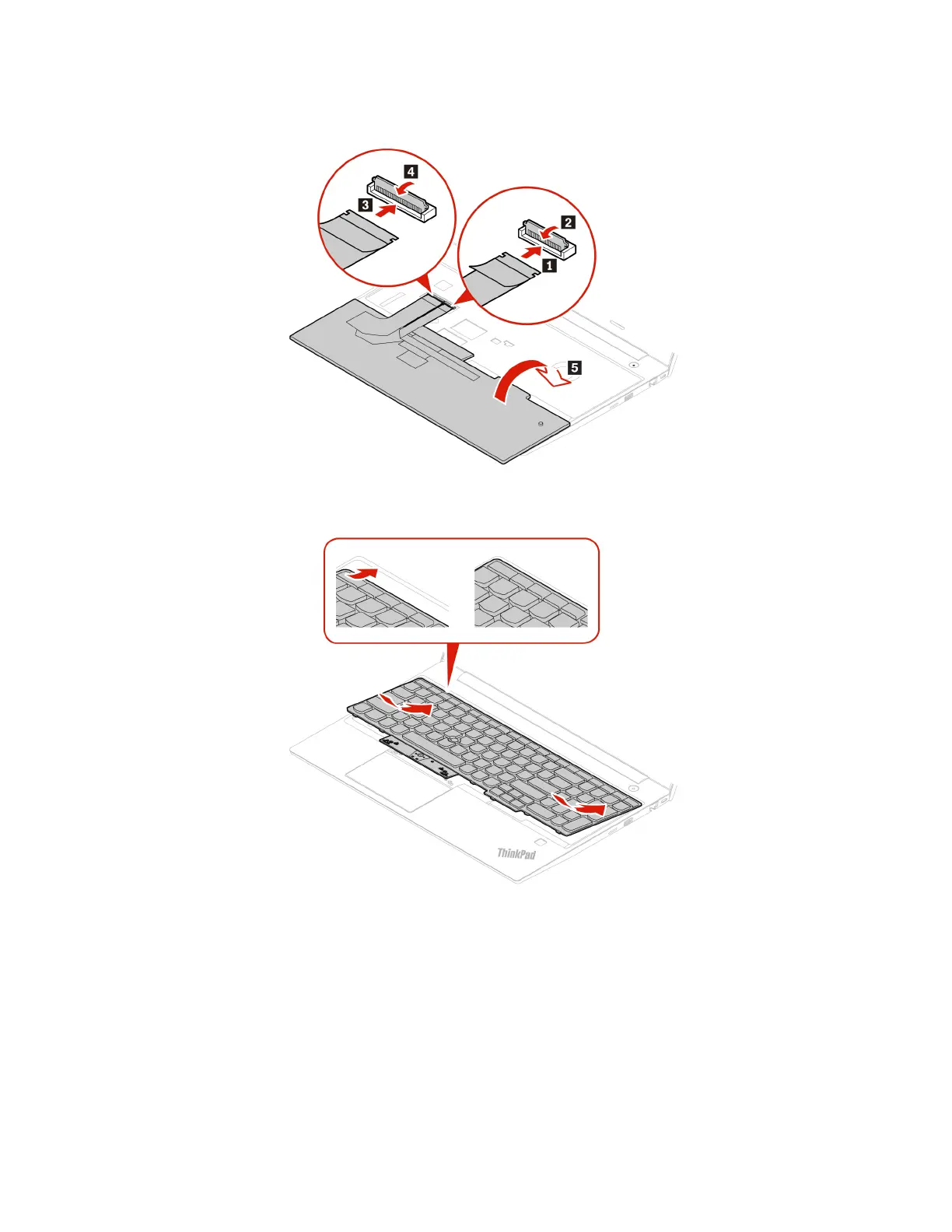

12. Attach the connectors and turn the keyboard over as shown.
13. Insert the keyboard into the keyboard bezel as shown. Ensure that the front edge of the keyboard (the
edge that is close to the display) is under the keyboard bezel.
56 E590 and R590 User Guide
