1120 Power button with fingerprint reader module and bracket
For access, remove these FRUs in order:
“1010 Base cover assembly” on page 64

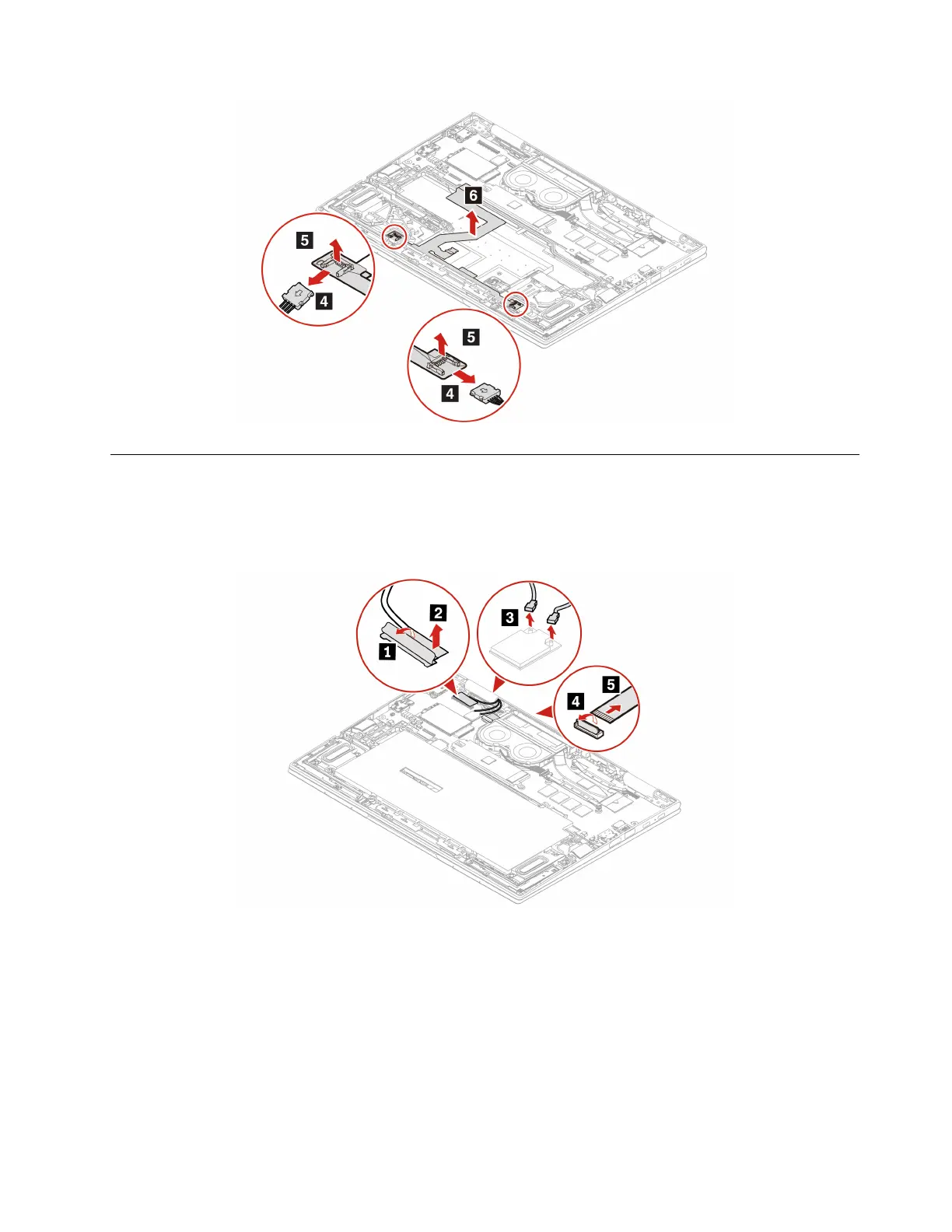

Removal steps of the fingerprint reader module and bracket
Chapter 8. Removing or replacing a FRU 77

Table of Contents

Other manuals for Lenovo ThinkPad X1 Yoga Gen 8

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Lenovo ThinkPad X1 Yoga Gen 8 and is the answer not in the manual?

Lenovo ThinkPad X1 Yoga Gen 8 Specifications

General IconGeneral
MemoryUp to 32GB LPDDR5
WeightStarting at 1.38 kg (3.04 lbs)
Operating SystemWindows 11 Pro
AudioDolby Atmos Speaker System
Processor13th Gen Intel Core i7
Display14" 2.8K (2880 x 1800) OLED, 400 nits
Display OptionTouchscreen
GraphicsIntel Iris Xe Graphics
StorageUp to 2TB PCIe SSD
Battery57Wh
Ports2x Thunderbolt 4, 2x USB-A 3.2 Gen 1, HDMI 2.1, headphone/mic combo jack
ConnectivityWi-Fi 6E, Bluetooth 5.2
CameraFHD 1080p with ThinkShutter
SecurityFingerprint reader, dTPM 2.0
