Chapter 2. Installing optional devices
Important: Before you install optional hardware, make sure that the server is
working correctly. Start the server, and make sure that the operating system starts,
if an operating system is installed, or that a 19990305 error code is displayed,
indicating that an operating system was not found but the server is otherwise
working correctly. If the server is not working correctly, see the Hardware
Maintenance Manual for diagnostic information.
Server components

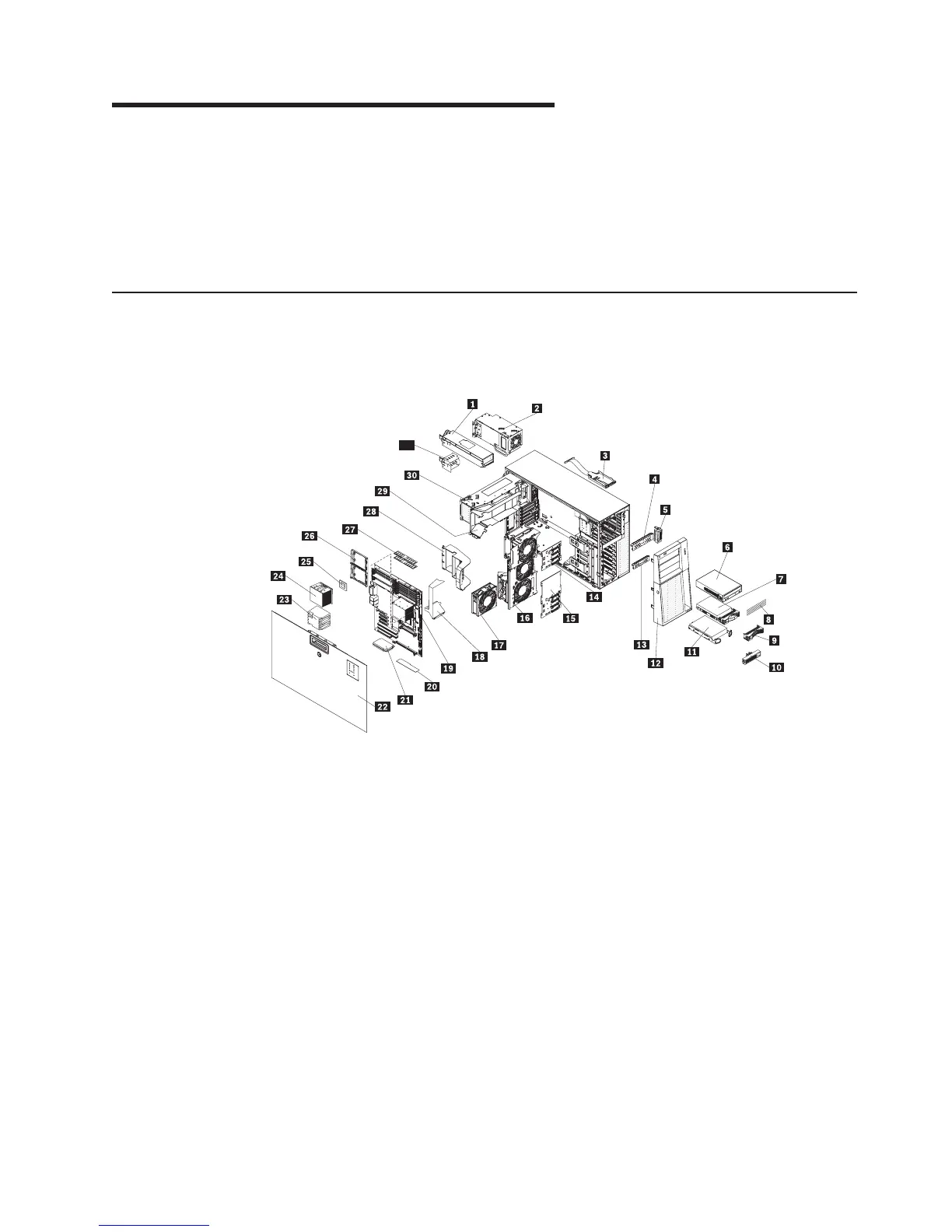

The following illustration shows the major components in the server. The
illustrations in this document might differ slightly from your hardware.
31
1 Hot-swap power supply (some
models)
17 Hot-swap fan
2 Fixed power supply (some models) 18 Processor baffle
3 Control panel assembly 19 System board
4 Drive bay EMC shield 20 ServeRAID 8k-l (TD100) or
ServeRAID 8k (TD100x)
5 USB cable assembly 21 Voltage regulator module (VRM)
6 CD/DVD drive 22 Cover
7 Hot-swap drive 23 Heat sink filler
8 CD/DVD drive trim piece 24 Heat sink
9 Hot-swap drive trim piece 25 Microprocessor
10 Simple-swap drive trim piece 26 Heat sink retention bracket
11 Simple-swap drive 27 DIMMs
12 Bezel 28 Rear adapter retention bracket
13 Hard disk drive EMC shield 29 DIMM air duct
14 SAS/SATA backplane 30 Power supply cage
15 SATA backplate 31 Hot-swap power supply filler
16 Fan assembly
© Lenovo 2008, 2009. Portions © IBM Corp. 2007. 15
