System-board optional-device connectors

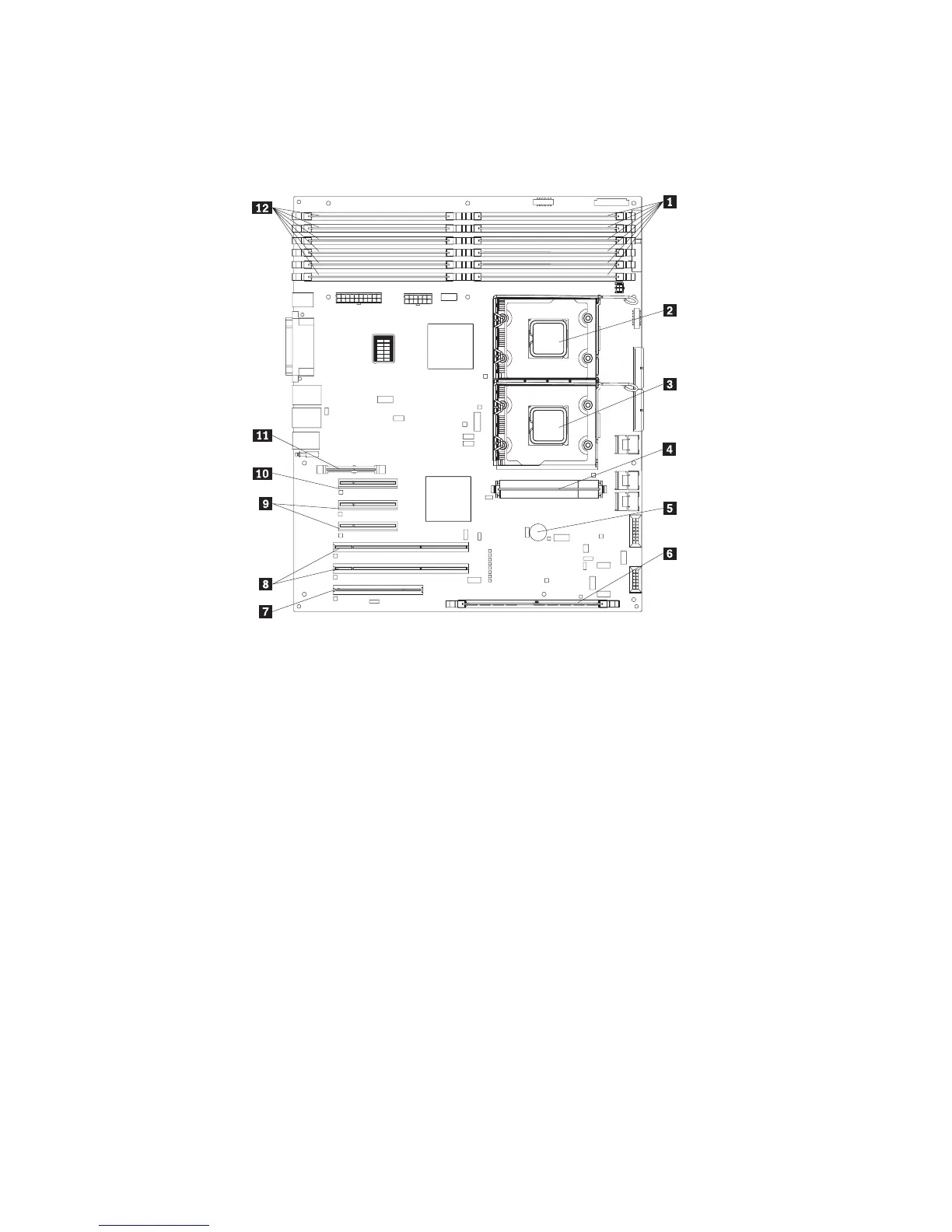

The following illustration shows the system-board connectors for user-installable
options.
1
2
3
4
5
6
7
8
9
10
11
12
DIMM LEDs
1 DIMM connectors (6) 7 PCI 32 bit/33 MHz connector
2 Microprocessor 1 connector 8 PCI-X 64 bit/133 MHz connector
3 Microprocessor 2 connector 9 PCI Express x8 (x8) connector
4 VRM connector 10 PCI Express x8 (x4) connector
5 Battery 11 System-management Ethernet
connector
6 RAID adapter 12 DIMM connectors (6)
System board switches
The following illustration shows the SW4 switch (Boot block/Clear CMOS) 1 on
the system board.
18 ThinkServer TD100 and TD100x Types 4203, 4204, 4205, 4206, 6398, 6399, 6419, and 6429: User Guide
