Lenovo ThinkServer RD330 Quick Manual

WW/WW/DS/Q1-13/28297
THE LENOVO® THINKSERVER® RD330
WWW.LENOVO.COM
©2012 Lenovo. All rights reserved.
Availability: Oers, prices, specifications and availability may change without notice. Lenovo is not responsible for photographic or typographic errors. Warranty: For
a copy of applicable warranties, write to: Warranty Information, 500 Park Oces Drive, RTP, NC, 27709, Attn: Dept. ZPYA/B600. Lenovo makes no representation
or warranty regarding third-party products or services. Trademarks: Lenovo, the Lenovo logo, ThinkServer are trademarks or registered trademarks of Lenovo.
Microso, Windows, and Vista are registered trademarks of Microso Corporation. Intel, the Intel logo, Intel Core, Core Inside, Xeon and Xeon Inside are registered
trademarks of Intel Corporation in the U.S. and other countries. Other company, product, and service names may be trademarks or service marks of others. Visit
www.lenovo.com/safecomputing periodically for the latest information on safe and eective computing.

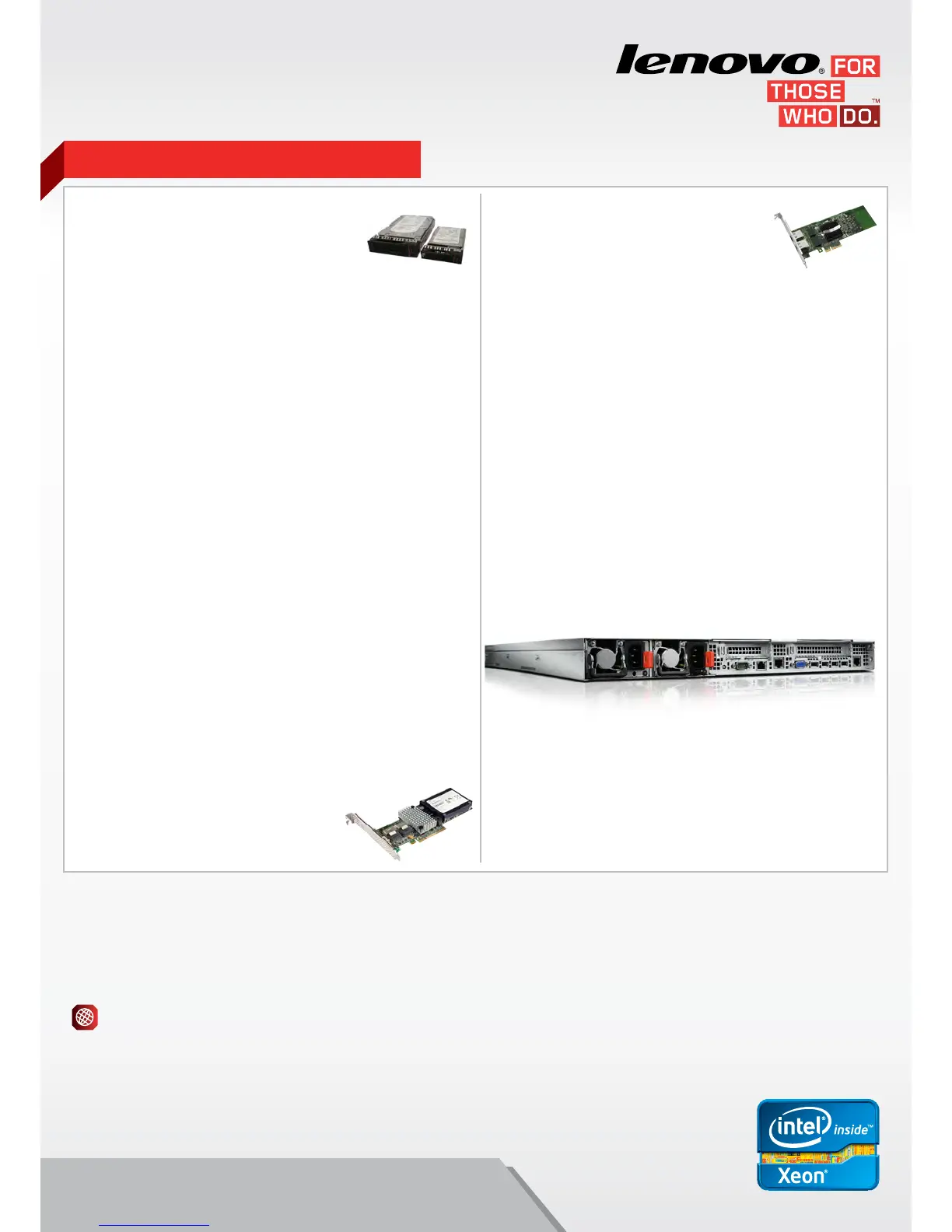

OPTIONS AND ACCESSORIES
* select HBA and ethernet adapter options will be available in 1Q 2013. Ask your Lenovo sales representative for availability
HARD DRIVES
• ThinkServer 2.5” 100GB MLC SATA Solid State Drive
(0A89420)
• ThinkServer 2.5” 200GB MLC SATA Solid State Drive
(0A89418)
• ThinkServer 2.5” 400GB MLC SATA Solid State Drive (0A89419)
• ThinkServer 2.5” 500GB 7.2K 6Gbps SATA HDD (0C19495)
• ThinkServer 2.5” 1TB 7.2K 6Gbps SATA HDD (0C19496)
• ThinkServer 3.5” 500GB 7.2K 6Gbps SATA Hot Swap HDD (0A89473)
• ThinkServer 3.5” 1TB 7.2K 6Gbps SATA Hot Swap HDD (0A89474)
• ThinkServer 3.5” 2TB 7.2K 6Gbps SATA Hot Swap HDD (0A89475)
• ThinkServer 3.5” 3TB 7.2K 6Gbps SATA Hot Swap HDD (0A89477)
• ThinkServer 2.5” 146GB 15K SAS 6Gbps Hot Swap HDD (0C19493)
• ThinkServer 2.5” 300GB 15K SAS 6Gbps Hot Swap HDD (0C19494)
• ThinkServer 3.5” 300GB 15K SAS 6Gbps Hot Swap HDD (67Y2616)
• ThinkServer 3.5” 450GB 15K SAS 6Gbps Hot Swap HDD (67Y2617)
• ThinkServer 3.5” 600GB 15K SAS 6Gbps Hot Swap HDD (67Y2618)
• ThinkServer 2.5” 300GB 10K SAS 6Gbps Hot Swap HDD (67Y2619)
• ThinkServer 2.5” 450GB 10K SAS 6Gbps Hot Swap HDD (67Y2620)
• ThinkServer 2.5” 600GB 10K SAS 6Gbps Hot Swap HDD (67Y2621)
• ThinkServer 2.5” 900GB 10K SAS 6Gbps Hot Swap HDD (0A89409)
MEMORY
• ThinkServer 4GB DDR3-1333MHz (1Rx4) RDIMM (0A89411)
• ThinkServer 8GB DDR3-1333MHz (2Rx4) RDIMM (0A89412)
• ThinkServer 16GB DDR3-1333MHz (2Rx4) RDIMM (0A89413)
• ThinkServer 4GB DDR3L 1333MHz (1Rx4) RDIMM (0A89415)
• ThinkServer 8GB DDR3L 1333MHz (2Rx4) RDIMM (0A89416)
• ThinkServer 16GB DDR3L 1333MHz (2Rx4) RDIMM (0A89417)
• ThinkServer 2GB DDR3-1333Mhz (1RX8) ECC UDIMM (67Y2606)
• ThinkServer 4GB DDR3-1333Mhz (2RX8) ECC UDIMM (67Y2607)
RAID OPTIONS
• ThinkServer RAID 500 Adapter II (0A89464)
• ThinkServer RAID 500 Upgrade Key for Advanced RAID (0A89407)
• ThinkServer RAID 700 Adapter II (0A89463)
• ThinkServer RAID 700 Battery (67Y2647)
HBA AND ETHERNET ADAPTERS*
Lenovo Gigabit ET Dual Port Server Adapter
by Intel (0A89423)
Lenovo Ethernet I340 Quad Port Server Adapter
by Intel (0A89424)
Lenovo 10Gbps Ethernet X520-T2 Server Adapter
by Intel (0A89425)
Lenovo 10Gbps Ethernet X520-SR2 Server Adapter by Intel (0C19487)
Lenovo 10Gbps Ethernet X520-DA2 Server Adapter by Intel (0C19486)
Lenovo 10Gbps Ethernet X540-T2 Server Adapter by Intel (0C19497)
Lenovo 10Gbps Ethernet Fiber Module by Intel (0C19488)
ThinkServer LPe1250 Single Port 8Gb Fibre Channel HBA by Emulex (0C19476)
ThinkServer LPe12002 Dual Port 8Gb Fibre Channel HBA by Emulex (0C19478)
MANAGEMENT AND POWER
• ThinkServer 550W Hot Swap Redundant Power Supply (0A89427)
• ThinkServer Management Controller Premium (67Y2624)

Lenovo ThinkServer RD330 Specifications

General

Bus type	QPI
Stepping	M1
FSB Parity	No
Scalability	2S
Processor code	SR0LR
Processor cache	10 MB
Processor cores	4
Processor model	E5-2407
System bus rate	6.4 GT/s
Processor series	Intel Xeon E5-2400
Processor socket	LGA 1356 (Socket B2)
Processor codename	Sandy Bridge EN
Motherboard chipset	Intel® C606
Processor frequency	2.2 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor package size	45 x 42.5 mm
Processor front side bus	- MHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Supported instruction sets	AVX
Thermal Design Power (TDP)	80 W
Number of processors installed	1
Maximum number of SMP processors	2
Maximum number of PCI Express lanes	24
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	25 GB/s
Maximum internal memory supported by processor	375 GB
HDD size	3.5 \
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
Optical drive type	DVD-RW
Total storage capacity	0 GB
Maximum storage capacity	12 TB
Number of HDDs installed	0
Memory slots	12
Internal memory	4 GB
Memory clock speed	1333 MHz
Maximum internal memory	192 GB
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
PS/2 ports quantity	-
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	3
Compatible operating systems	Windows Server 2012\\r Windows Server 2008\\r Windows Server 2008 R2\\r Windows Small Business Server 2011\\r Novel SUSE Linux Enterprise Server\\r VMware vSphere and VMware ESXi
Chassis type	Rack (1U)
Power supply	550 W
Sustainability certificates	ENERGY STAR
PCI Express slots version	3.0
Processor ARK ID	64614
Intel Identity Protection Technology version	0.00

Weight and Dimensions

Depth	734 mm
Width	482.4 mm
Height	43.6 mm
Weight	17000 g
