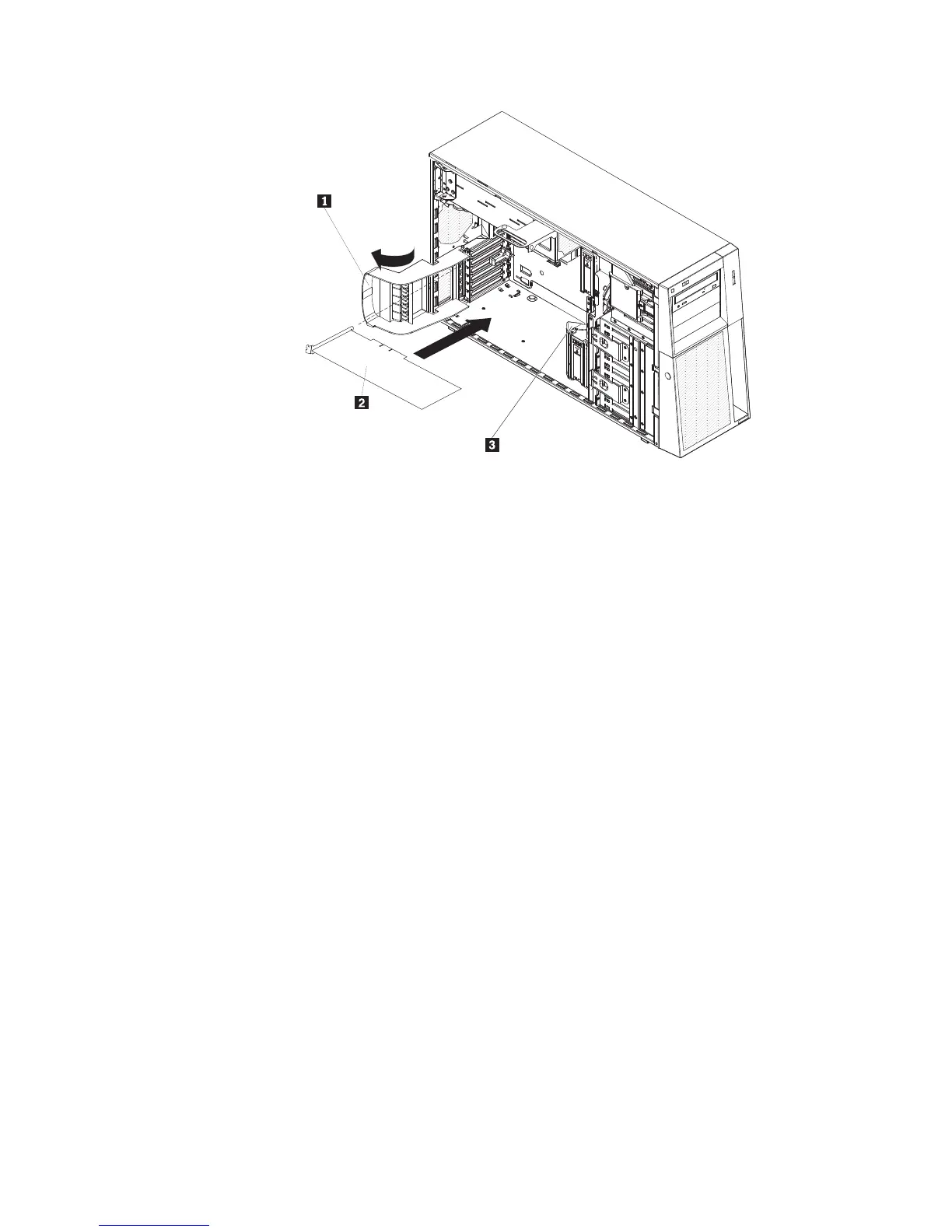

1 Rear adapter-retention bracket
2 Adapter
3 Front adapter-retention bracket
7. Rotate the rear and front adapter-retention brackets to the closed position.
8. Connect required cables to the adapter. Route cables so that they do not block
the flow of air from the fans.
9. Install the side cover (see “Installing the side cover” on page 79).
10. Lock the side cover.
11. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
Chapter 4. Removing and replacing server components 83
