Important: Be careful when you handle the microprocessor and heat sink
. If the microprocessor and heat sink will be reused, do not contaminate
the thermal material between them.
b. Tip the top of the heat sink toward the front of the server while you slide it
away from the lower flange of the retention module; then, remove it from
the server. After removal, place the heat sink on its side on a clean, flat
surface.

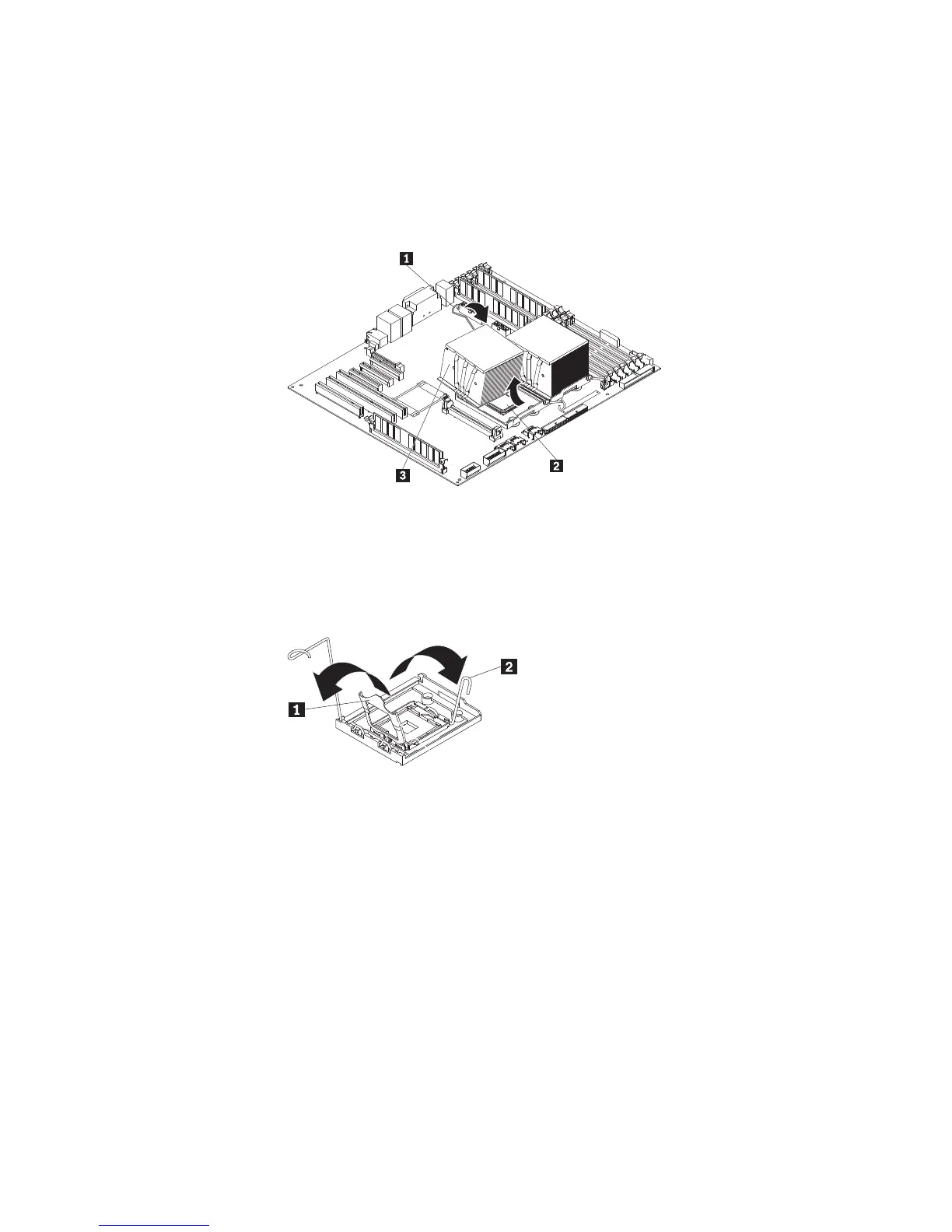

1 Heat sink locking lever
2 Microprocessor
3 Heat sink
10. Release the microprocessor release lever 2 by pressing down on the end,
moving it to the side, and slowly releasing it to the open (up) position.
11. Open the microprocessor bracket frame 1 by lifting up the tab on the top
edge.
12. Carefully lift the microprocessor straight up and out of the socket, and place it
on a static-protective surface.
13. If you are instructed to return the microprocessor and heat sink, follow all
packaging instructions, and use any packaging materials for shipping that are
supplied to you.
138 ThinkServer TD100 and TD100x: Hardware Maintenance Manual
