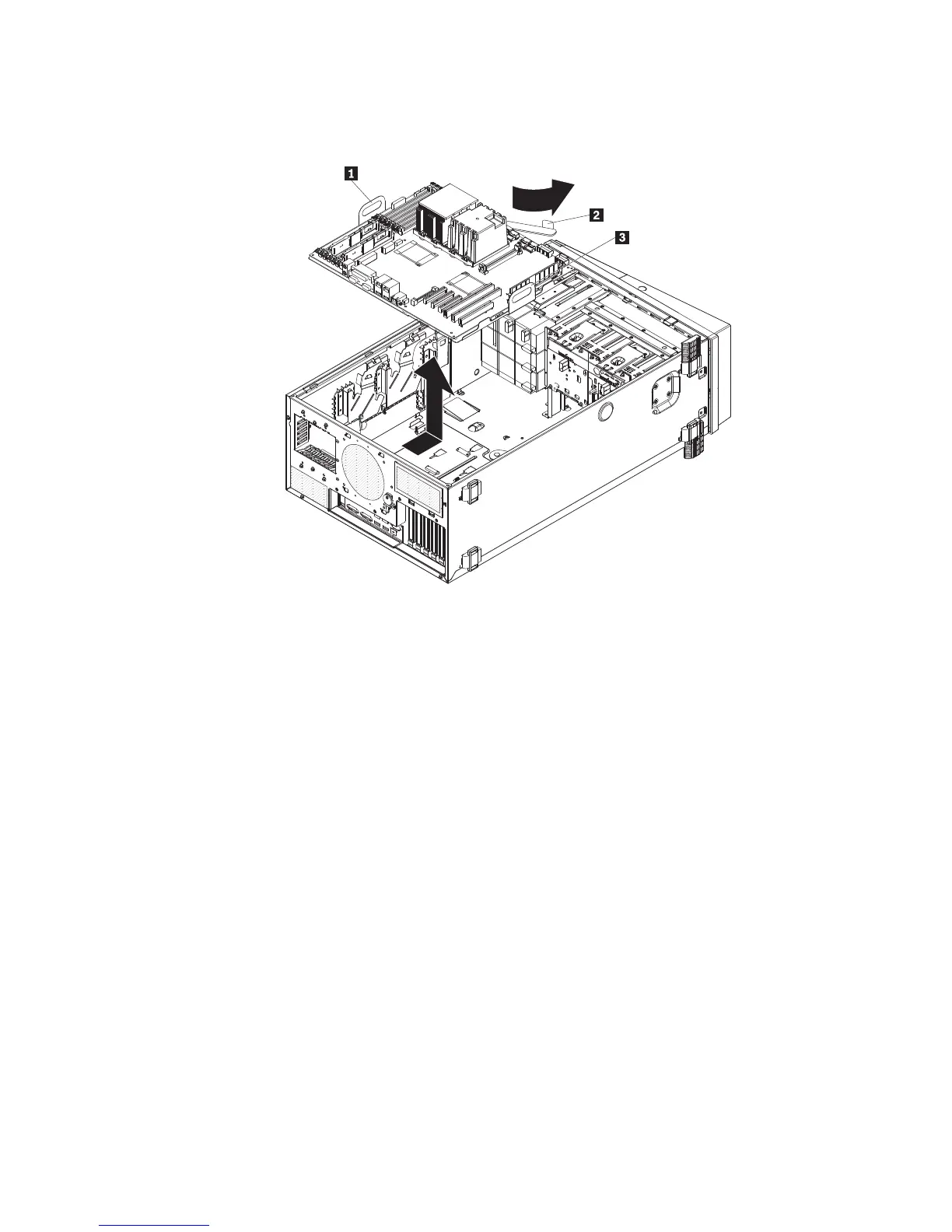

11. Slide the system board toward the front of the server to disengage the tabs
from the chassis; then, grasp the handles and Iron each side and carefully lift
the system board out of the server.
1 Handle
2 Release lever
3 Handle
12. If you are instructed to return the system board, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
144 ThinkServer TD100 and TD100x: Hardware Maintenance Manual
