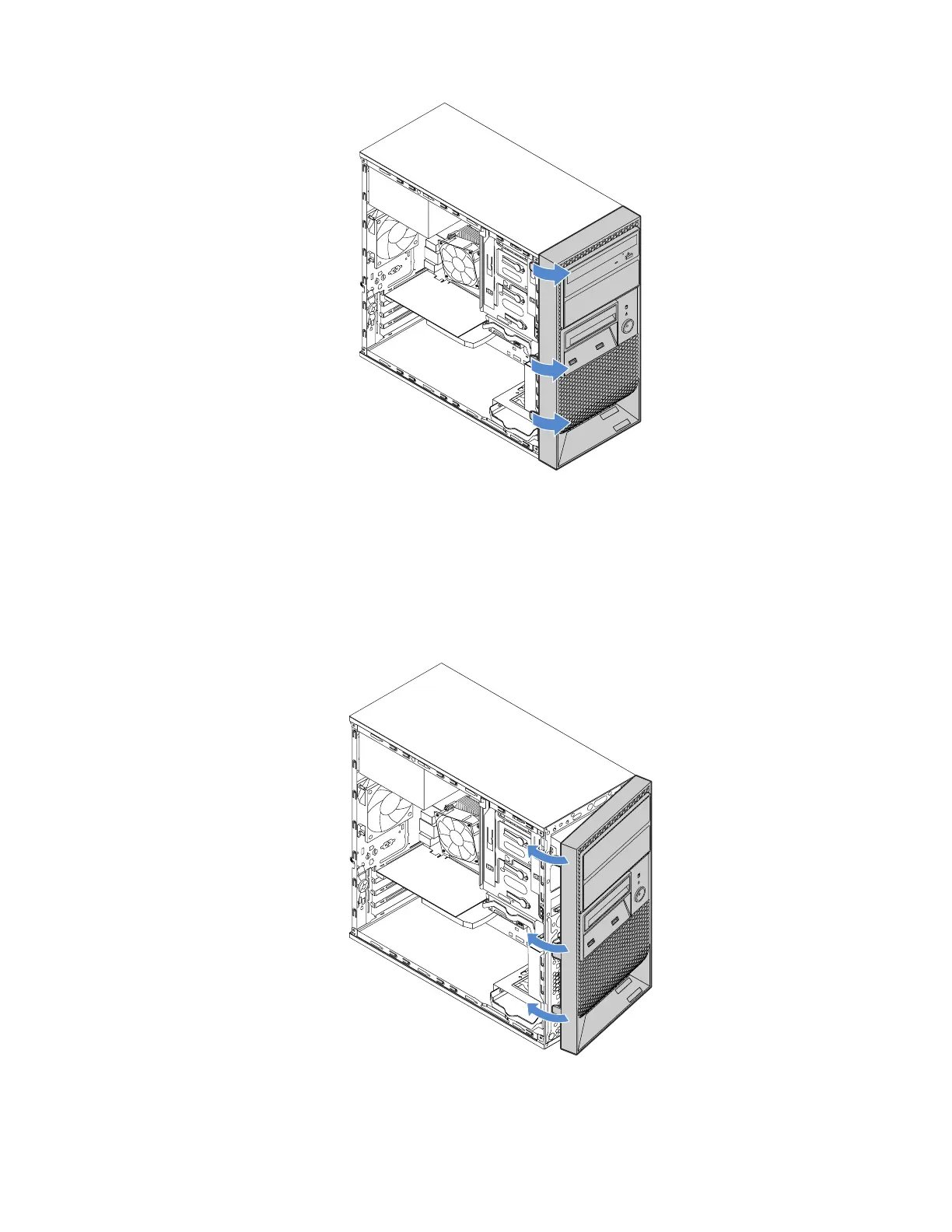

Figure 12. Removing the front bezel
Installing the front bezel
To install the front bezel, do the following:
1. Prepare your server. See “Preparing your server and removing the server cover” on page 41.
2. Align the three plastic tabs on the right side of the front bezel with the corresponding holes in the
chassis. Then, pivot the front bezel as shown until it snaps into position on the left side.
Figure 13. Installing the front bezel
Chapter 5. Replacing hardware 43
