Figure 17. Removing the optical drive from the drive bay
5. Install a new optical drive or install a metal shield to cover the drive bay.
6. If you are instructed to return the old optical drive, follow all packaging instructions and use any
packaging materials that are supplied to you for shipping.
Installing an optical drive
To install an optical drive, do the following:
1. Prepare your server. See “Preparing your server and removing the server cover” on page 41.
2. Remove the front bezel. See “Removing the front bezel” on page 42.
3. If there is a metal shield covers the drive bay, remove the metal shield. Save the metal shield in case that
you later remove the drive and need the metal shield to cover the drive bay.
4. If needed, remove the drive bay retainer from the server. Push the retainer downwards to unlock it and
then lift it out of the chassis.

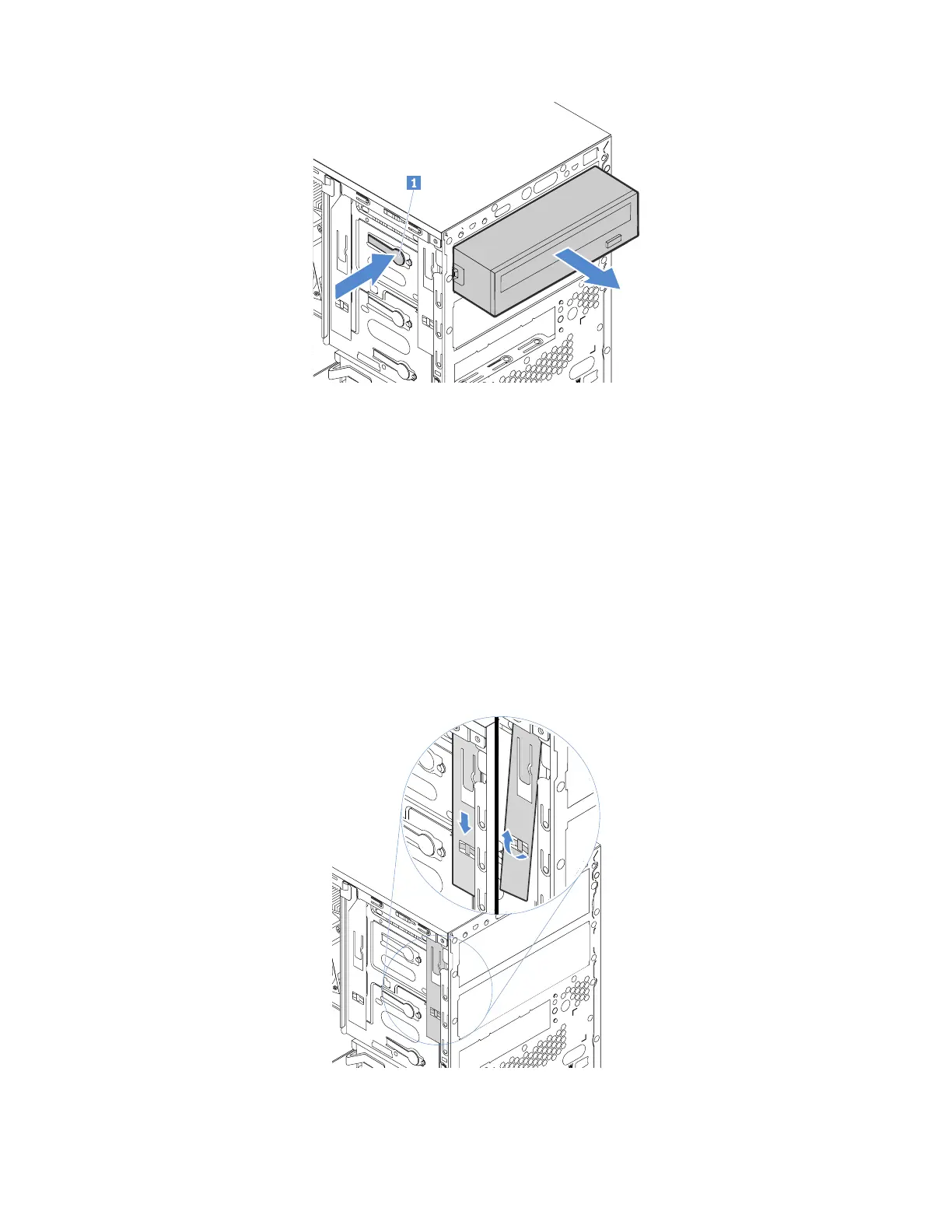

Figure 18. Removing the retainer
Chapter 5. Replacing hardware 47
