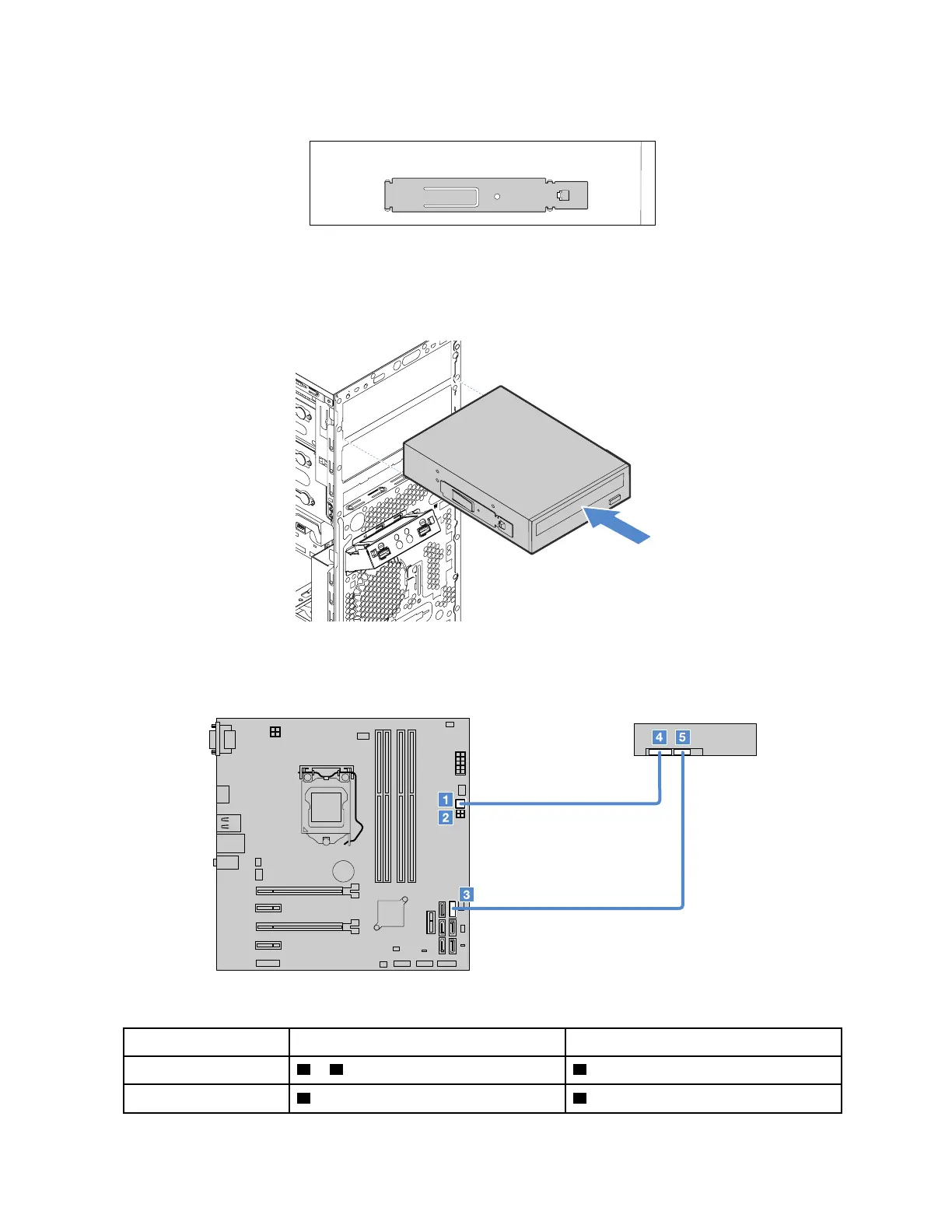

5. Install the retainer on the side of the optical drive.
Figure 19. Installing the retainer
6. Hold the optical drive in correct orientation and then slide it into the optical drive bay until it snaps into
position.
Figure 20. Installing the optical drive into the drive bay
7. Connect cables to the optical drive.
Figure 21. Connecting cables to the optical drive
Cable
From the system board To the optical drive
1-to-3 power cable
1 or 2 4-pin power connector 4 Power connector on the optical drive
Signal cable
3 SATA connector 5 5 Signal connector on the optical drive
48 ThinkServer TS150 User Guide and Hardware Maintenance Manual
