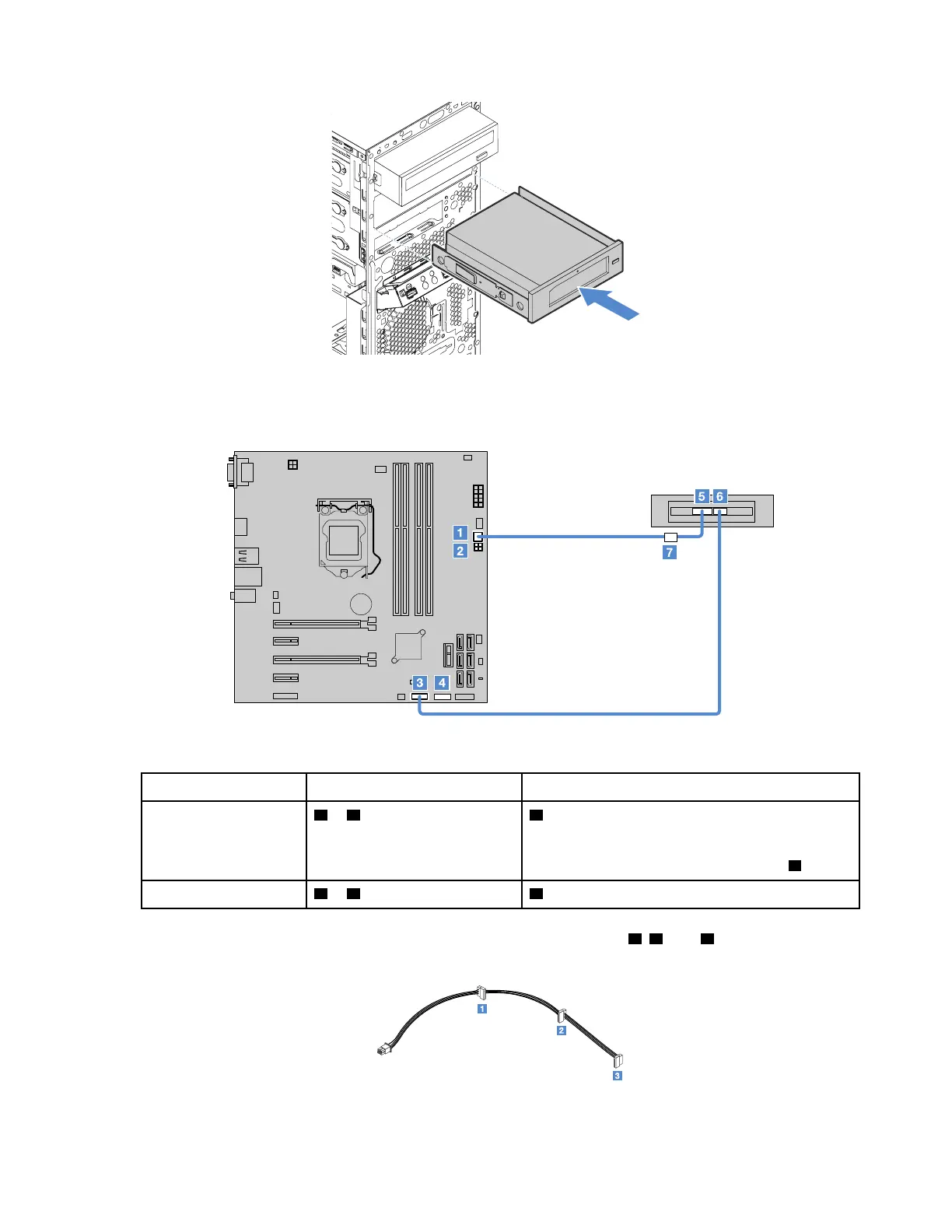

Figure 25. Installing the tape drive into the drive bay
7. Connect cables to the tape drive.
Figure 26. Connecting cables to the tape drive
Cable From the system board To the tape drive
1-to-3 power cable
1 or 2 4-pin power connector
7 SATA power connector on the power cable of the
tape drive
Note: The tape drive comes with a power cable
that is connected to the power connector
5 .
Signal cable
3 or 4 USB 2.0 connector 6 Signal connector on the tape drive
Note: The 1-to-3 power cable provides three SATA power connectors 1 , 2 , and 3 . You can connect
any one of the SATA connectors to the power cable of the tape drive.
Chapter 5. Replacing hardware 51
