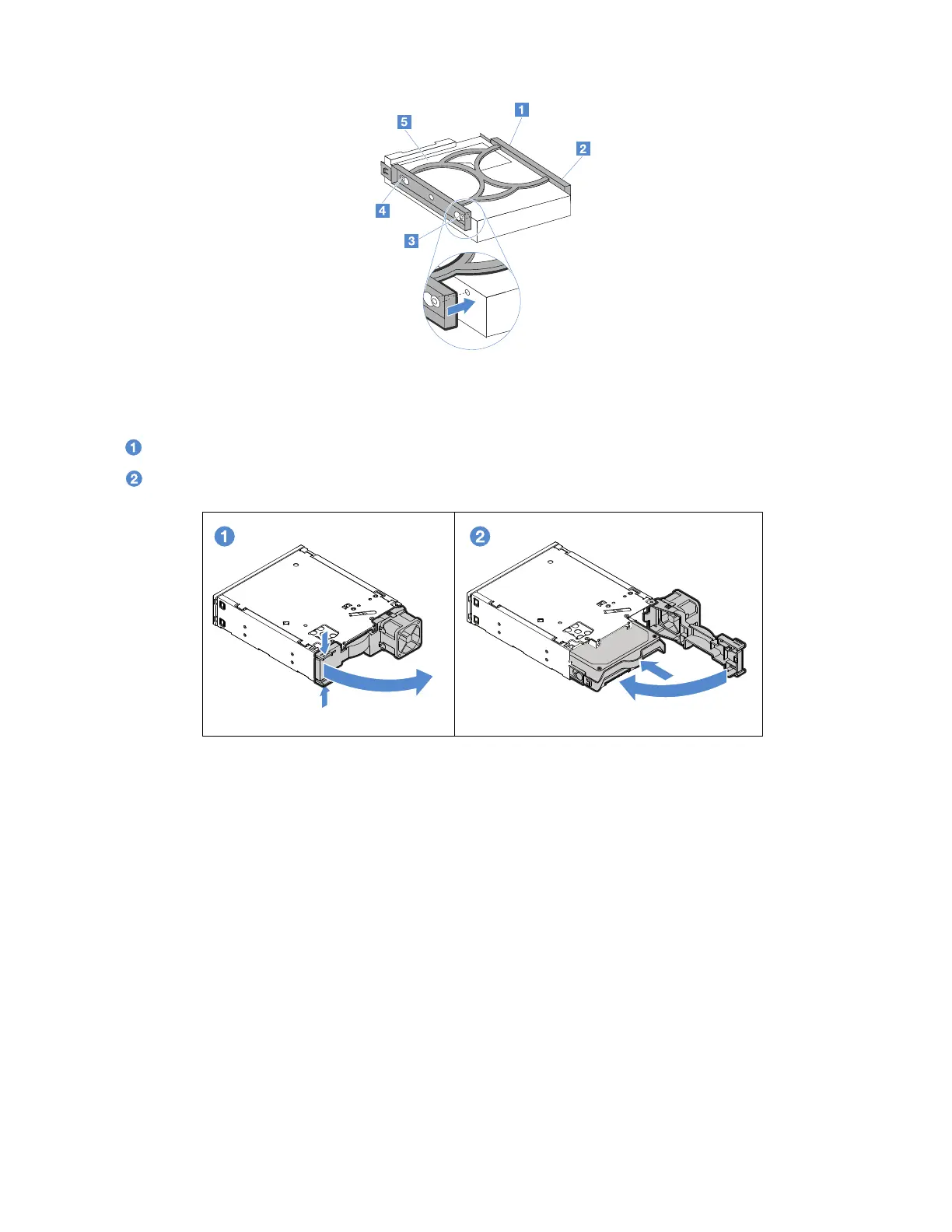

Figure 52. Installing the storage drive into the drive bracket
5. Install the storage drive into the HDD and slim ODD convertor kit.
Squeeze the release buttons as shown to open the rear cover of the convertor kit.
Slide the drive into the kit until it snaps into position. Then, close the rear cover.
Figure 53. Installing the storage drive into the convertor kit
6. If needed, remove the drive bay retainer from the server. Push the retainer downwards to unlock it and
then lift it out of the chassis.
