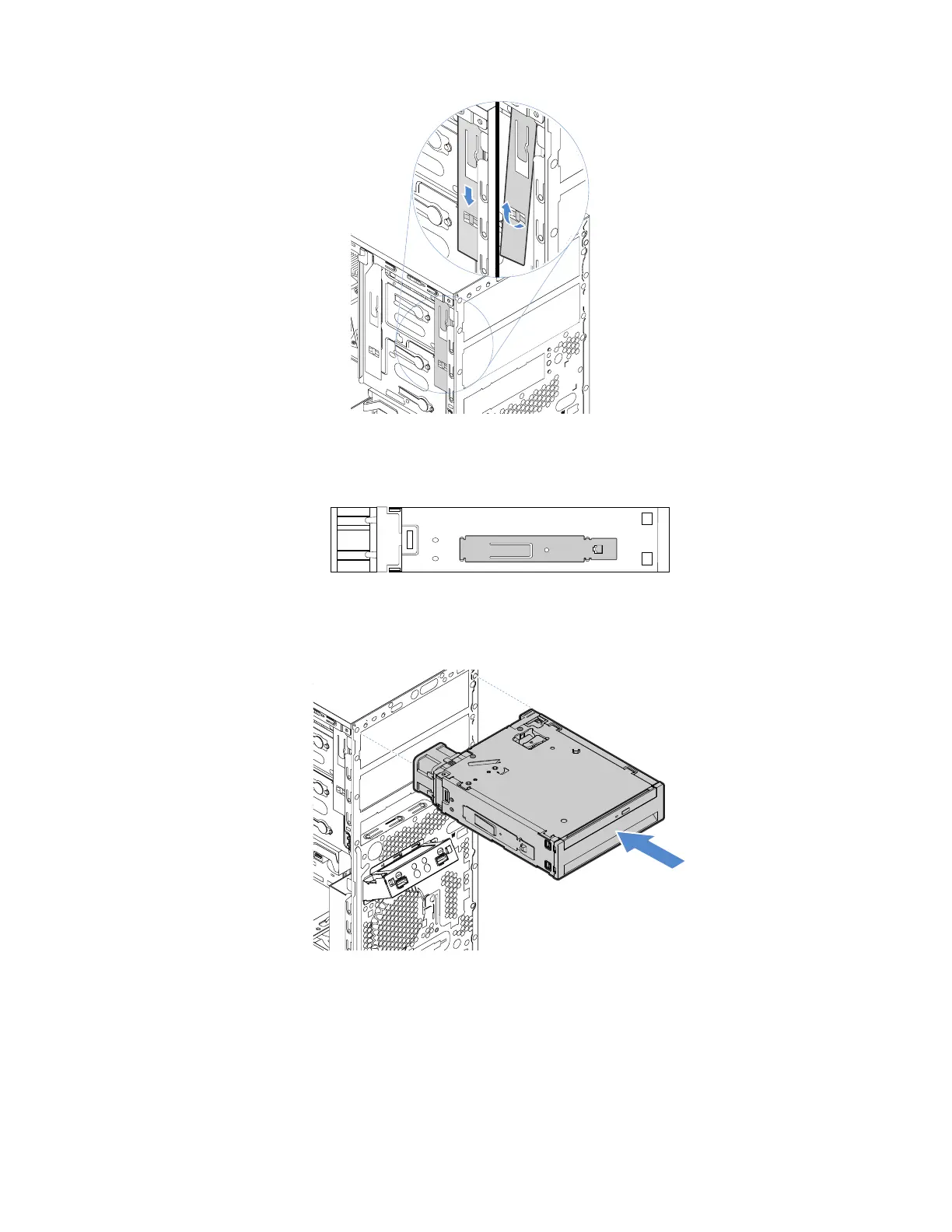

Figure 54. Removing the retainer
7. Install the retainer on the side of the HDD and slim ODD convertor kit.
Figure 55. Installing the retainer
8. Slide the HDD and slim ODD convertor kit into the drive bay until it snaps into position.
Figure 56. Installing the convertor kit into the drive bay
9. Connect cables to the drives and convertor kit.
Chapter 5. Replacing hardware 67
