Figure 77. Installing the front fan assembly
6. Connect the front fan assembly cable to the front system fan connector on the system board. See
“System board components” on page 19.
Rear fan assembly
• “Removing the rear fan assembly” on page 82
• “Installing the rear fan assembly” on page 83
Removing the rear fan assembly
To remove the rear fan assembly, do the following:
1. Prepare your server. See “Preparing your server and removing the server cover” on page 41.
2. Locate the rear fan assembly. See “Server components” on page 16.
3. Disconnect the cable of the rear fan assembly.

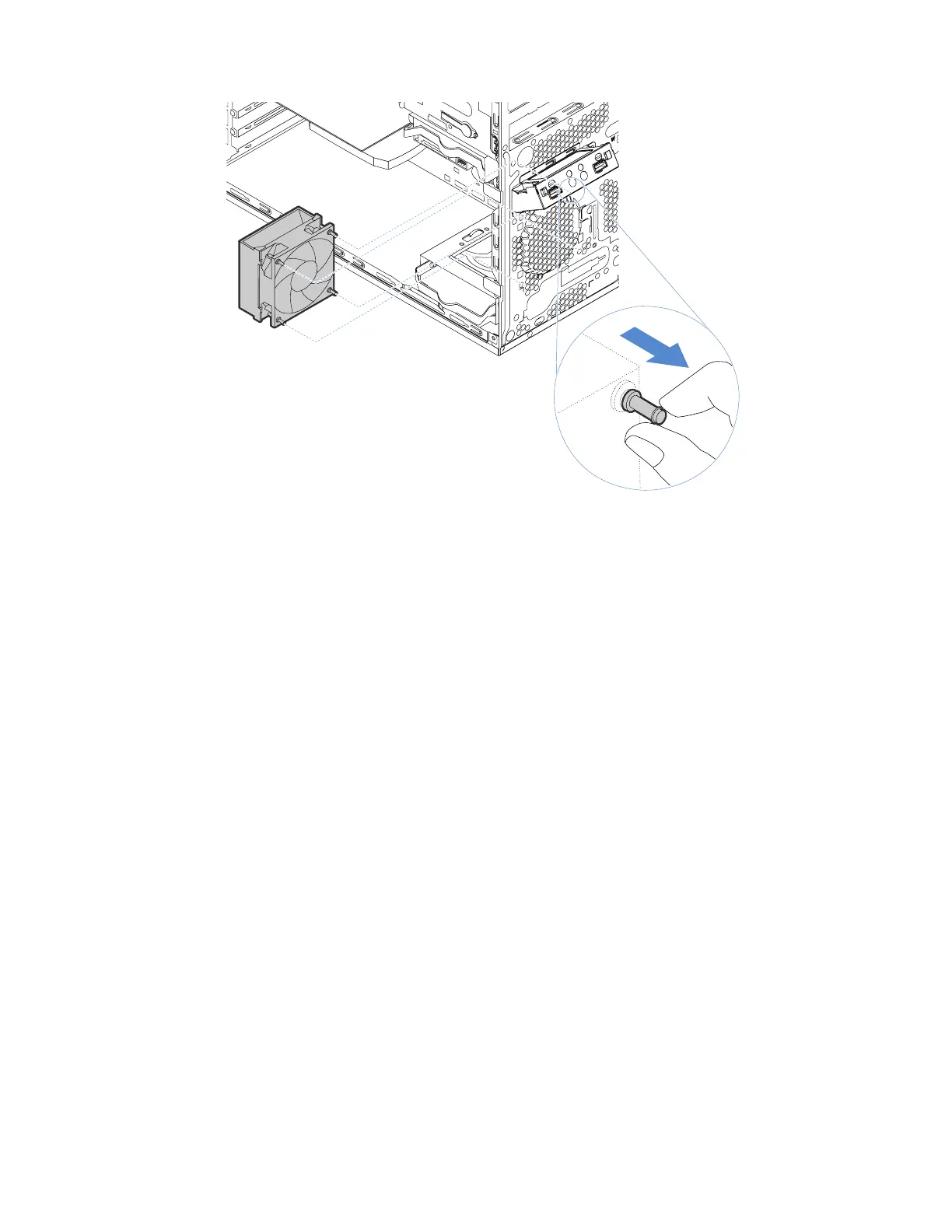

4. The rear fan assembly is attached to the chassis by four rubber mounts. Break or cut the rubber mounts
and gently pull the rear fan assembly out of the chassis.
Note: A new rear fan assembly comes with four new rubber mounts.
82
ThinkServer TS150 User Guide and Hardware Maintenance Manual
