Chapter 2. Server components
This section contains information about each of the components associated with the server.
Front view
The front view of the server varies by model. Depending on the model, your server might look slightly
different from the illustrations in this topic.
Refer to the following front view for different server models:
•
“Server model with four 2.5-inch drive bays” on page 17
• “Server model with eight 2.5-inch drive bays” on page 18
• “Server model with ten 2.5-inch drive bays” on page 19
• “Server model with 16 EDSFF drives” on page 19
• “Server model with 2.5-inch drive bays (backplane-less)” on page 20
• “Server model with eight 2.5-inch drive bays (with LCD diagnostics panel assembly)” on page 21
• “Server model with 16 EDSFF drives (with LCD diagnostics panel assembly)” on page 21
• “Server model with 16 EDSFF drives and an M.2 cage” on page 22

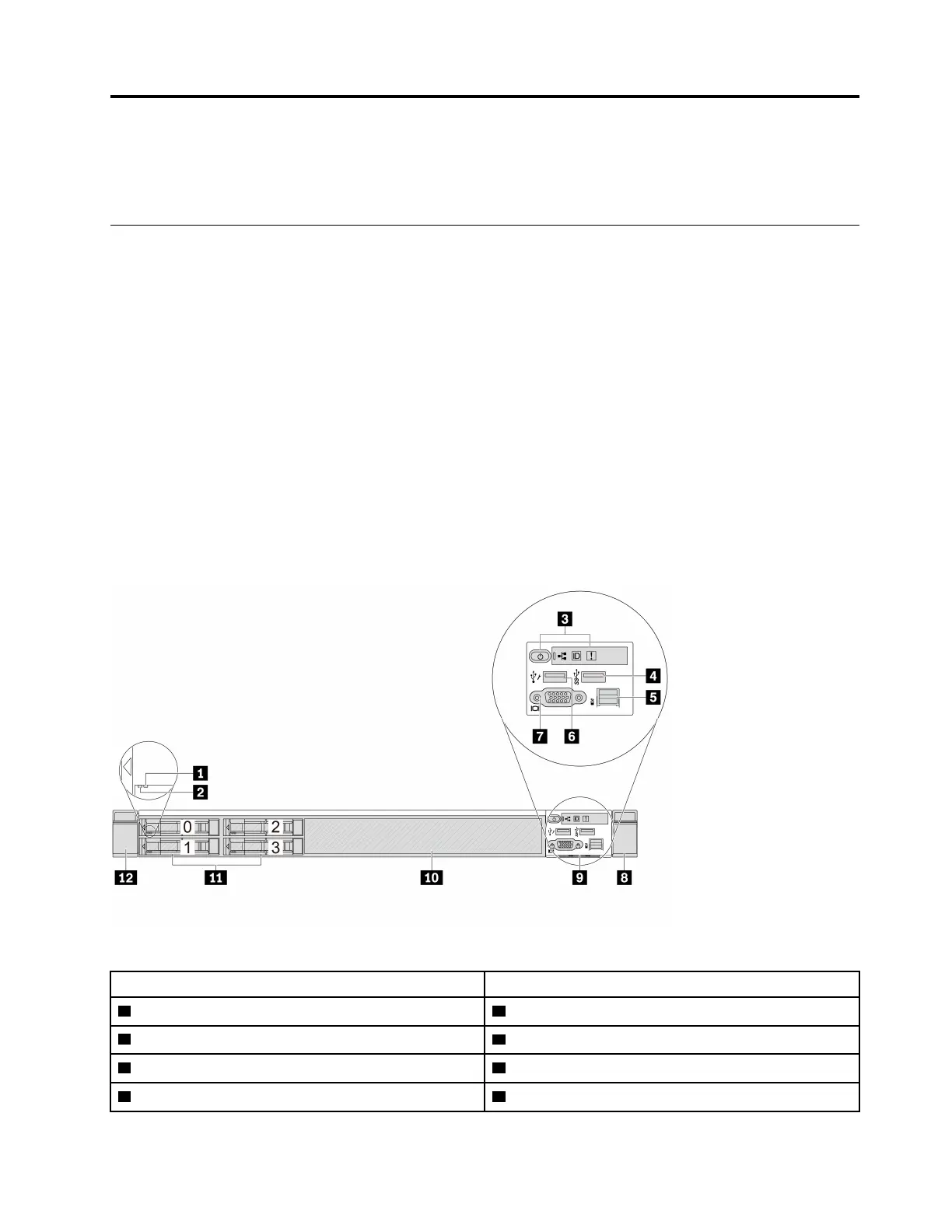

Server model with four 2.5-inch drive bays
Table 3. Components on the front of the server
Callout Callout
1 Drive status LED 2 Drive activity LED
3 Diagnostics panel
4 USB 3.1 Gen 1 (5Gbps) connector
5 External LCD connector 6 XClarity Controller USB connector
7 VGA connector (optional) 8 Rack latch (right)
© Copyright Lenovo 2023 17
