Cable
This part describes the following option kits:
• “ThinkSystem SR645 4 x 2.5" SAS/SATA cable kit” on page 13
• “ThinkSystem SR645 4 x 3.5" SAS/SATA Backplane cable kit” on page 15
• “ThinkSystem SR645 4 x 3.5" AnyBay Backplane cable kit” on page 16
• “ThinkSystem SR645 8 x 2.5" SAS/SATA Backplane cable kit” on page 17
• “ThinkSystem SR645 10 x 2.5" AnyBay Backplane SAS/SATA cable kit” on page 18
• “ThinkSystem SR645 10 x 2.5" AnyBay Backplane NVMe cable kit” on page 19
• “ThinkSystem SR645 6 x SAS/SATA 4 x AnyBay 2.5" Backplane SAS/SATA cable kit” on page 20
• “ThinkSystem SR645 6 x SAS/SATA 4 x AnyBay 2.5" Backplane NVMe cable kit” on page 21
• “ThinkSystem SR645 M.2 cable kit” on page 22
• “ThinkSystem 1U Front VGA cable kit” on page 23

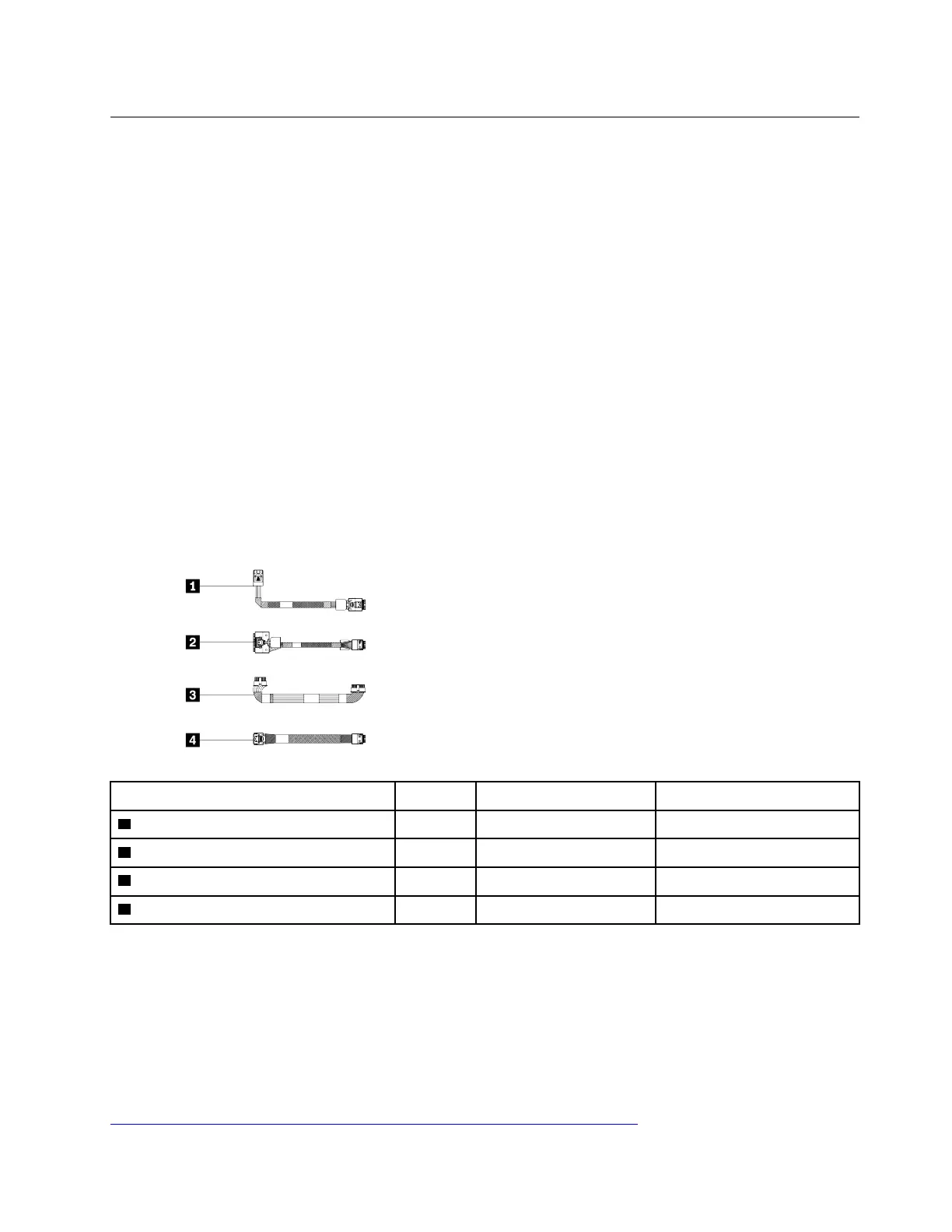

ThinkSystem SR645 4 x 2.5" SAS/SATA cable kit
This topic provides important information about ThinkSystem SR645 4 x 2.5" SAS/SATA cable kit. The option
package contains the following items:
Description
Qty
From To
1 SFF G3 cable
1
C0 (SFF) SAS (BP)
2 EXP SAS cable to rear BP
1
C3 EXP/C0 SAS (BP4)/SAS (BP)
3 Power cable 1 BP Pwr Power (BP)
4 On-board front 4 x 2.5" SAS/SATA
1
PCIe2 (MB) SAS (BP)
EXP: RAID expansion adapter, next to CFF RAID adapter, between fans and front backplane
MB: motherboard
SFF: RAID adapter installed in rear PCIe riser slots
Note:
Some cables may not be used in certain configurations.
For information about installing the option product, refer to the Internal cable routing chapter in the Setup
Guide, or go to:
https://thinksystem.lenovofiles.com/help/topic/7D2X/internal_cable_routing.html.
Chapter 1 System options 13
