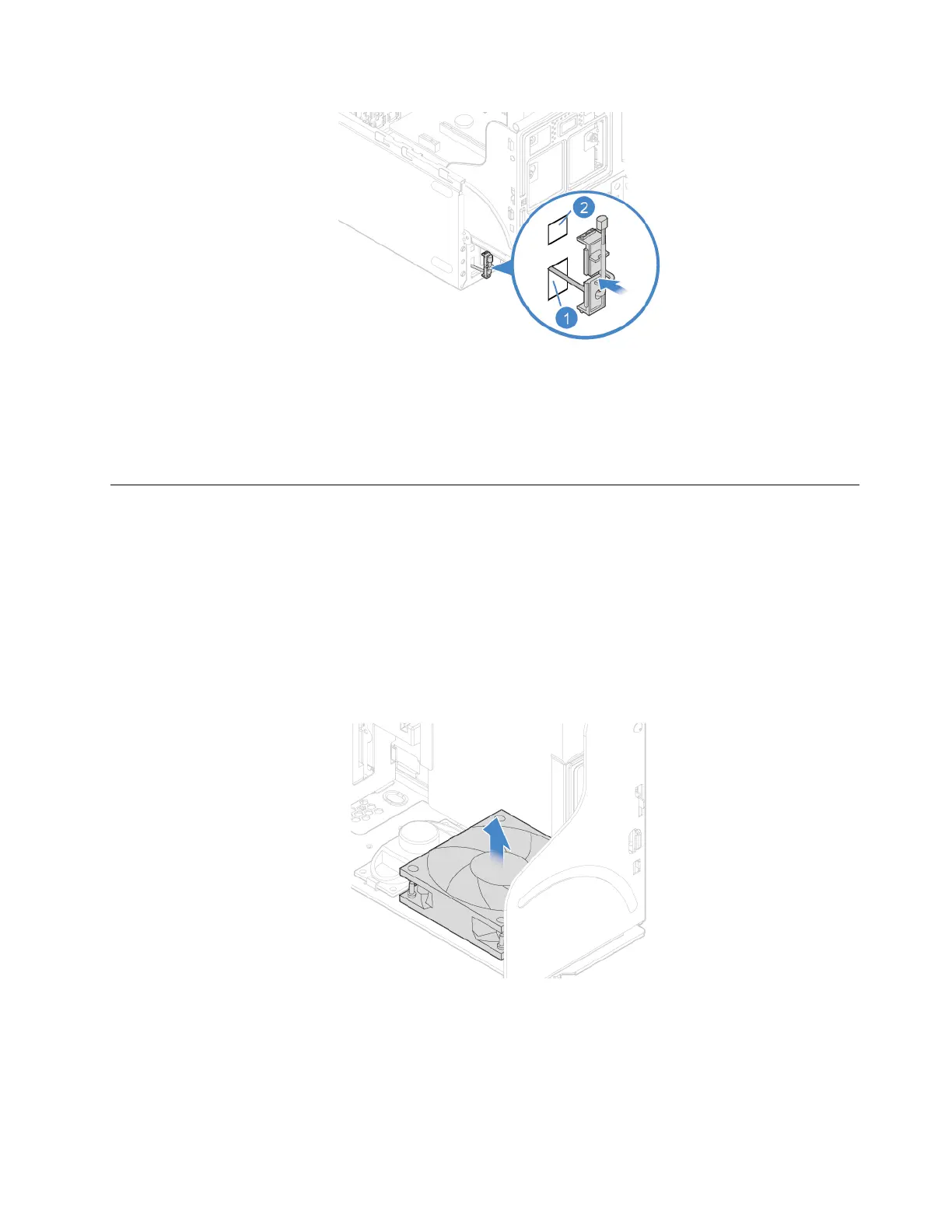

Figure 62. Installing the thermal sensor
6. Connect the new thermal sensor cable to the system board.
7. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing the front fan
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Pivot the drive bay assembly upward. See “Pivoting the drive bay assembly upward and downward” on
page 18.
4. Disconnect the front fan cable from the system board.
5. Replace the front fan.
Figure 63. Removing the front fan
Chapter 4. Replacing hardware 41
