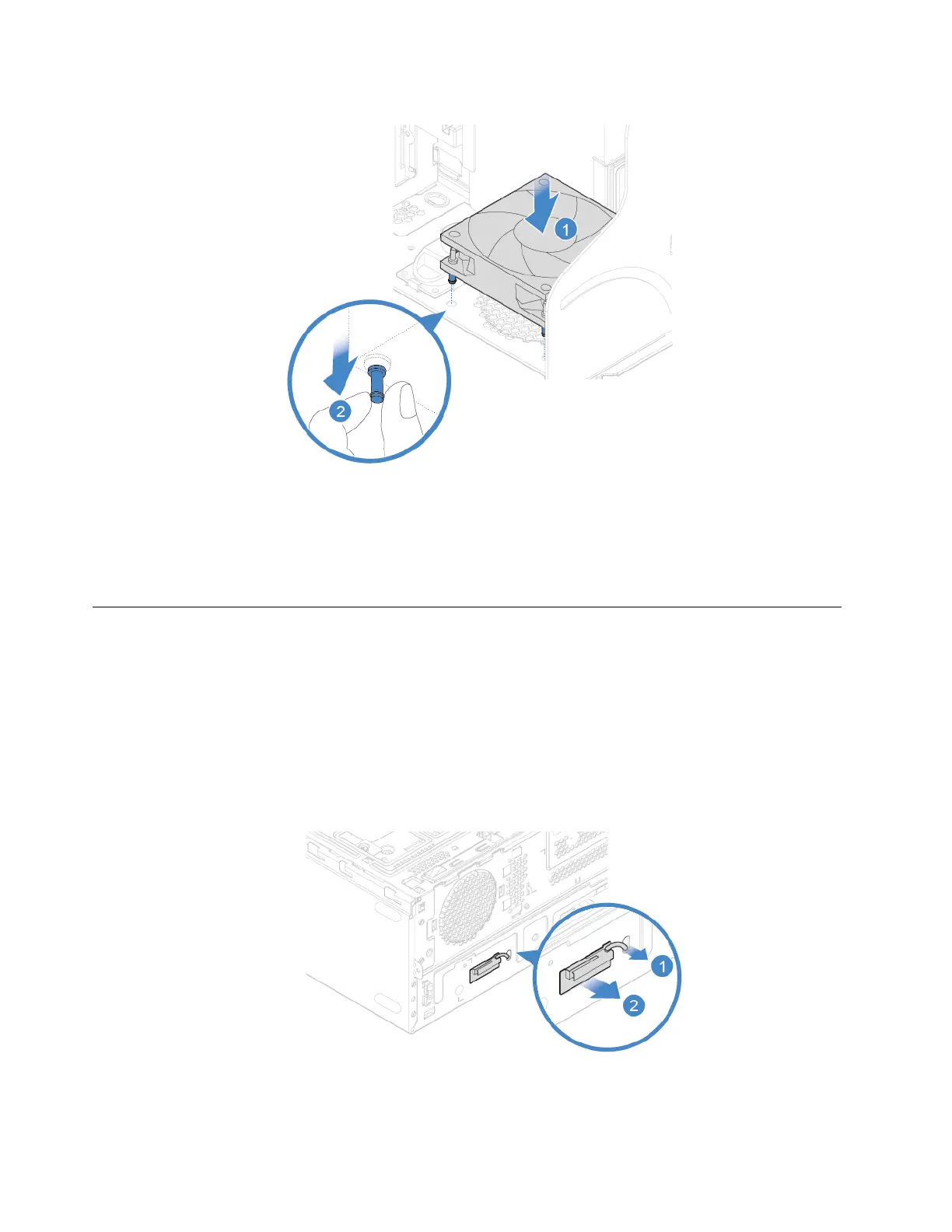

Figure 64. Installing the front fan
6. Connect the new front fan cable to the system board.
7. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing the Wi-Fi antennas
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Disconnect the Wi-Fi antenna cables from the Wi-Fi card. See “Replacing the Wi-Fi card” on page 29.
4. Refer to the following to replace the Wi-Fi antennas.
• Front Wi-Fi antenna
Figure 65. Removing the front Wi-Fi antenna
42 V530-15ICB User Guide and Hardware Maintenance Manual
