4.2 Connecting the manual control LH101 to the
LZV200

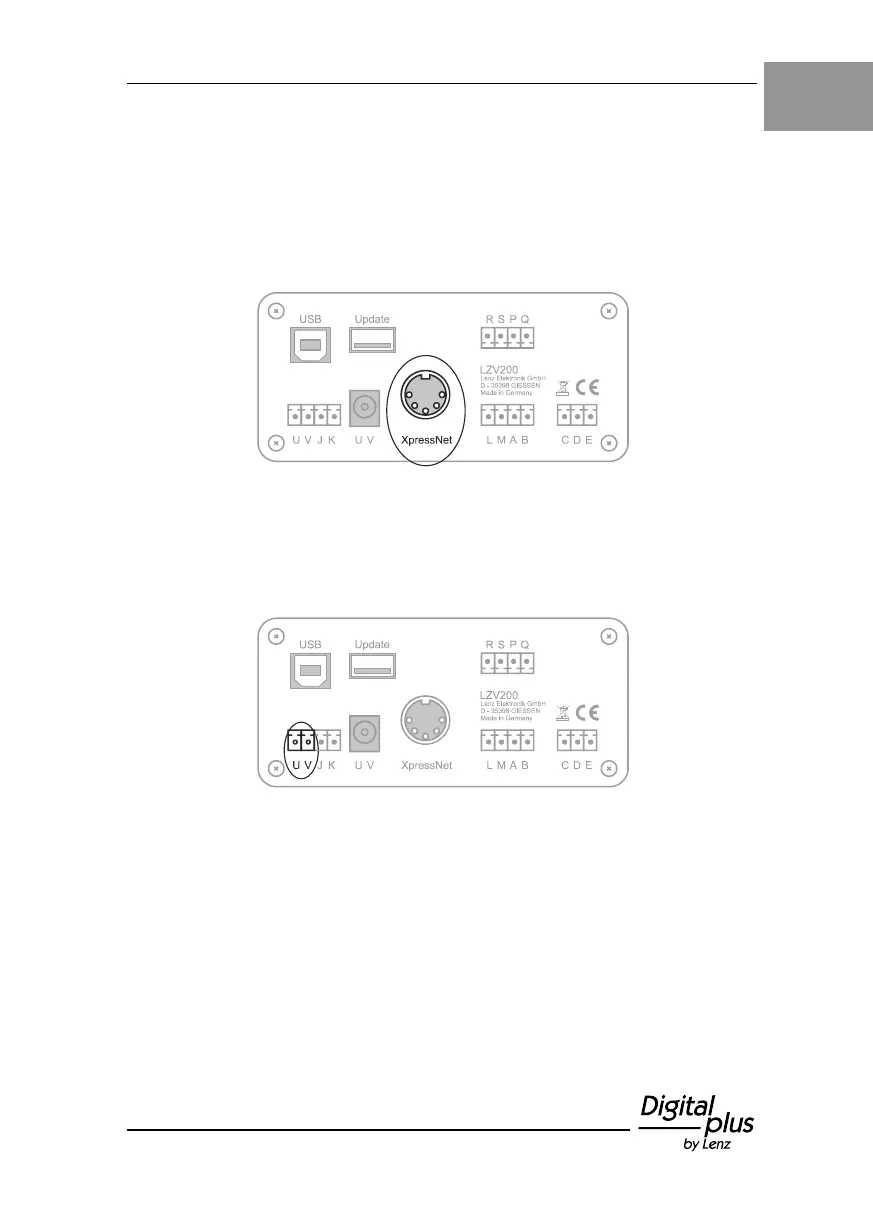

Plug the 5-pole DIN-plug of the connecting cable into the 5-pole DIN-
plug at the rear of your LZV200:
4.3 Connecting the LZV200 to the transformer
Connect terminals U and V of the LZV200 to the connecting terminals
of the transformer TR100 (or TR200)
Connections U,V to the power supply of the LZV200
