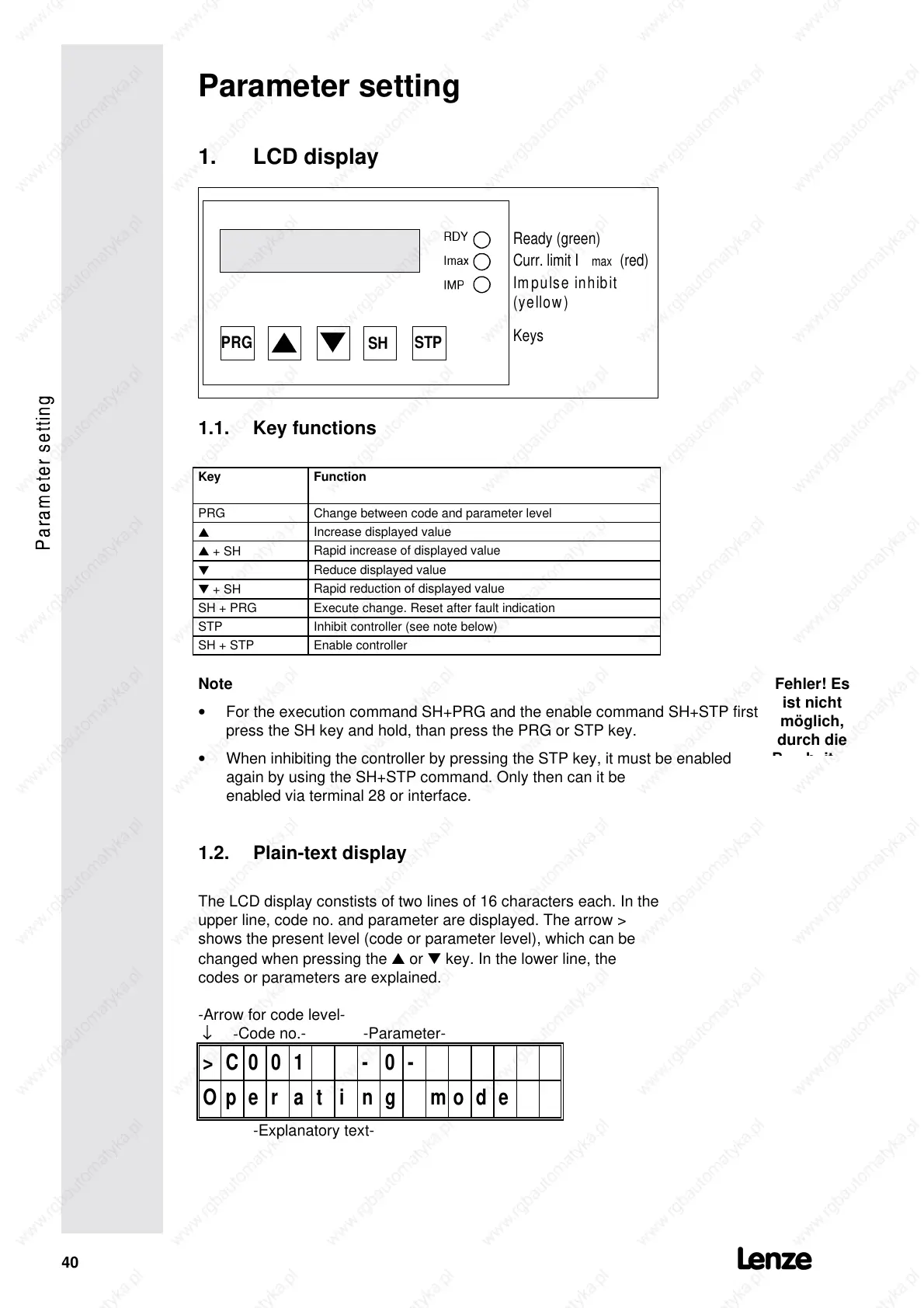

Parameter setting
1. LCD display
Ready (green)
Curr. limit I
max
(red)
Impulse inhibit
(yellow)
Keys
SH
STPPRG
1.1. Key functions
Key Function
PRG Change between code and parameter level
▲
Increase displayed value
▲
+ SH
Rapid increase of displayed value
▼
Reduce displayed value
▼
+ SH
Rapid reduction of displayed value
SH + PRG Execute change. Reset after fault indication
STP Inhibit controller (see note below)
SH + STP Enable controller
Note
•
For the execution command SH+PRG and the enable command SH+STP first
press the SH key and hold, than press the PRG or STP key.
•
When inhibiting the controller by pressing the STP key, it must be enabled
again by using the SH+STP command. Only then can it be
enabled via terminal 28 or interface.
1.2. Plain-text display
The LCD display constists of two lines of 16 characters each. In the
upper line, code no. and parameter are displayed. The arrow >
shows the present level (code or parameter level), which can be
changed when pressing the
▲
or
▼
key. In the lower line, the
codes or parameters are explained.
-Arrow for code level-
↓
-
Code no.- -Parameter-
>C001 - 0-
Operat i ng mode
-Explanatory text-
