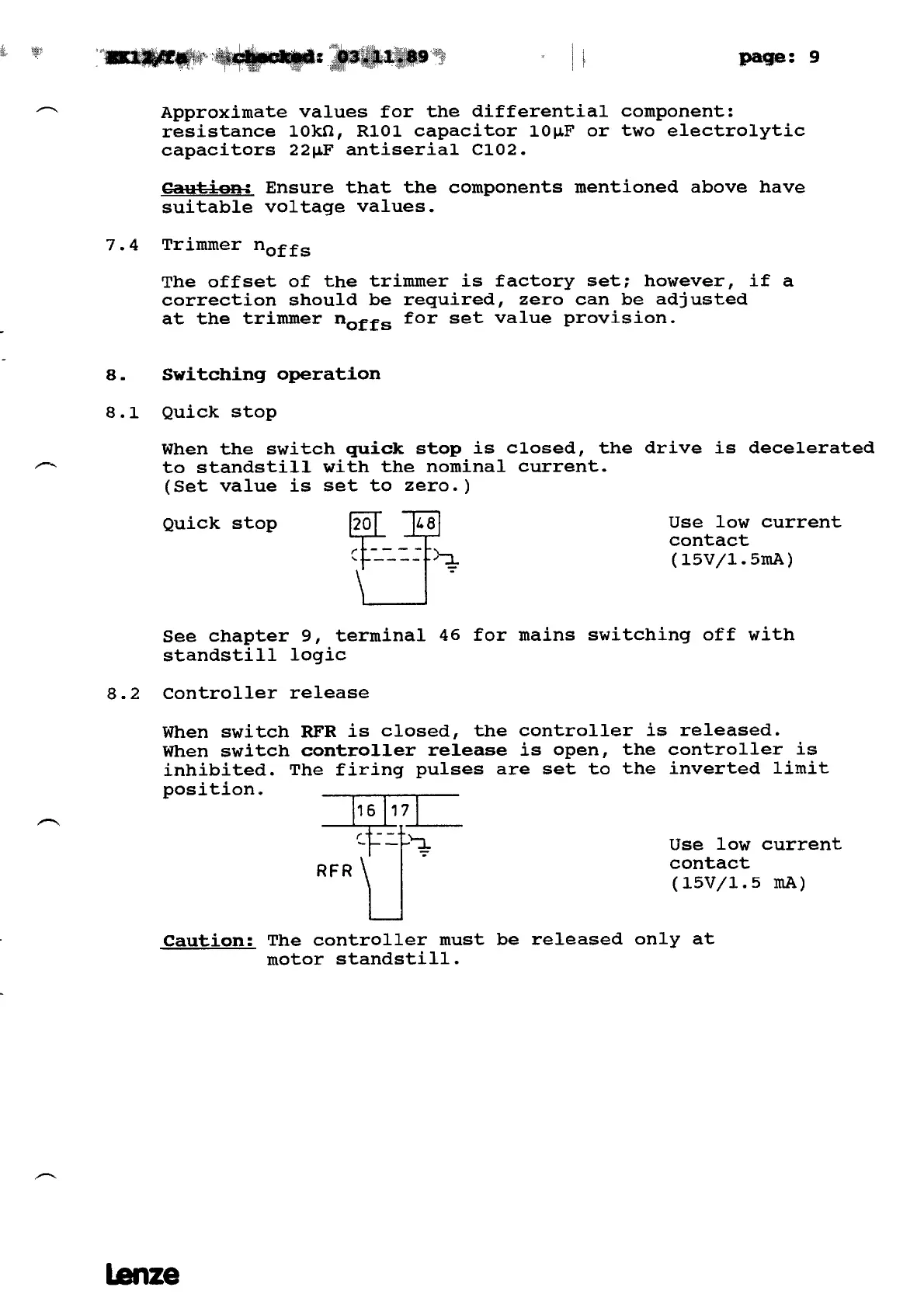

I2~%~: ~ •3.U.89 page: 9
Approximate values for the differential component:
resistance bOkfl, RiOl capacitor 10~F or two electrolytic
capacitors 22p.F antiserial 0102.
Caution: Ensure that the components mentioned above have
suitable voltage
values.
7.4 Trimmer n
0ff5
The offset of the trimmer is factory set; however, if a
correction should be required, zero can be adjusted
at the trimmer for set value provision.
8. Switching operation
8.1 Quick stop
When the switch quick stop is cbosed, the drive is decelerated
to standstill with the nominal current.
(Set value is set to Zero.)
Quick stop 20 48 Use bw current
contact
(15V/1.5mA)
See chapter 9, terminal 46 for mains switching off with
standstill logic
8.2 dontroller release
When switch RFR is closed, the controller is released.
When switch controller release is open, the controller is
inhibited. The firing pulses are set to the inverted limit
position.
Use bw current
RFR contact
(15V/1.5 mA)
Caution: The controller must be released only at
motor standstill.
16 ji?
Lanze
