Lenze 8400 StateLine C - Page 131

Mechanical installation
Standard devices in the power range 3 ... 22 kW
Mounting in "cold plate" technique
5
l
131
EDS84ASC552 EN 8.1
TopLine
8400GG106c

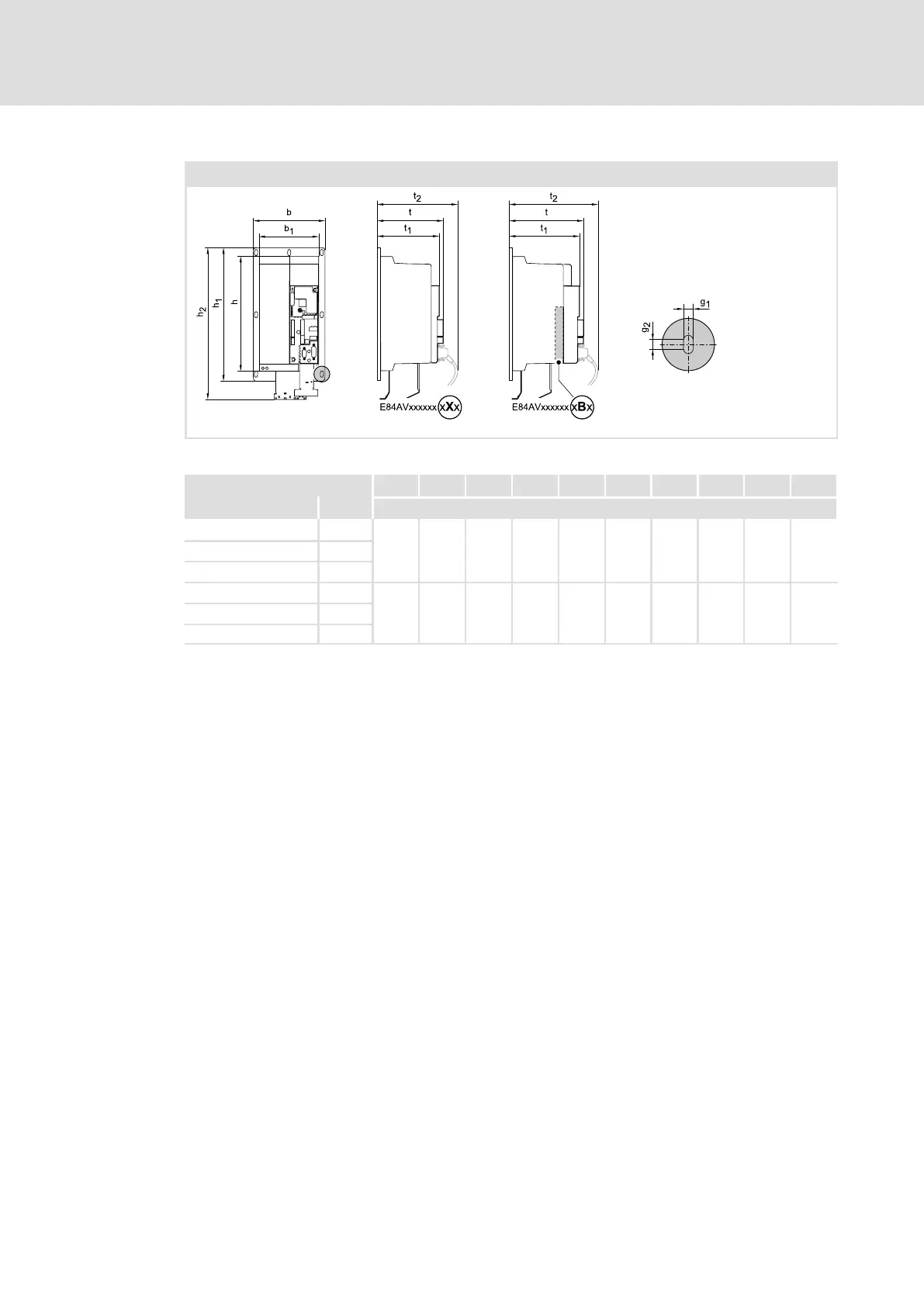

Fig. 5−35 Device dimensions
h b t h
1
h
2
b
1
t
1
t
2
g
1
g
2
[kW] [mm]
E84AVTCC3024xX0 3
270 174 156 318 366 140 143 182 6 5
E84AVTCC4024xXx 4
E84AVTCC5524xXx 5.5
E84AVTCC3024xB0 3
270 174 176 318 366 140 163 202 6 5
E84AVTCC4024xBx 4
E84AVTCC5524xBx 5.5
