3.5 Device description
DVI/USB Extender technology is used for setting up a decentralised structure
between a computer unit (IPC/controller) and a display unit (monitor panel) on
industrial premises. That way PC−based visualisation and control solutions can
be implemented in different environments which require separate operating
and computing units.
The system includes a DVI/USB transmitter (TX4) which is mounted near the
computer unit, and a DVI/USB receiver (RX4) which can be mounted to or into
a display unit.
All signals − digital real time picture information, USB peripherals, mouse, and
keyboard − are transmitted via a TwinLAN cable. The voltage for the panel is also
supplied via this cable.

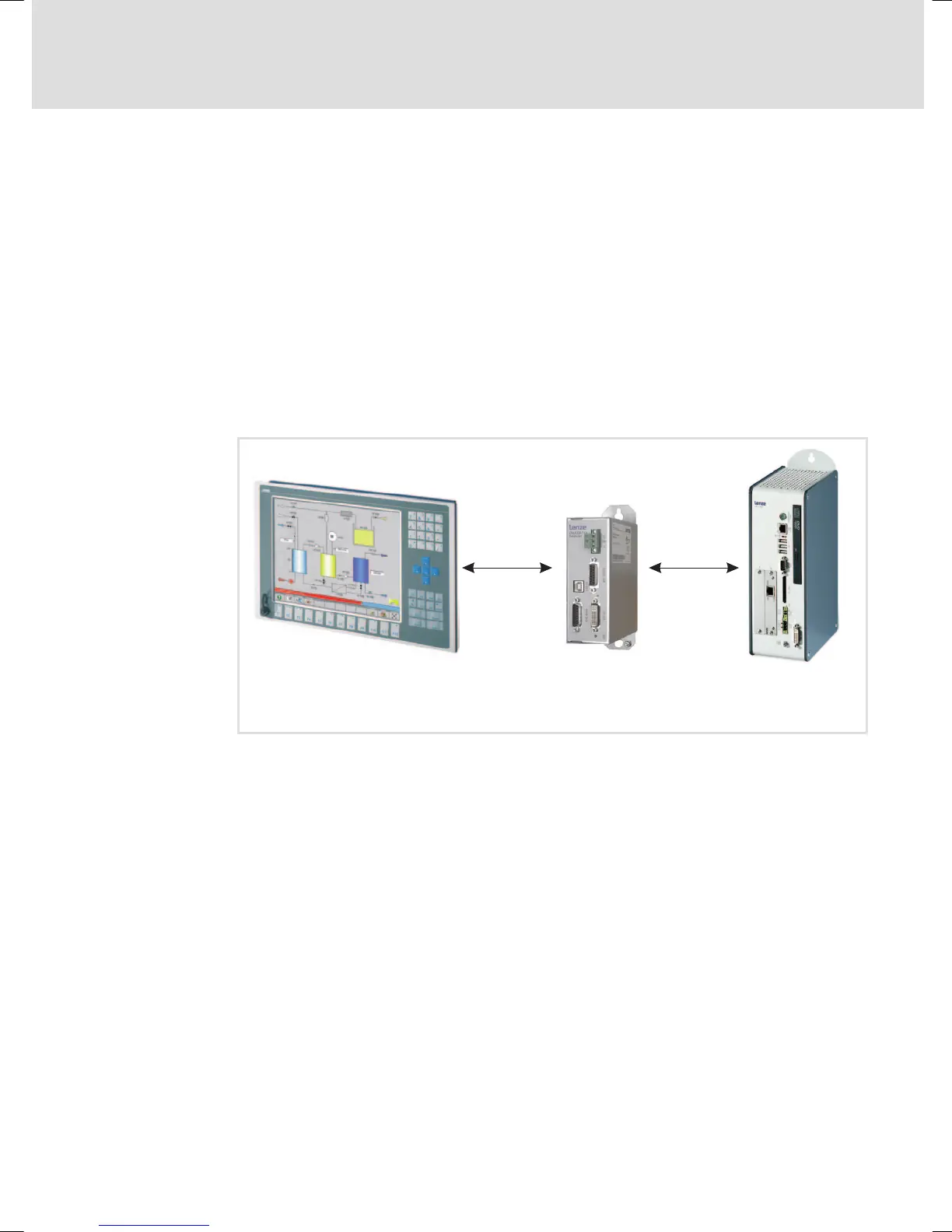

Monitor Panel
with DVI/USB Receiver
DVI/USB Transmitter
IPC/Controller
(here: CPC 2800)
DVIUSB−002
Accessories
ƒ Transmission cable TwinLAN 10 m
ƒ Transmission cable TwinLAN 15 m
ƒ Transmission cable TwinLAN 20 m
ƒ Transmission cable TwinLAN 25 m
ƒ Transmission cable TwinLAN 30 m
ƒ Transmission cable TwinLAN 35 m
Optional accessories
(The scope of supply contains a DVI cable and a USB cable; length 2 m each)
ƒ Cable set DVI/USB 5 m
