Mechanical installation
DVI/USB RX4 mounting
5
l
51
BA_DVIUSB DE/EN 5.0
5.3 DVI/USB RX4 mounting
1
0
0
1
DVIUSB−005
The RX4 DVI/USB can be mounted to the following systems:
MP system: to the back of the device
CS system: into the mounting frame on the mounting plate
The procedure is the same for both systems.
How to proceed:

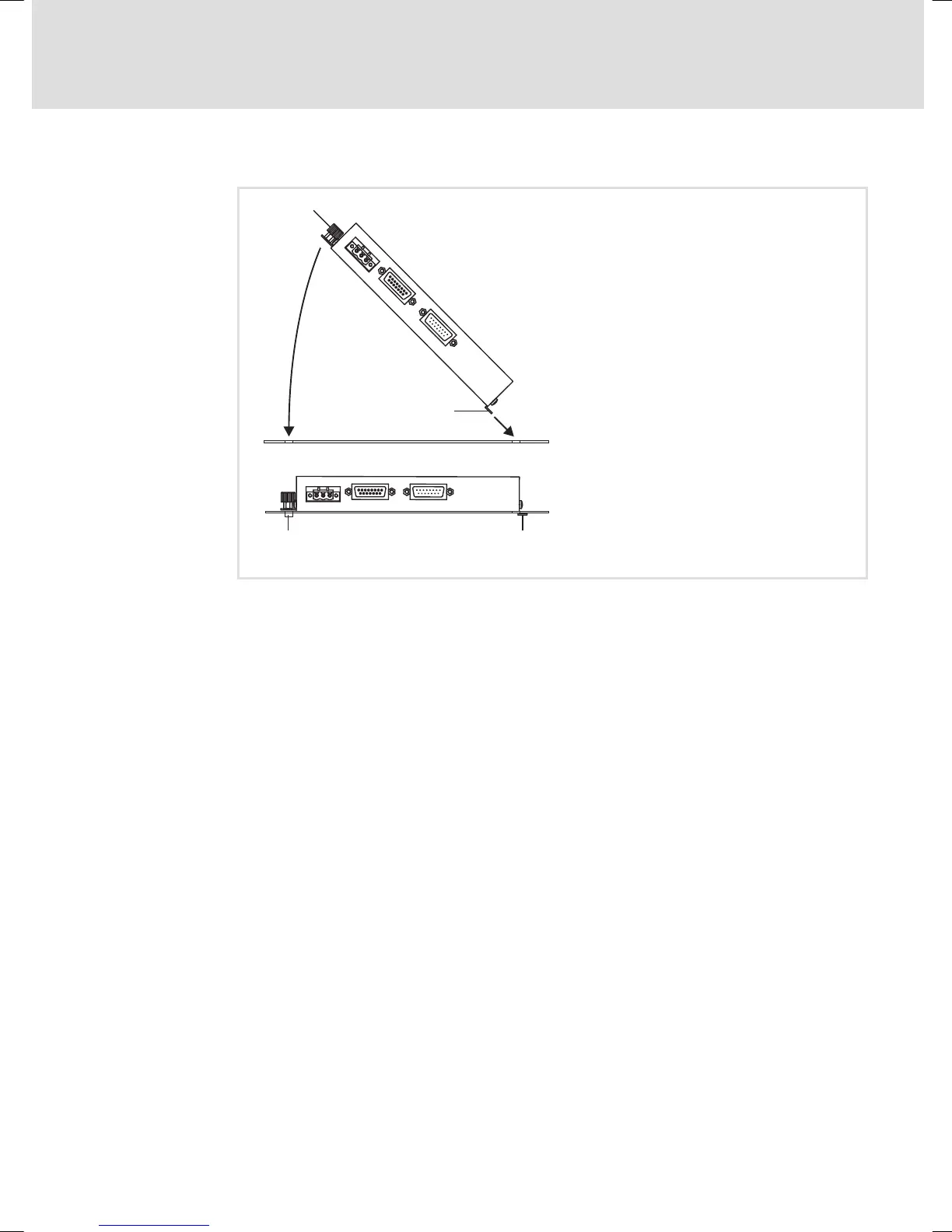

1. Position the DVI/USB RX4 in a way that the two noses 0 fit into the holes
of the MP housing or the CS mounting frame.
2. Manually tighten the knurled screw 1 on the opposite side of the
DVI/USB RX4.
