Installation
3 Installation

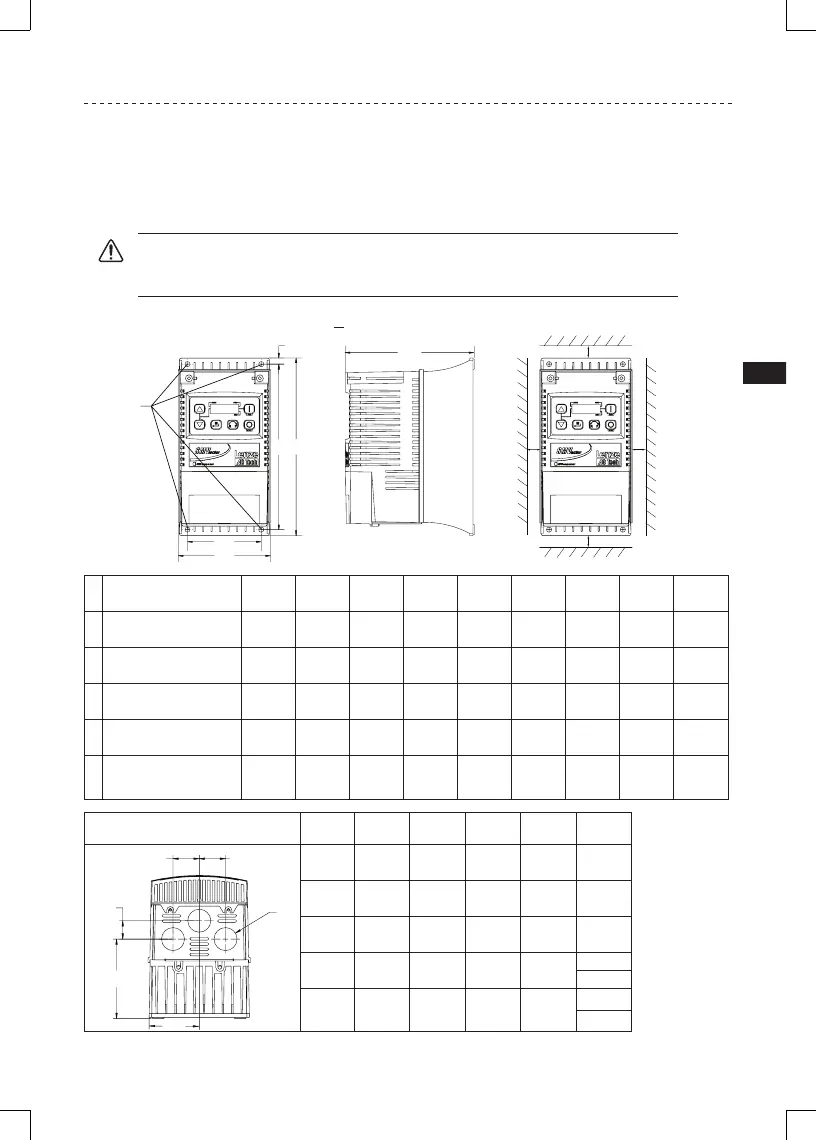

3.1 Dimensions and Mounting
WARNING!
Drives must not be installed where subjected to adverse environmental conditions such as:
combustible, oily, or hazardous vapors; corrosive chemicals; excessive dust, moisture or vibration;
direct sunlight or extreme temperatures.
3.1.1 NEMA 1 (IP31) Models < 30HP (22kW)
b2
b1
b
a
a1
c
s1 s1
s2
s2
Mounting Screws
4 x #10
18 lb-in
4 x M5
20 Nm
()
Type
a
in (mm)
a1
in (mm)
b
in (mm)
b1
in (mm)
b2
in (mm)
c
in (mm)
s1
in (mm)
s2
in (mm)
m
lb (kg)
G1
ESV251~~~~~B;
ESV371~~~~~B
ESV751~~~~~B
3.90 (99) 3.12 (79) 7.48 (190) 7.00 (178) 0.24 (6) 4.35 (111) 0.6 (15) 2.0 (50) 2.0 (0.9)
G2
ESV112~~~~~B;
ESV152~~~~~B
ESV222~~~~~B
3.90 (99) 3.12 (79) 7.52 (191) 7.00 (178) 0.26 (7) 5.45 (138) 0.6 (15) 2.0 (50) 2.8 (1.3)
G3 ESV402~~~~~B 3.90 (99) 3.12 (79) 7.52 (191) 7.00 (178) 0.30 (8) 5.80 (147) 0.6 (15) 2.0 (50) 3.2 (1.5)
H1
ESV552~~~~~B;
ESV752~~~~~B
5.12 (130) 4.25 (108) 9.83 (250) 9.30 (236) 0.26 (7) 6.30 (160) 0.6 (15) 2.0 (50) 6.0 (2.0)
J1
ESV113~~~~~B;
ESV153~~~~~B
ESV183~~~~~B;
ESV223~~~~~B
6.92 (176) 5.75 (146) 12.50 (318) 11.88 (302) 0.31 (8) 8.09 (205) 0.6 (15) 2.0 (50) 13.55 (6.15)
Conduit Hole Dimensions Type
N
in (mm)
P
in (mm)
P1
in (mm)
Q
in (mm)
S
in (mm)
Q
N
Q
P
S
P1
G1 1.84 (47) 1.93 (49) .70 (18) 1.00 (25) .88 (22)
G2 1.84 (47) 3.03 (77) .70 (18) 1.00 (25) .88 (22)
G3 1.84 (47) 3.38 (86) .70 (18) 1.00 (25) .88 (22)
H1 2.46 (62) 3.55 (90) .13 (3) 1.38 (35)
1.13 (29)
.88 (22)
J1 3.32 (84) 4.62 (117) .73 (19) 1.40 (36)
1.31 (33)
.88 (22)
