Technical Data
3-4 820XBA1097

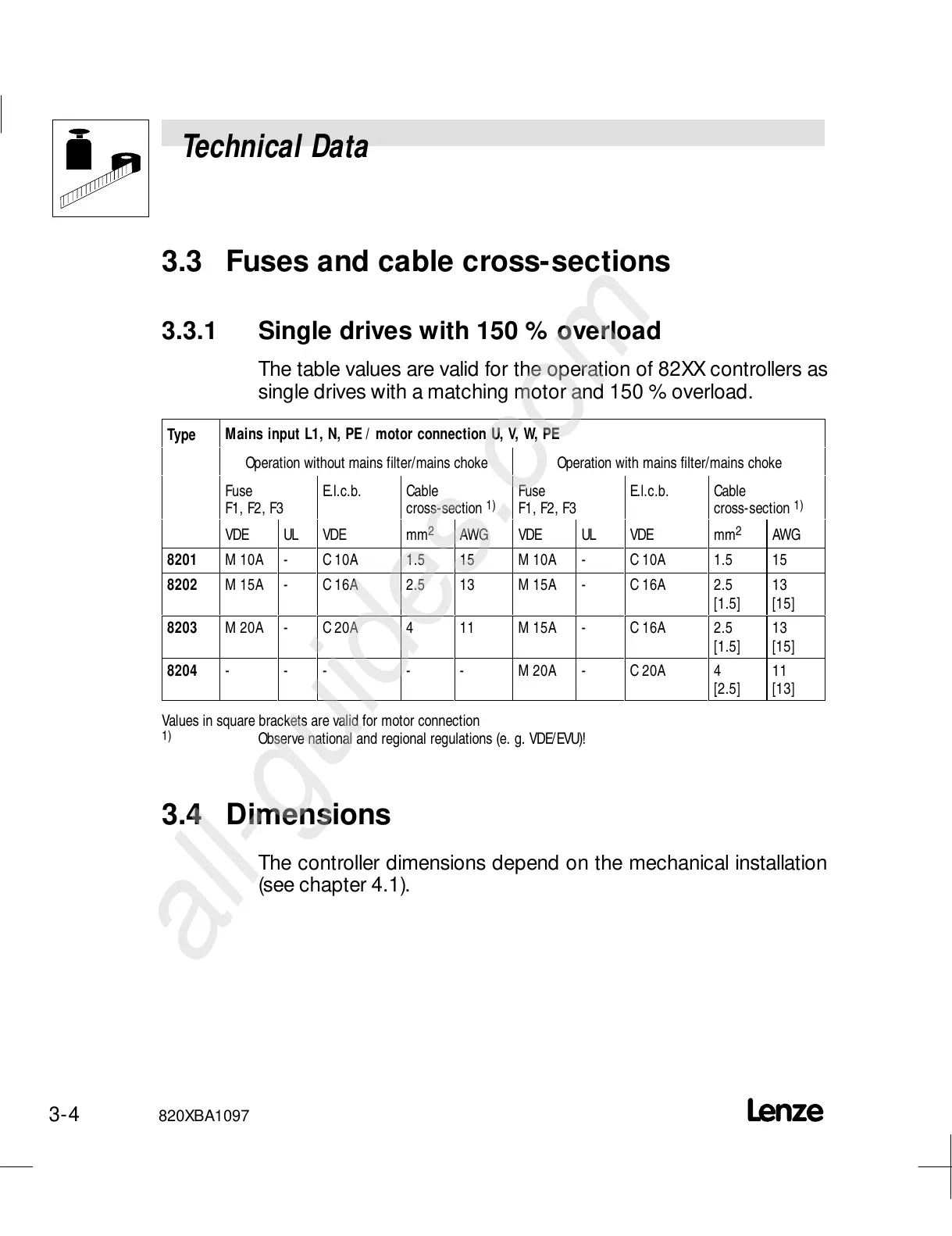

3.3 Fuses and cable cross-sections
3.3.1 Single drives with 150 % overload
The table values are valid for the operation of 82XX controllers as
single drives with a matching motor and 150 % overload.
Type
MainsinputL1,N,PE/motorconnectionU,V,W,PE
T
y
p
e
Operation without mains filter/mains choke Operation with mains filter/mains choke
Fuse
F1, F2, F3
E. l. c. b. Cable
cross-section
1)
Fuse
F1, F2, F3
E. l. c. b. Cable
cross-section
1)
VDE UL VDE mm
2
AWG VDE UL VDE mm
2
AWG
8201 M 10A - C10A 1.5 15 M 10A - C10A 1.5 15
8202 M 15A - C16A 2.5 13 M 15A - C16A 2.5
[1.5]
13
[15]
8203 M 20A - C20A 4 11 M 15A - C16A 2.5
[1.5]
13
[15]
8204 - - - - - M 20A - C20A 4
[2.5]
11
[13]
Values in square brackets are valid for motor connection
1)
Observe national and regional regulations (e. g. VDE/EVU)!
3.4 Dimensions
The controller dimensions depend on the mechanical installation
(see chapter 4.1).
