Lenze EVF8201-E

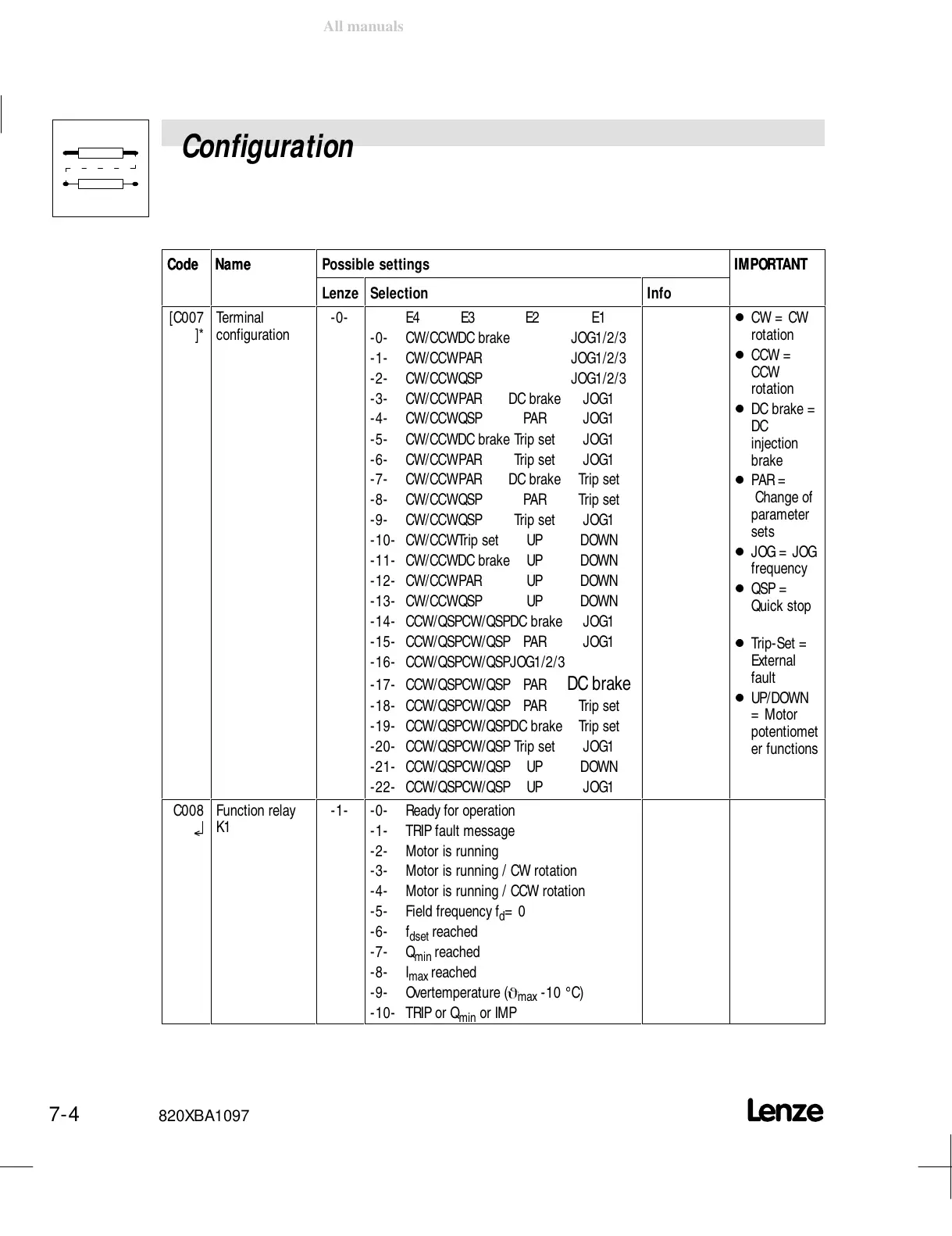

Configuration
7-4 820XBA1097
Code IMPORTANTPossible settingsNameCode IMPORTANT
InfoSelectionLenze
Name
[C007
]*
Te rm ina l
configuration
-0- E4 E3 E2 E1
-0- CW/CCWDC brake JOG1/2/3
-1- CW/CCWPAR JOG1/2/3
-2- CW/CCWQSP JOG1/2/3
-3- CW/CCWPAR DCbrake JOG1
-4- CW/CCWQSP PAR JOG1
-5- CW/CCWDC brake Trip set JOG1
-6- CW/CCWPAR Trip set JOG1
-7- CW/CCWPAR DC brake Trip set
-8- CW/CCWQSP PAR Trip set
-9- CW/CCWQSP Trip set JOG1
-10- CW/CCWTrip set UP DOWN
-11- CW/CCWDC brake UP DOWN
-12- CW/CCWPAR UP DOWN
- 13 - CW/ CCWQSP UP DOWN
-14- CCW/QSPCW/QSPDCbrake JOG1
-15- CCW/QSPCW/QSP PAR JOG1
-16- CCW/QSPCW/QSPJOG1/2/3
-17- CCW/QSPCW/QSP PAR
DC brake
-18- CCW/QSPCW/QSP PAR Trip set
-19- CCW/QSPCW/QSPDCbrake Trip set
-20- CCW/QSPCW/QSPTripset JOG1
-21- CCW/QSPCW/QSP UP DOWN
-22- CCW/QSPCW/QSP UP JOG1
- CW = CW
rotation
- CCW =
CCW
rotation
- DC brake =
DC
injection
brake
- PAR =
Change of
parameter
sets
- JOG= JOG
frequency
- QSP =
Quick stop
- Tr ip - Se t =
Ext er nal
fault
- UP/ DOWN
= Motor
potentiomet
er functions
C008
§
Function relay
K1
-1- -0- Ready for operation
-1- TRIP fault message
-2- Motor is running
-3- Motor is running / CW rotation
-4- Motor is running / CCW rotation
-5- Field frequency f
d
=0
-6- f
dset
reached
-7- Q
min
reached
-8- I
max
reached
-9- Overtemperature (
J
max
-10  C)
-10- TRIPor Q
min
or IMP
