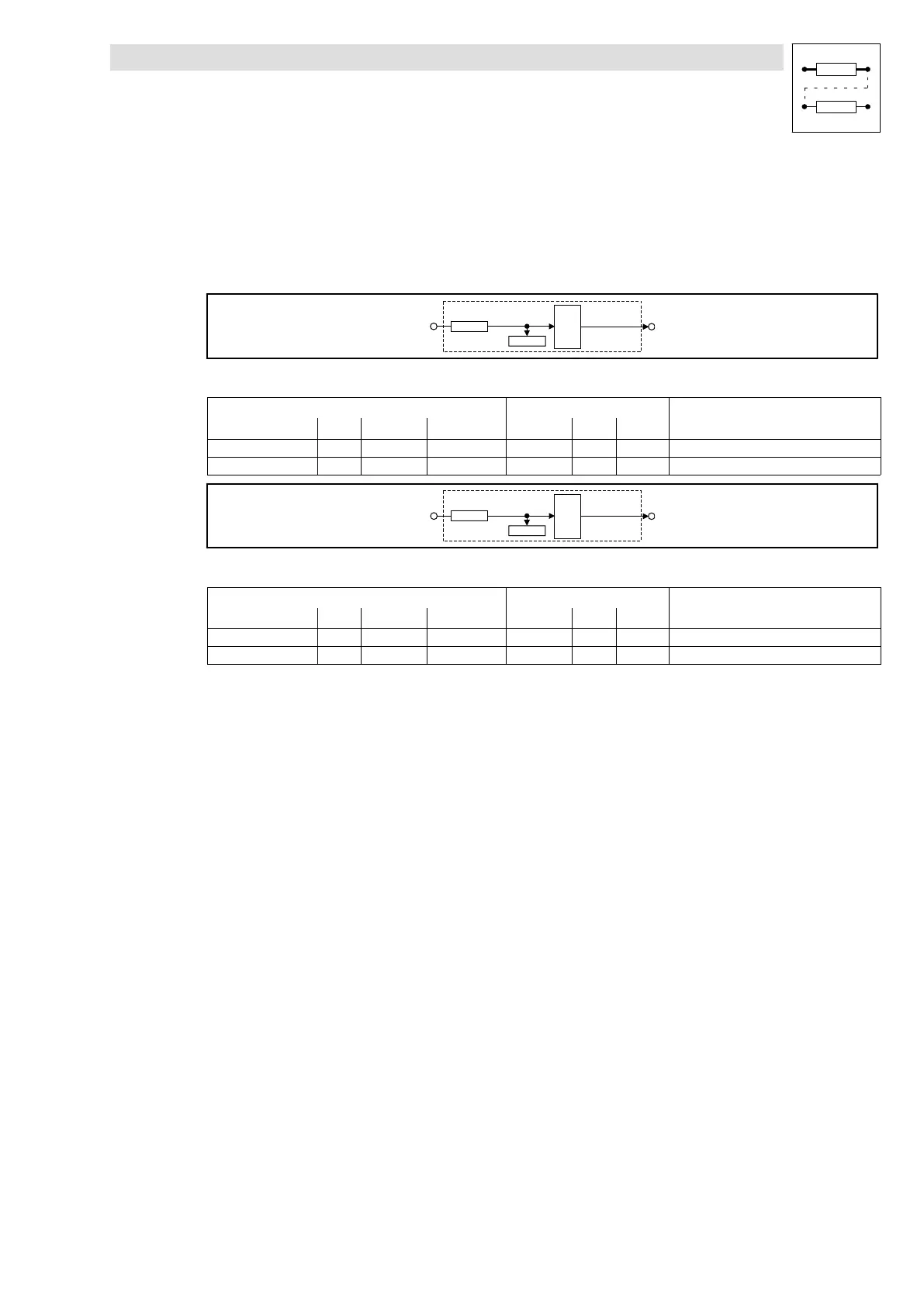

3.5.7 Inverter (ANEG)
Purpose
This FB inverts the sign of an analog signal.
Two inverters are available:
ANEG1
(1)
ANEG1-OUT
ANEG1-IN
C0701
C0700
Fig. 3−56 Inverter (ANEG1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
ANEG1−IN a C0701 dec [%] C0700 1 19523 −
ANEG1−OUT a − − − − − −
ANEG2
(1)
ANEG2-OUT
ANEG2-IN
C0704
C0703
Fig. 3−57 Inverter (ANEG2)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
ANEG2−IN a C0704 dec [%] C0703 1 1000 −
ANEG2−OUT a − − − − − −
Function
The input value is multiplied by −1 and then output again.
