Lenze EVS9323EP

Function library
Positioning control
3.4.1 Dimensions
3−25
l
EDSVS9332P−EXT DE 2.0

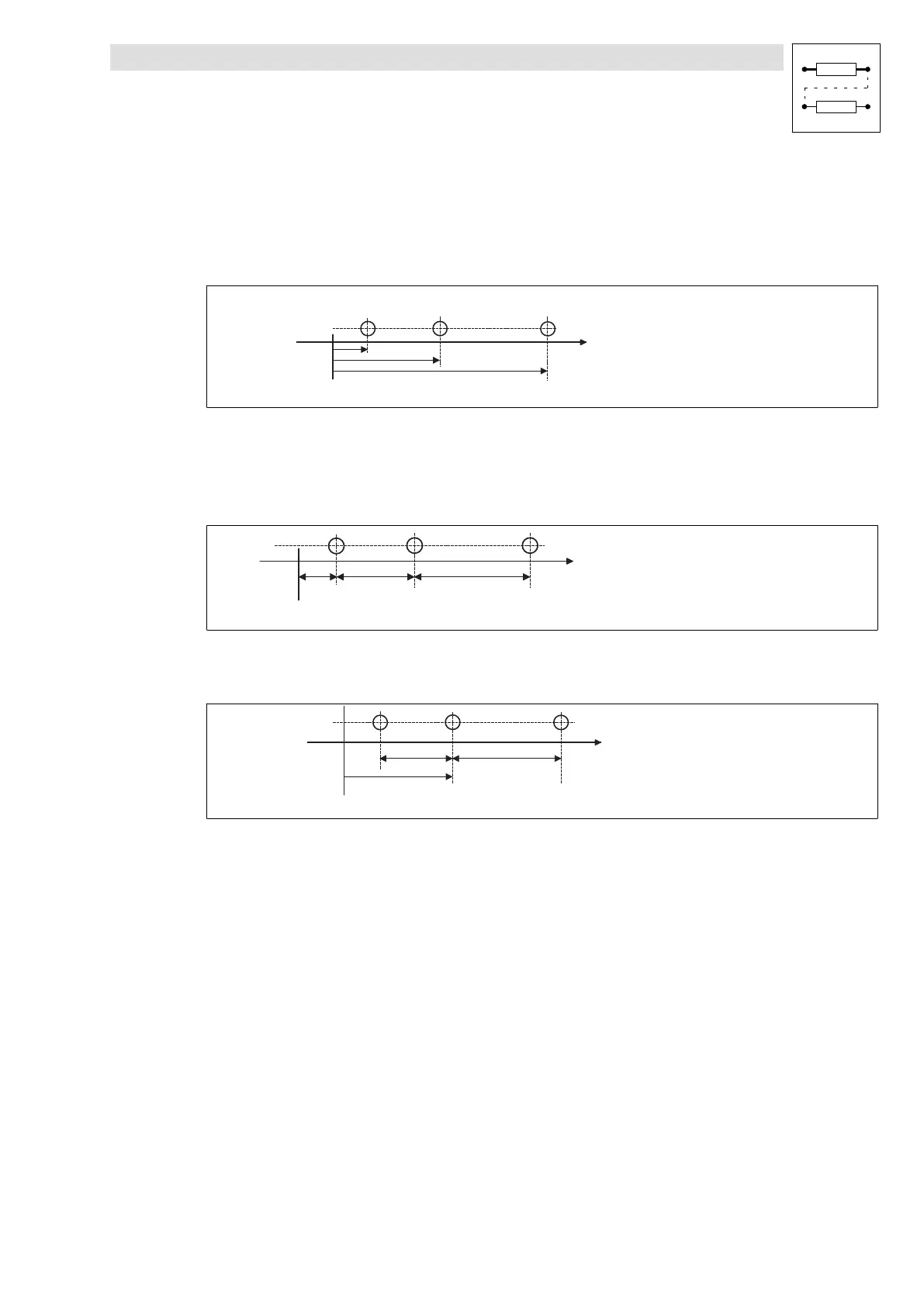

3.4.1 Dimensions
Absolute dimensions
An absolute target position is a defined position on the traversing path with reference to a zero point.
The target position is approached irrespective of the current position.
9300POS020
A b s o l u t e d i m e n s i o n s
x
0 X 1 X 2 X 3
P 1 ( X 1 )
P 2 ( X 2 )
P 3 ( X 3 )
Fig. 3−7 Absolute dimensions
Relative dimensions
Relative dimensioning corresponds to incremental dimensioning. Each new target refers to the
preceding target.
9300POS021
x
0 X 1 X 2 X 3
R e l a t i v e d i m e n s i o n s
( i n c r e m e n t a l d i m e n s i o n s )
Fig. 3−8 Relative dimensions
Mixed dimensions
9300POS022
x
0 X 1 X 2 X 3
M i x e d d i m e n s i o n s
Fig. 3−9 Mixed dimensions
