Lenze EVS9323EP

Function library
Function blocks

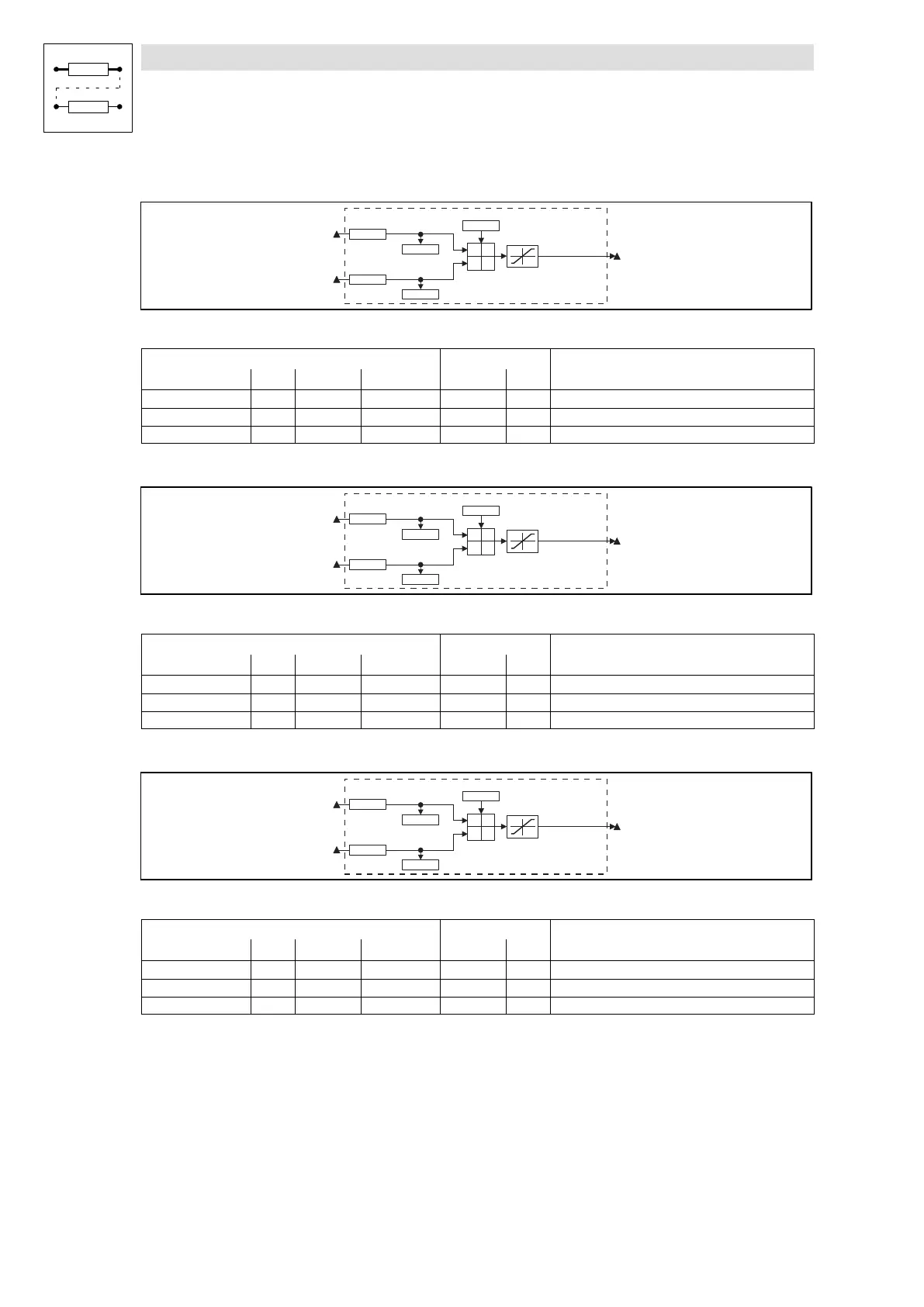

3.5.10 Arithmetic block (ARITPH)
3−112
l
EDSVS9332P−EXT DE 2.0
ARITPH4
+
-
*
/
C1550
x
y
ARITPH4
ARITPH4-OUT
C1552/1
±2 -1
30
C1552/2
ARITPH4-IN1
Mode
ARITPH4-IN2
C1551/1
C1551/2
Fig. 3−66 Function block ARITPH4
Signal
Source Note
Name Type DIS DIS format CFG List
ARITPH4−IN1 ph C1552/1 dec [inc] C1551/1 3 −
ARITPH4−IN2 ph C1552/2 dec [inc] C1551/2 3 −
ARITPH4−OUT ph − − − −
ARITPH5
+
-
*
/
C1555
x
y
ARITPH5
ARITPH5-OUT
C1557/1
±2 -1
30
C1557/2
ARITPH5-IN1
Mode
ARITPH5-IN2
C1556/1
C1556/2
Fig. 3−67 Function block ARITPH5
Signal
Source Note
Name Type DIS DIS format CFG List
ARITPH5−IN1 ph C1557/1 dec [inc] C1556/1 3 −
ARITPH5−IN2 ph C1557/2 dec [inc] C1556/2 3 −
ARITPH5−OUT ph − − − −
ARITPH6
+
-
*
/
C1560
x
y
ARITPH6
ARITPH6-OUT
C1562/1
±2 -1
30
C1562/2
ARITPH6-IN1
Mode
ARITPH6-IN2
C1561/1
C1561/2
Fig. 3−68 Function block ARITPH6
Signal
Source Note
Name Type DIS DIS format CFG List
ARITPH6−IN1 ph C1562/1 dec [inc] C1561/1 3 −
ARITPH6−IN2 ph C1562/2 dec [inc] C1561/2 3 −
ARITPH6−OUT ph − − − −
