Lenze EVS9323EP User Manual

Function library
Function blocks
3.5.13 Holding brake (BRK)
3−128
l
EDSVS9332P−EXT DE 2.0
Purpose
The FB is used to trigger a holding brake.
Possible applications:
l Hoists
l Traversing drives
l Active loads
CTRL
BRK-SET
C0459
BRK-OUT
C0450
C0451
BRK-Nx
C0458/1
BRK-QSP
BRK-M-STORE
BRK-CINH
BRK-M-SET
C0452
BRK-SIGN
C0458/1
SIGN
t
0
t
0
CINH
MCTRL-NACT
MCTRL-MACT
C0195
C0196
C0244
BRK
MCTRL-NSET2

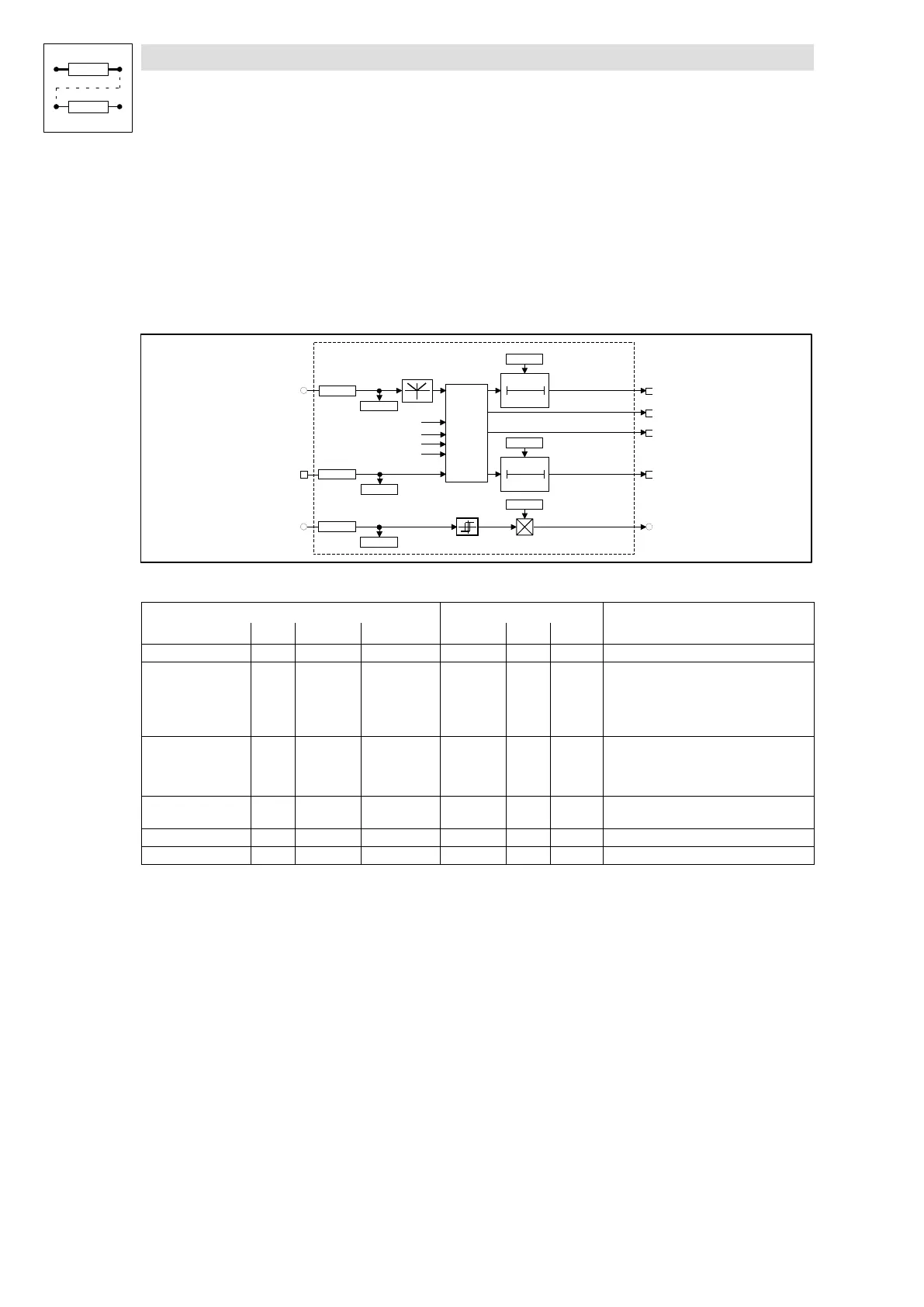

Fig. 3−80 Holding brake (BRK)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
BRK−SET d C0459 bin C0451 2 1000 −
BRK−NX a C0458/1 dec [%] C0450 1 1000 Speed threshold from which the drive may
output the signal "Close brake". The signal
source for this input can be a control code,
a fixed value, or any other analog FB
output.
BRK−SIGN a C0458/2 dec [%] C0452 1 1000 Direction of the torque with which the drive
is to set up a torque against the brake. The
signal source for this input can be a control
code, a fixed value, or any other FB output.
BRK−M−SET a − dec [%] C0244 − 0.00 Holding torque of the DC injection brake
100 % = value of C0057
BRK−T−ACT a − dec C0195 − 99.9 Brake application time
BRK−T−RELEASE a − dec C0196 − 0.0 Brake release time
Function
The signals N−ACT, M−ACT, N−SET and BRK−Nx are processed as absolute values within the function
block.
