Function library
Function blocks
3−147
l
EDSVS9332P−EXT DE 2.0
CONVAD2-IN
CONVAD2
C1582
C1583
CONVAD2.B0
CONVAD2.B1
CONVAD2.B2
CONVAD2.B3
CONVAD2.B4
CONVAD2.B5
CONVAD2.B6
CONVAD2.B7
CONVAD2.B8
CONVAD2.B9
CONVAD2.B10
2
0
2
1
2
2
2
3
2
4
2
5
2
6
2
7
2
8
2
9
2
10
CONVAD2.B11
2
11
CONVAD2.B12
2
12
CONVAD2.B13
2
13
CONVAD2.B14
2
14
CONVAD2-SIGN
2
15

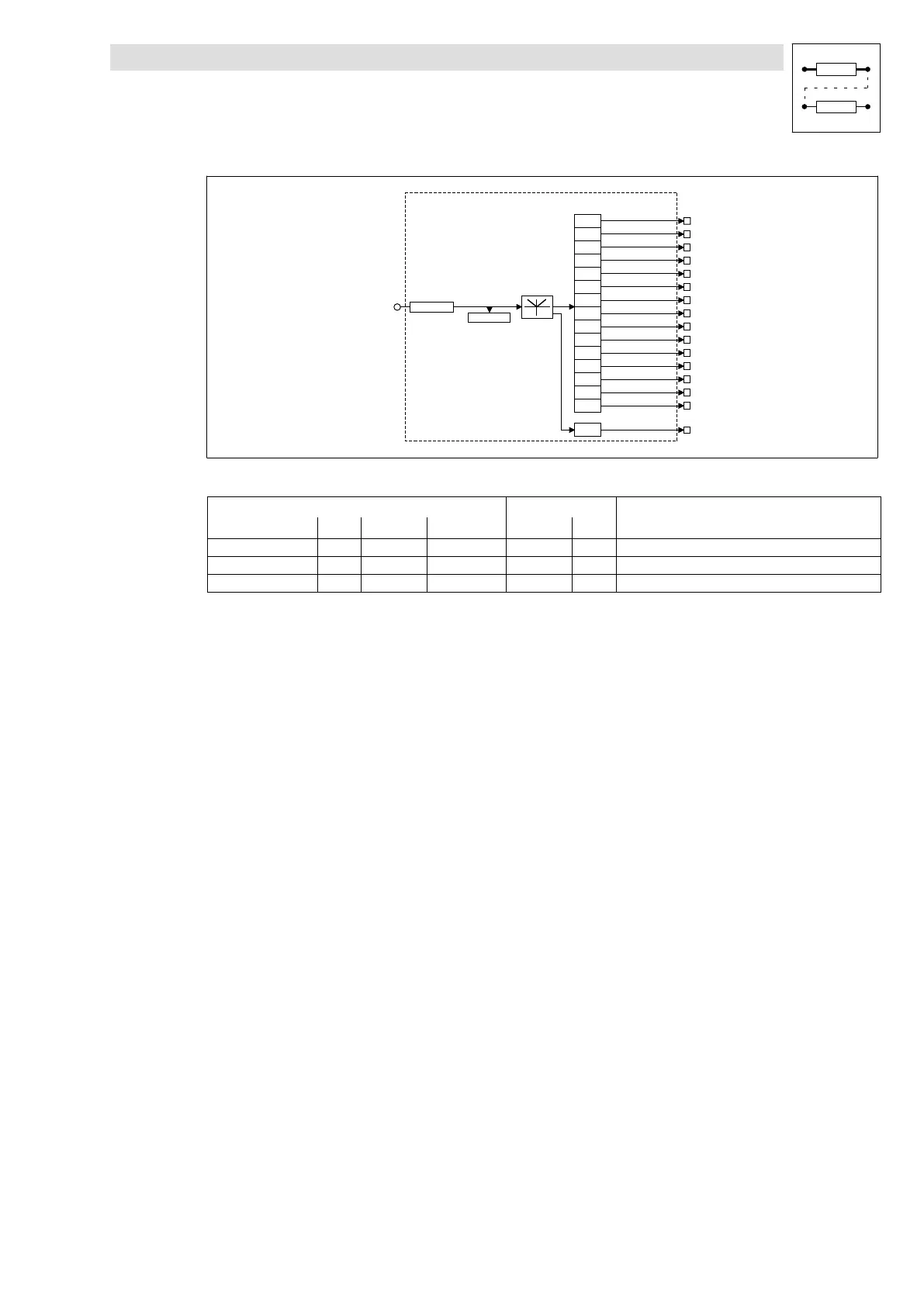

Fig. 3−101 Analog/digital converter (CONVAD2)
Signal
Source Note
Name Type DIS DIS format CFG List
CONVAD2IN a C1583 dec C1582 1 −
CONVAD2.B0 ... B14 d − − − − −
CONVAD2−SIGN d − − − − Sign digit
Function
l Represents the analog value as 16−bit binary word.
l Every binary digit is assigned to a digital output.
l The 16th bit (2
15
) is the sign digit indicating whether it is a positive or negative analog value.
