Lenze EVS9323EP User Manual

Function library
Function blocks

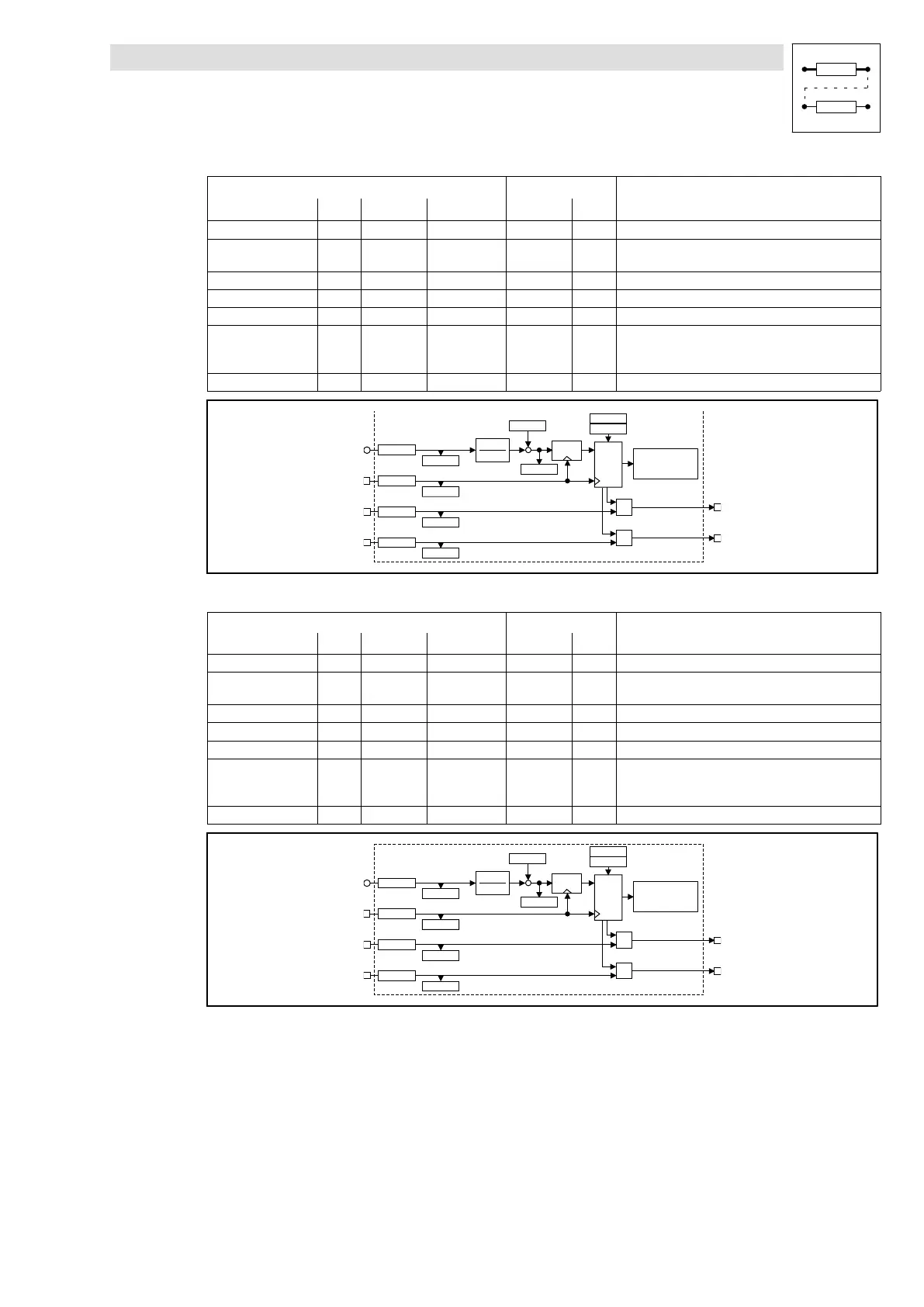

3.5.39 Freely assignable input variables (FEVAN)
3−197
l
EDSVS9332P−EXT DE 2.0
Signal
Source Note
Name Type DIS DIS format CFG List
FEVAN4−IN a C1528 dec C1526 1 Input value
FEVAN4−LOAD d C1529/1 bin C1527/1 2 A LOW−HIGH edge transmits the converted signal to the
target code.
FEVAN4−BUSY−IN d C1529/2 bin C1527/2 2 HIGH = transmitting
FEVAN4−FAIL−IN d C1529/3 bin C1527/3 2 HIGH = transmission failed
FEVAN4−BUSY d − − − − HIGH = transmitting
FEVAN4−FAIL d − − − − HIGH = transmission failed
A LOW−HIGH edge at FEFAN4−LOAD sets FEFAN4−FAIL
= LOW.
− − C1520 − − − Display of the converted signal
FEVAN5-IN
C1538
C1536
C1533
C1534
CTRL
+
+
C1535
S&H
C1539/1
FEVAN5-LOAD
C1537/1
C1530
Code/Subcode
(Cxxxx/yy)
C1532
C1531
FEVAN5-BUSY
FEVAN5
³
1
C1539/2
FEVAN5-BUSY-IN
C1537/2
³
1
C1539/3
FEVAN5-FAIL-IN
C1537/3
FEVAN5-FAIL
Fig. 3−149 Freely assignable input variables (FEVAN5)
Signal
Source Note
Name Type DIS DIS format CFG List
FEVAN5−IN a C1538 dec C1536 1 Input value
FEVAN5−LOAD d C1539/1 bin C1537/1 2 A LOW−HIGH edge transmits the converted signal to the
target code.
FEVAN5−BUSY−IN d C1539/2 bin C1537/2 2 HIGH = transmitting
FEVAN5−FAIL−IN d C1539/3 bin C1537/3 2 HIGH = transmission failed
FEVAN5−BUSY d − − − − HIGH = transmitting
FEVAN5−FAIL d − − − − HIGH = transmission failed
A LOW−HIGH edge at FEFAN5−LOAD sets FEFAN5−FAIL
= LOW.
− − C1530 − − − Display of the converted signal
FEVAN6-IN
C1548
C1546
C1543
C1544
CTRL
+
+
C1545
S&H
C1549/1
FEVAN6-LOAD
C1547/1
C1540
Code/Subcode
(Cxxxx/yy)
C1542
C1541
FEVAN6-BUSY
FEVAN6
³
1
C1549/2
FEVAN6-BUSY-IN
C1547/2
³
1
C1549/3
FEVAN6-FAIL-IN
C1547/3
FEVAN6-FAIL
Fig. 3−150 Freely assignable input variables (FEVAN6)
